MKM - UNI Portal 50/15 RODE-CNC-MKM-2008-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Holzbearbeitung
- ➤ Used MKM UNI Portal 50/15 RO - For Sale | gindumac.com

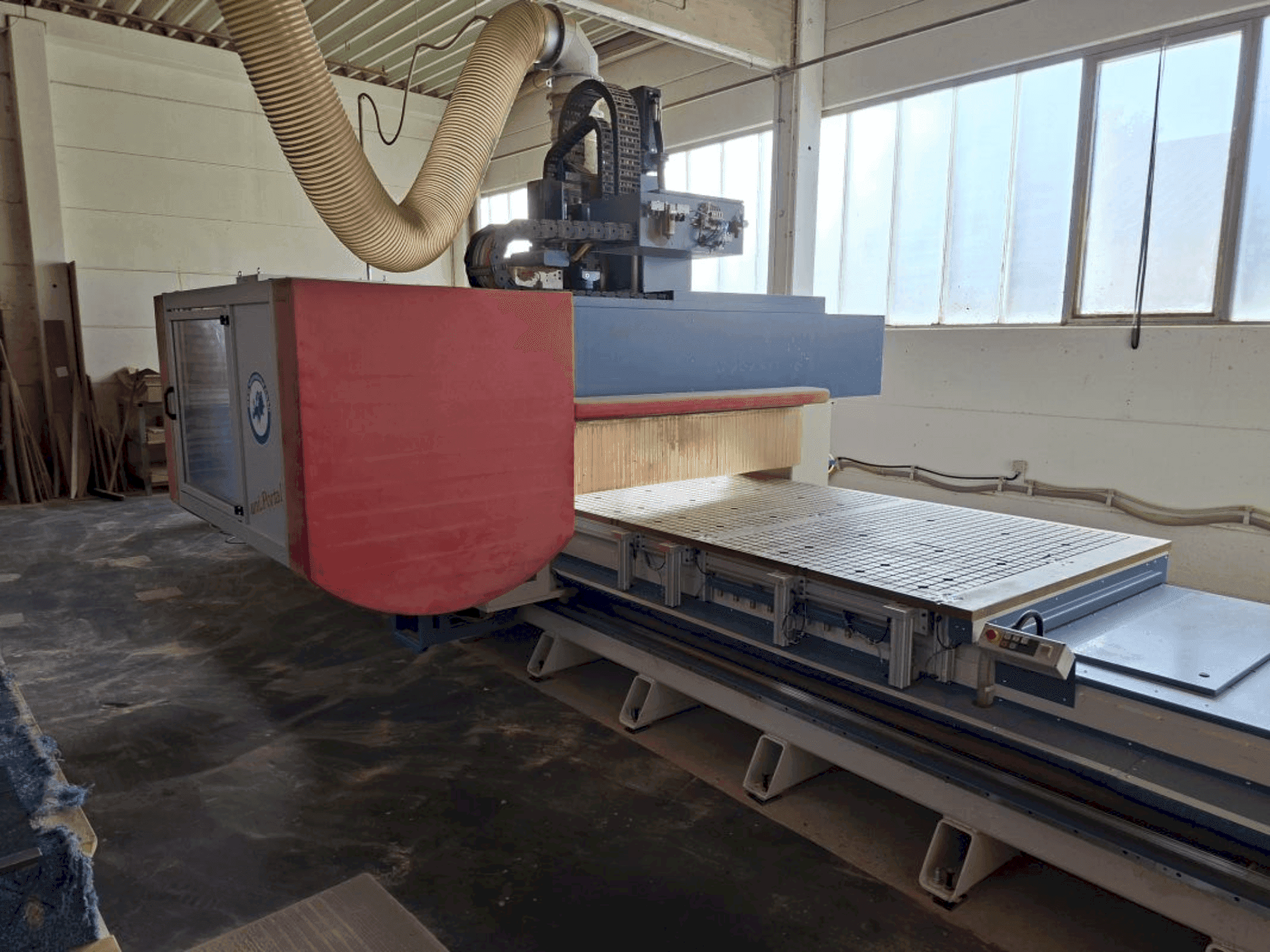

This 5-axis MKM UNI Portal 50/15 RO was manufactured in 2008, designed for versatile machining of wood, plastics, and light metals. It features a large working area with dimensions of 5000mm x 1500mm, and a clearance height of 200mm. The machine includes a high-performance electric spindle with HSK 63 F connection and a 12-position automatic tool change magazine. Ideal for complex, multi-axis operations. If you are looking to get high-quality milling capabilities consider the MKM UNI Portal 50/15 RO machine we have for sale. Contact us for more information.
Übersicht
- Hersteller: MKM
- jahr: 2008
- MODELL: UNI Portal 50/15 RO
- anwendungstyp: CNC-Bearbeitung
- Standort: Deutschland
- maschinentyp: CNC-Holzbearbeitungszentrum
Technische Daten - MKM UNI Portal 50/15 RO
Bewegung
- Anzahl der Achsen: 5
Zusätzliche Informationen
Additional equipment
- Central Lubrication
- Vacuum Supply: 1 vacuum pump (Busch-Mink)
- Output approx. 250 m3/h
- 1 unit for manual operation (emergency stop, feed, hood open/close)
- Protective Fencing
- Remote Diagnosis Available
Machine Benefits
Qualitative Machine Benefits
- Machining unit for aluminum or aluminum alloys, all types of plastics, synthetic resin, resins for metal, wood, graphite for electroerosion, glass, and/or carbon fibers
Technical Machine Benefits
- Machining for: wood, plastics, light metals, stairs, doors, frames
- 4 zero points (stops) at the front left 2x and right 2x for alternating loading
- 8 pneumatic stops permanently integrated in the front part of the table
- A-axis: +/- 95°
- C-axis: +/- 210° (total 420°)
- Polar axis speed in continuous operation: 200°/sec
- Positioning accuracy of polar axes: +/-0. 02 mm
Extra Information
Tools Electric Spindle: HSK 63 F connection Automatic tool change with air cylinder Power approx. 12 kW in S1 operation (peak power = 22 kW) Spindle Speed: 24000 rpm Liquid circulation cooling integrated Integrated chip extraction Simple and quick replacement of the electric spindle Tool Change Magazine: 1 automatic tool change magazine for 12 positions (plate changer) moving in the X direction Additional Tool Position: 1 piece, as pick-up position for e.g. adapter with saw blade (max. Ø 350 mm) 1 Piece Drilling Unit, 10-Spindle: 6 spindles vertical in X direction 4 spindles vertical in Y direction
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
