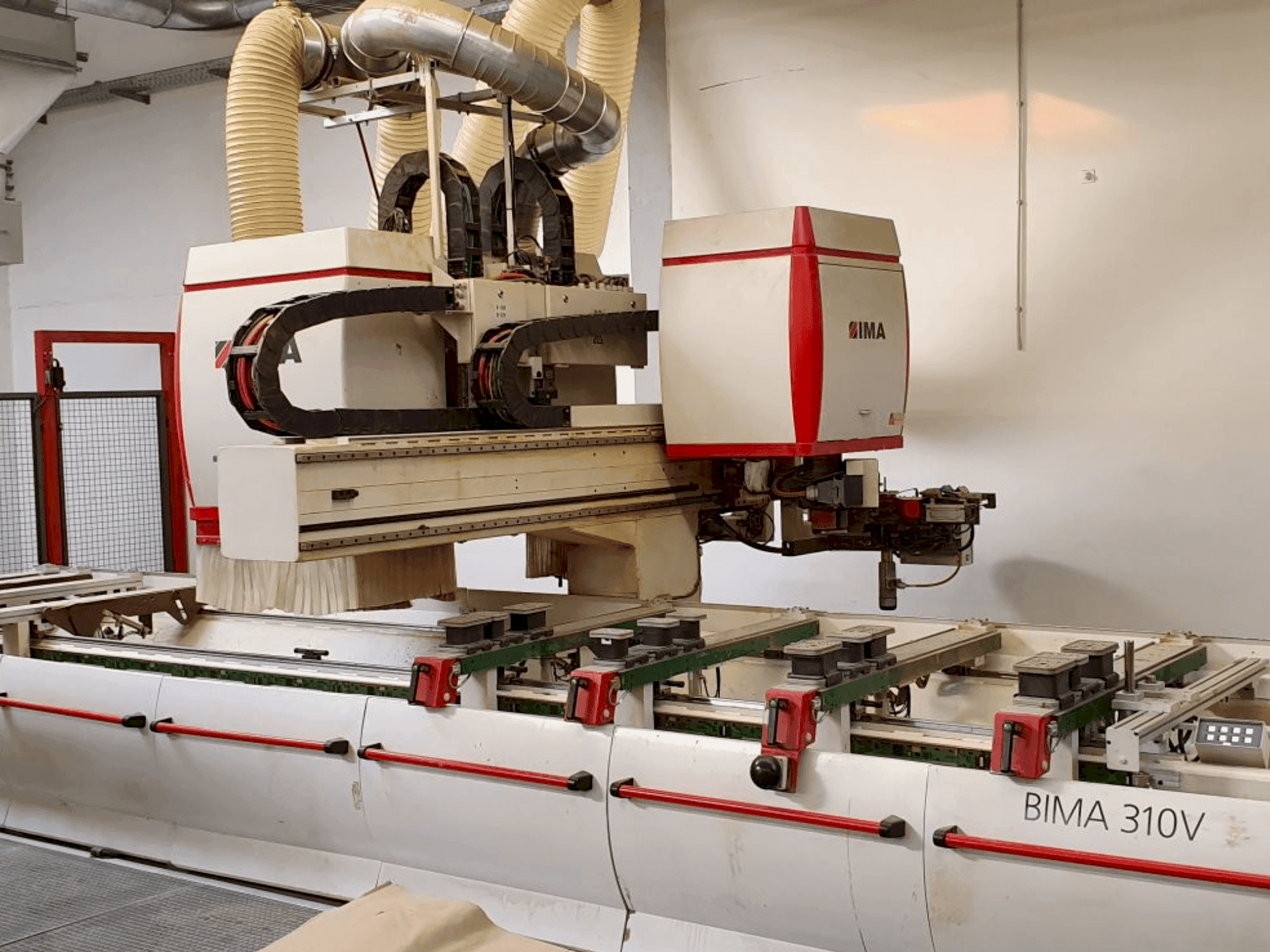

This woodworking machine was manufactured in 2004. It features a robust 12 kW main spindle with a programmable speed range of 1500-24000 rpm and a tool holder HSK F63. The machine table includes 6 support arms and sets of suction plates, adjustable for various workpiece sizes. Additionally, it boasts a 100 m/min rapid traverse on the X-axis and an 18-fold tool change magazine. For more information about this woodworking machine, please reach out to us.
Übersicht
- Hersteller: IMA
- jahr: 2004
- MODELL: BIMA 310V 120/600
- anwendungstyp: CNC-Bearbeitung
- Standort: Deutschland
- maschinentyp: CNC-Holzbearbeitungszentrum
Technische Daten - IMA BIMA 310V 120/600
Bewegung
- C-Achse: 360°
- X-Achsverfahrweg: 6000 mm
- Y-Achsverfahrweg: 1300 mm
- Z-Achsverfahrweg: 100 mm
Technische Spezifikation
- Anzahl der Werkzeuge: 18
- Spindelleistung: 12 kW
- Spindeldrehzahl: 24000 RPM
Zusätzliche Informationen
Machine Benefits
Qualitative Machine Benefits
- Precision in machining with programmable spindle speeds and directions.
- Enhanced flexibility with adjustable machine table and support arms for various workpiece sizes.
- Drive: frequency-controlled three-phase motor
- Direction of rotation: right/left, programmable
- Tool feed: automatic
- Max. Clamping height from upper edge of suction plate z1: 100 mm
- Max. Workpiece thickness z2: depends on equipment/application
Technical Machine Benefits
- Pull-in force: 11000 n
- High-speed and precision machining with rapid traverse rates.
- Versatile tool handling with an 18-fold tool change magazine and programmable spindle.
- Efficient cooling and lubrication systems enhance spindle longevity and performance.
- Central connection for extraction
- Vacuum pump: 100 m3/h
- Tool coding: place-coded
- Air pressure: 6 bar
- Machine table:6 support arms, adjustable in x-direction stops: rear and middle, all program-controlled suction plates: 6 sets, total of 12 suction plates alternating field area details for pendulum machining
- Spindle cooling: water cooling, spindle lubrication: unique factory grease lubrication
