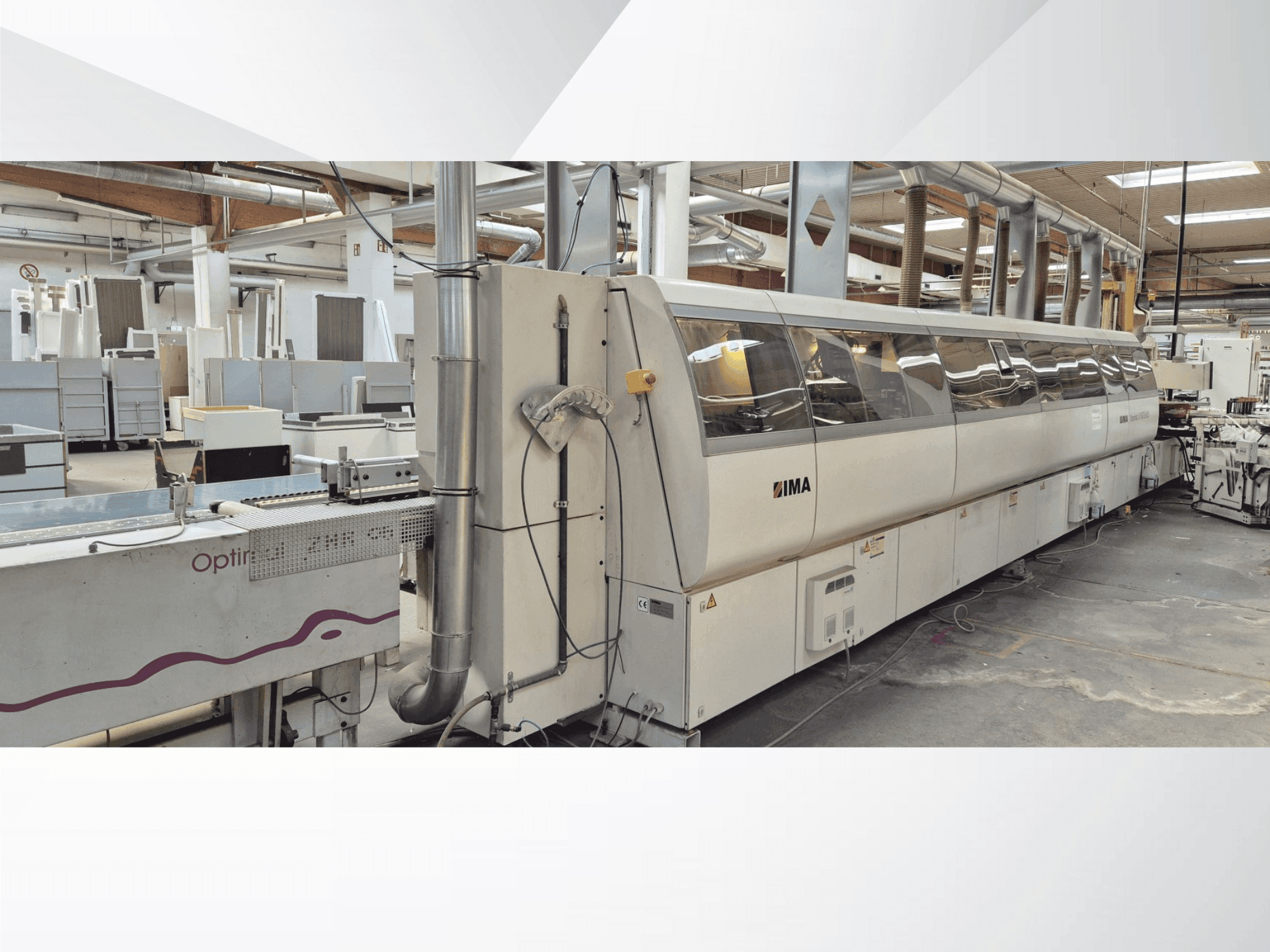

IMA - Novimat Systems I/R75/1000DE-EDG-IMA-2005-00002

Machine Benefits

Technical Machine Benefits

• Feed speed: 5-25 m/min, frequency-controlled
• Stop ruler with electronic positioning control / jointing milling unit with 2 motors, each 4. 5 kw, 9000 rpm, controllable / infrared heater, approx. 300 mm long, 2 x 1. 5 kw
• Release agent application top and bottom / gluing unit with glue application and pneumatic quick-lock system / automatic pu melting system “quickmelt” for 2 kg cartridge containers / 32-position edge magazine (8 tracks up to 3 mm / 24 tracks up to 1. 3 mm) / vertical roll holder for 32 rolls, max. Diameter 850 mm / end trimming unit on top pressure beam with 2 motors, each 200 w, 400 v, 12000 rpm / milling unit with 2 motors, each 1000 w, 400 v, 200 hz, 12000 rpm / multi-functional processing unit for chamfering or radius milling / 2 motors, each 660 w, 400 v, 200 hz, 12000 rpm/ multi-profile scraper unit with stepper motor axes / flat scraper unit with electro-pneumatic disengagement mechanism / copy buffing unit with 4 buffing motors, each 250 w / buffing unit with 2 lower and 2 upper motors, each 180 w, 1400 rpm / smoothing unit for pvc/abs edges
• Workpiece return system lgimatech zhr 05/l/145 / inclined air cushion table, 2 return belts with bottom brushing units
