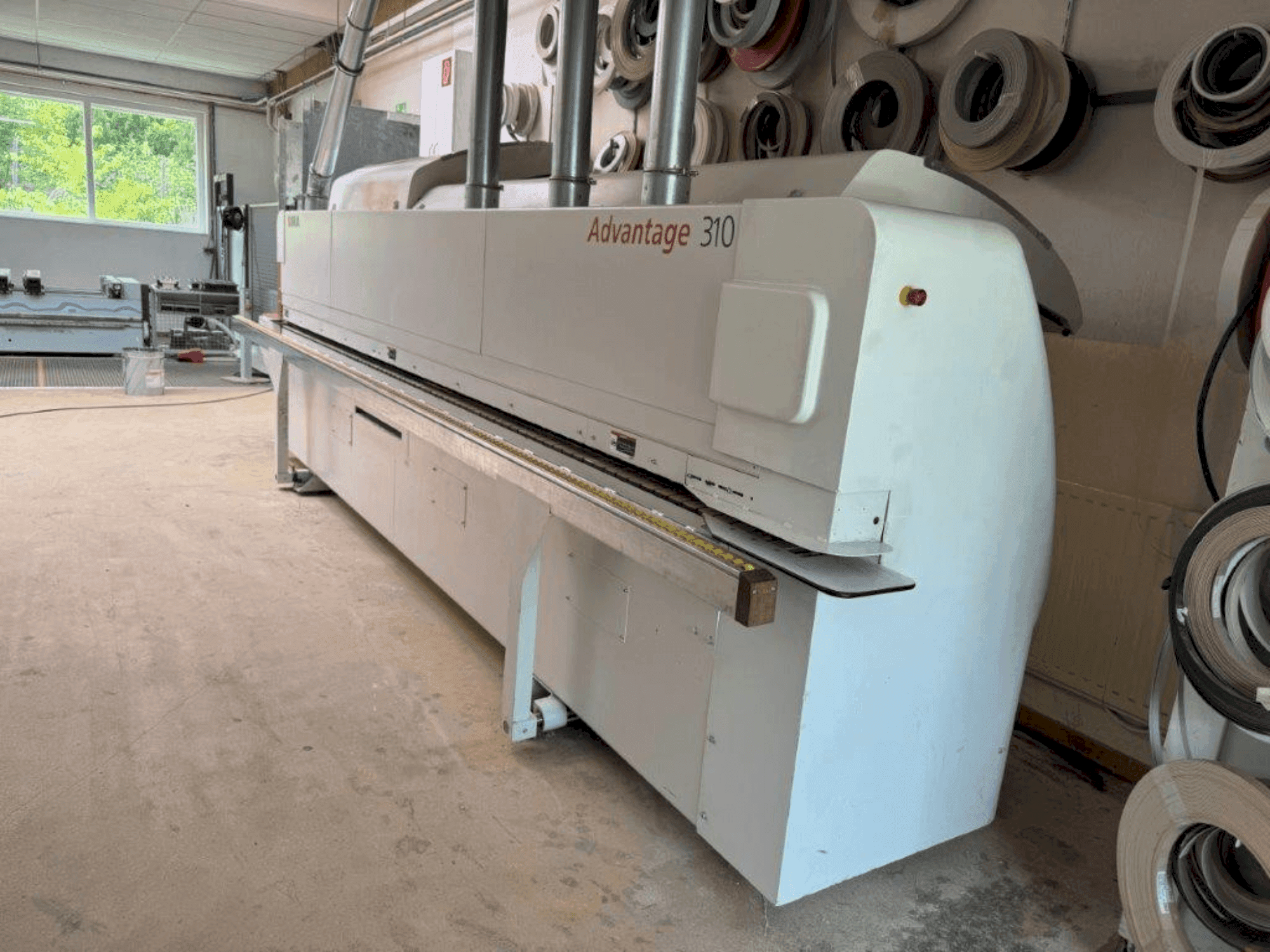

IMA - ADVANTAGE 310DE-EDG-IMA-2010-00001

Machine Benefits

Technical Machine Benefits

• Minimum workpiece length: 150 mm
• Minimum workpiece width: 65 mm (with max thickness of 25 mm), 150 mm
• Workpiece thickness: min. 8 mm, 12 mm with profile scraper blades; max. 40 mm (mfa 08346), 60 mm (skf)
• Smallest workpiece: 65 x 300 mm / 150 x 150 x 19 mm
• Machining allowance per workpiece edge: 0 - 5 mm
• Workpiece shape: rectangular
• Material: chipboard, mdf
• Surface material: direct coating (melamine resin paper), paper, foil, veneer

Extra Information

Edging Material Roll material without foil: Paper edges & plastic edges: 0.3 - 3.0 mm Veneer edges: 0.5 - 3.0 mm Max. edge cross-section: 150 - 180 mm² Cut-to-length edge strips: Strips: 3.0 - 8.0 mm Max. strip cross-section: 520 mm² Edge height: Min. 12 mm, max. 65 mm Max. upper edge overhang: 2 mm Edge profiles: Paper edge: Approx. 0.4 mm, bevel 15° Plastic edge up to 3.0 mm, depending on radius tool Milling strip flush up to 8 mm Machine Constant workpiece projection from the chain track: 35 mm + edge thickness Max. cutting cross-section: 520 mm² Passage width: Min. 65 mm (with 35 mm projection) Min. workpiece length in feed direction: 150 mm Basic height (top edge of chain track): 940 mm Aggregate side: Left in feed direction Pneumatic connection: Approx. 7 - 8 bar Joining Unit 08.379 and Blow Nozzle 2 motors 4 kW each, 9000 rpm Gluing Unit 283.1513 Glue dispenser 0.8 l, 60 mm high Suitable for hot melt or PU glue With single roller/strip magazine, roller diameter 800 mm 3 main pressure rollers and 3 pressure rollers Cutting Unit 08.415 Pneumatically swivels to 0° or 8 2 motors, 12,000 rpm 2 HM cross-cut saw blades Copy Trimming Unit SKF-L 4 motors, 12,000 rpm Profile length in throughfeed direction: Max. approx. 50 mm Workpiece thickness: Max. 60 mm Working speed: Max. approx. 20 m/min Distance between 2 workpieces: Min. approx. 400 mm Profile Scraper Unit 08.519 For rescraping an upper and lower milled quarter circle profile Self-Scanning Scraper Unit 08.521 For removing hot melt adhesive residue from the edge area of the top and bottom of workpieces Buffing Unit 08.617-2 Upper and lower motor: 180 W, 1400 rpm 2 polishing wheels 50 x 160 x 19 mm
