- ➤ Used IMA Combima Systems / I/R751220/R3 | Edgebander

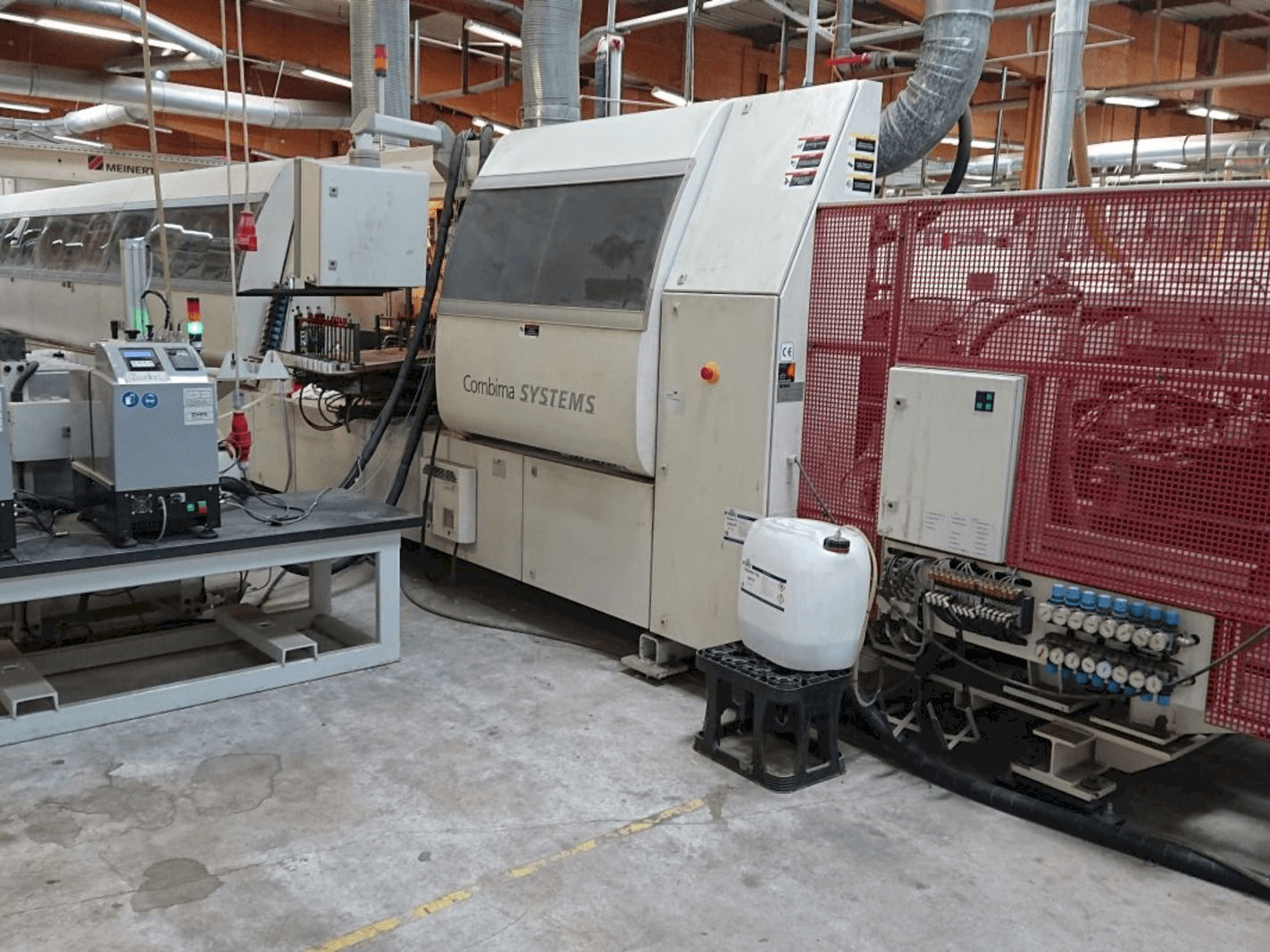

This edgebander was manufactured in 2005. It is a single-sided combination machine ideal for formatting, edge gluing, and finishing panel-shaped workpieces made of wood or wood-based materials. Features include an automatic insertion table, NC insertion system, and a 12-compartment edge magazine for roll material up to 3 mm thick. It also boasts a variable feed speed of 5-25 m/min and a PC control ICOS open system. For more information about this edgebander, please reach out to us.
Übersicht
- Hersteller: IMA
- jahr: 2005
- MODELL: Combima Systems / I/R751220/R3
- anwendungstyp: Kantenanleimen
- Standort: Deutschland
- maschinentyp: Kantenanleimmaschine
Zusätzliche Informationen
Additional equipment
- Automatic insertion table
- Agregado KFA Return
- NC insertion system
- Inclined roller table as inlet section
- Additional stop ruler, adjustable via NC axis
- Agregado double 08.376
- Radiator 300 lg, 2x1.5 kW
- Multiple profile/bevel unit
- Contour milling unit KFA 30
- Multiple profile scraper unit
Machine Benefits
Qualitative Machine Benefits
- Cutting unit: 08. 42, for 2 motors
- Milling/profile milling/grooving units: two units, each with 1 motor, 100 hz, 6000 rpm and 600 rpm respectively
- Motor shaft for hydro-format tool system
- Return system: meinert brand
- Flat scraper blade 08. 517
- Copy buffing unit 08. 604
- Buffing unit 08. 617-2
- Double base 75,184 1050 mm high level
- Precision in edge processing with multiple units for cutting, milling, and buffing
- High-quality glue application system for straight edges
Technical Machine Benefits
- Workpiece amplification: min. 238 mm, max. 2350 mm
- Workpiece width: min. 142 mm, max. 800 mm
- Workpiece thickness: min. 8 mm, max. 40 mm
- Edge height: min. 14 mm, max. 45 mm
- Edge thickness: 0. 3 - 3. 0 mm
- Feed speed: 5-25 m/min
- Glue specification for workpiece thickness: max. 50mm
- Pre-melting containers for pu glue: 2
- Edge magazine: 12-compartment for roll material 0. 3-3 mm thick
- Roll holder vertical: max. Roll diameter 850 mm, max. Edge height 45 mm
Extra Information
Machine still under power. The machine is designed for single-sided combination processing including formatting, edge gluing, and edge finishing of wood or wood-based panel-shaped workpieces. It is specifically tailored for the production of strand goods in the second run.
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
