- ➤ Used IMA Novimat Concept / I / G80 / 440 / R3 For Sale

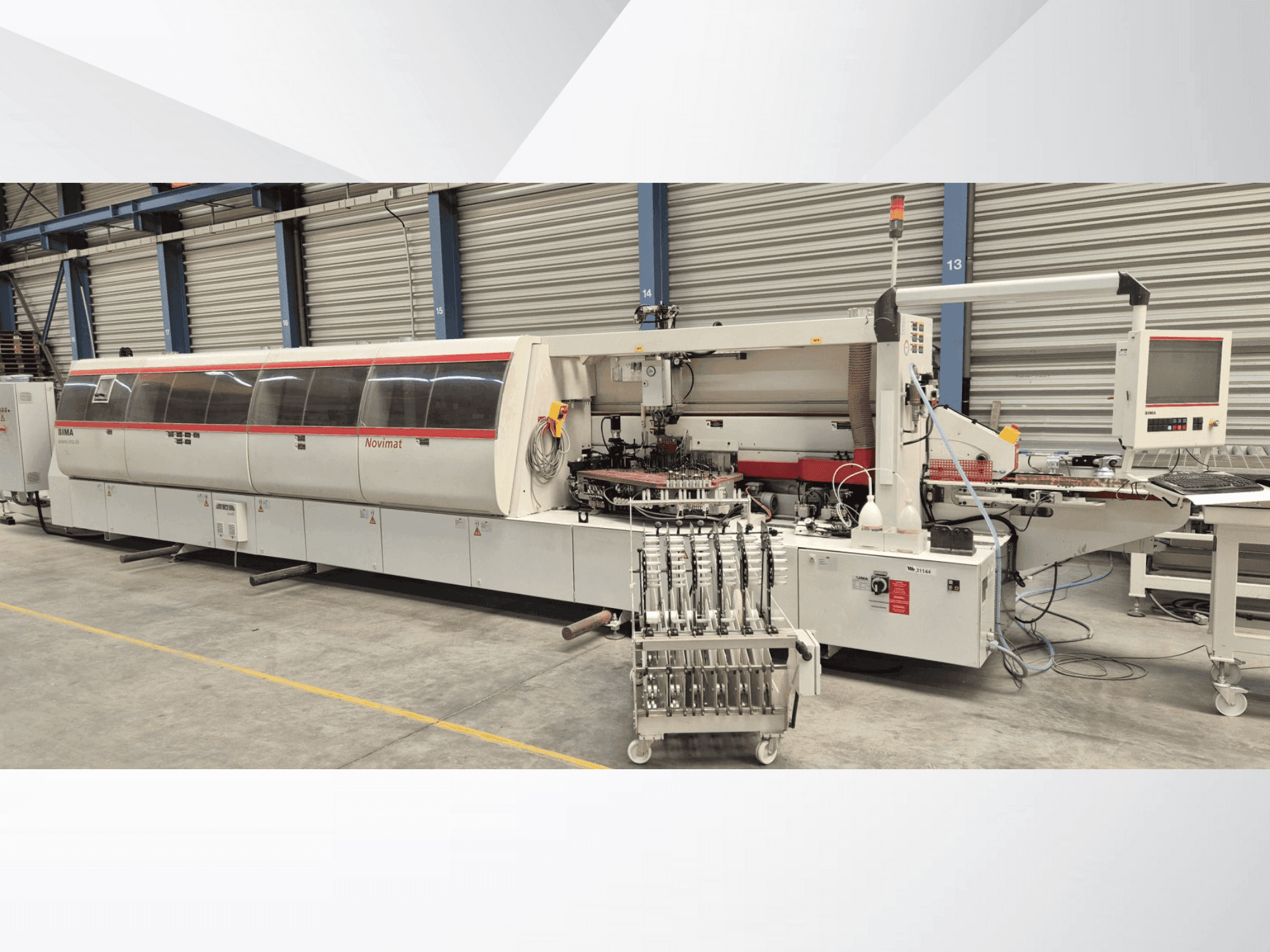

This IMA Novimat Concept / I / G80 / 440 / R3 edgebander was manufactured in 2012. It features a robust automatic edge banding and post-processing system, including a workpiece returning system for enhanced productivity. Capable of handling edge materials from 0.3 mm to 3 mm and workpiece thicknesses up to 60 mm. Equipped with a pneumatic quick-lock system and electronic temperature control for precise glue application. Consider the opportunity to buy this IMA Novimat Concept / I / G80 / 440 / R3 edgebander. Contact us for more information.
Übersicht
- Hersteller: IMA
- jahr: 2012
- MODELL: Novimat Concept / I / G80 / 440 / R3
- anwendungstyp: Kantenanleimen
- Standort: Deutschland
- maschinentyp: Kantenanleimmaschine
Zusätzliche Informationen
Additional equipment
- Joint Milling Unit: 2 motors, each 4.0 kW, 8800 RPM
- Heater: Preheats workpiece edges up to 60 mm
- Glue Application: Handles edges up to 3 mm
- End Trimming Unit: 2 motors, 660 kW
- Additional Units: Milling, Multi-Profile Milling, Contour Milling, Multi-Profile Scraper, and Scraper Units; Buffing Unit
- Automatic Quickmelt hot glue feeder
- Board Return System with powered roller conveyors, cross conveyor, transport belt, angle transfer, air-cushion tables, and safety fence
Machine Benefits
Technical Machine Benefits
- Minimum workpiece length: 150 mm / minimum workpiece width: 65 mm / minimum workpiece thickness: 8 mm / maximum workpiece thickness: 60 mm / smallest workpiece: 150 mm x 150 mm or 65 mm x 300 mm
Extra Information
This machine is configured for efficient edge banding and post-processing with a robust set of features and support for various workpiece sizes. It is immediately available for production use.
