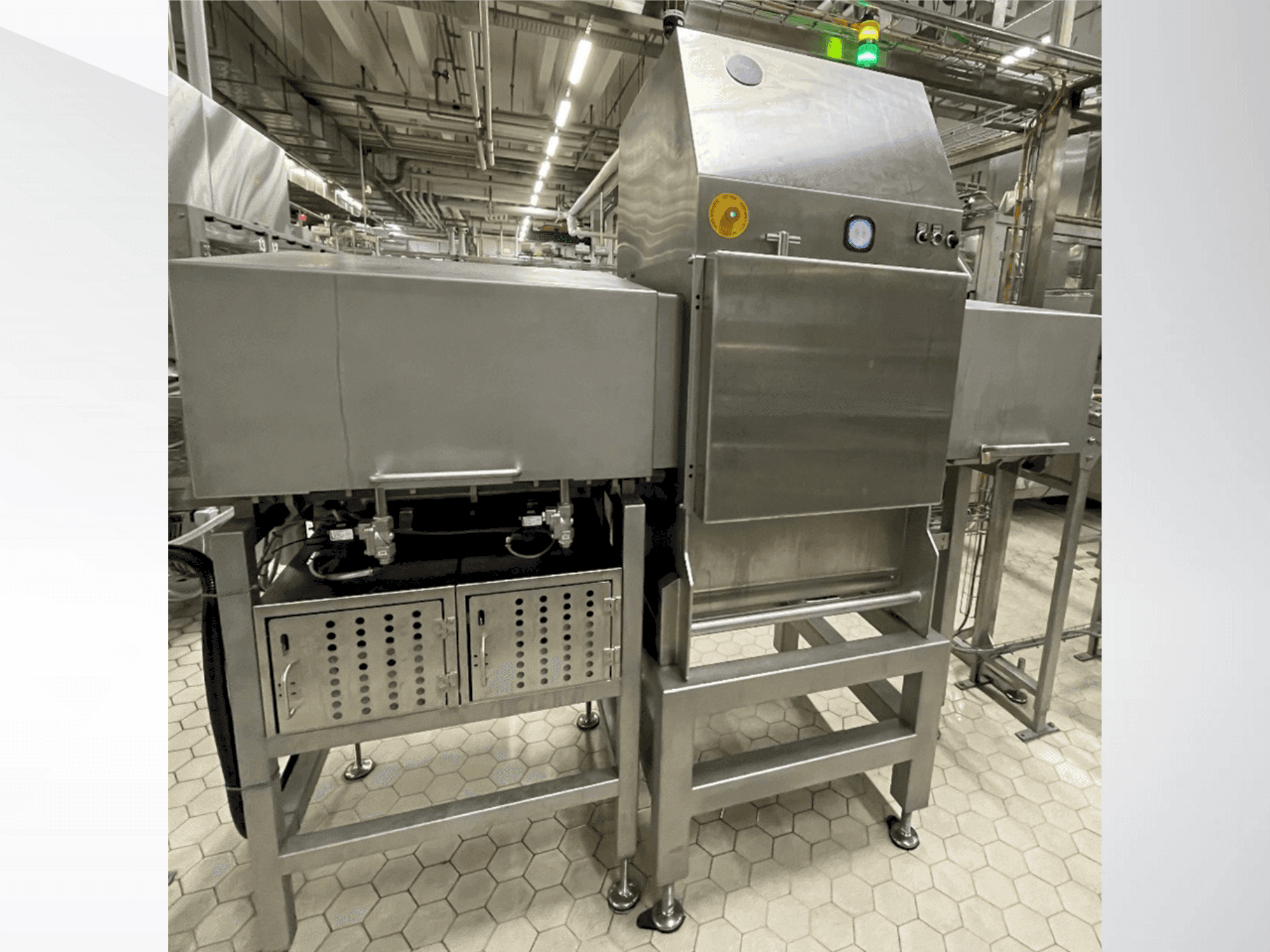

WIPOTEC - SC 30DE-OTH-WIP-2023-00001

Additional equipment

• Material: Stainless steel / Mains voltage connection: 230VAC / 50/60Hz/ 1Ph I - approximately 2.4 kVA I - approximately 10 A via separate fused supply line / Temperature range: +5 to +35°C, standard; optional 40°C / General protection class: IP 65 (except switch cabinet door due to cooling) X-ray Technology

Machine Benefits

Technical Machine Benefits

• Speed on customer side: 48 meters per minute/ scan width: 320 mm/ output: minimum 190 pieces per minute, maximum 240 pieces per minute / total length of the system: approximately 2310 mm/ working height: special working height 1027 mm, infinitely adjustable/ working direction: left - right/ sorting method: pneumatic pusher/ sorting direction: against operator side/ operating language: german
• X-ray tube: industrial high-performance x-ray unit / power: max 200 w (80 kv, 3 ma, continuously adjustable)
• Intuitive touchscreen operation / display of all current relevant production data / extensive graphical/numerical displays of production data / high-precision image analysis software uxs for detecting foreign objects
• Intuitive touchscreen operation display of all current relevant production data extensive graphical/numerical displays of production data / high-precision image analysis software uxs for detecting foreign objects

Extra Information

3 units available that are basically brand new, never been put into operation
