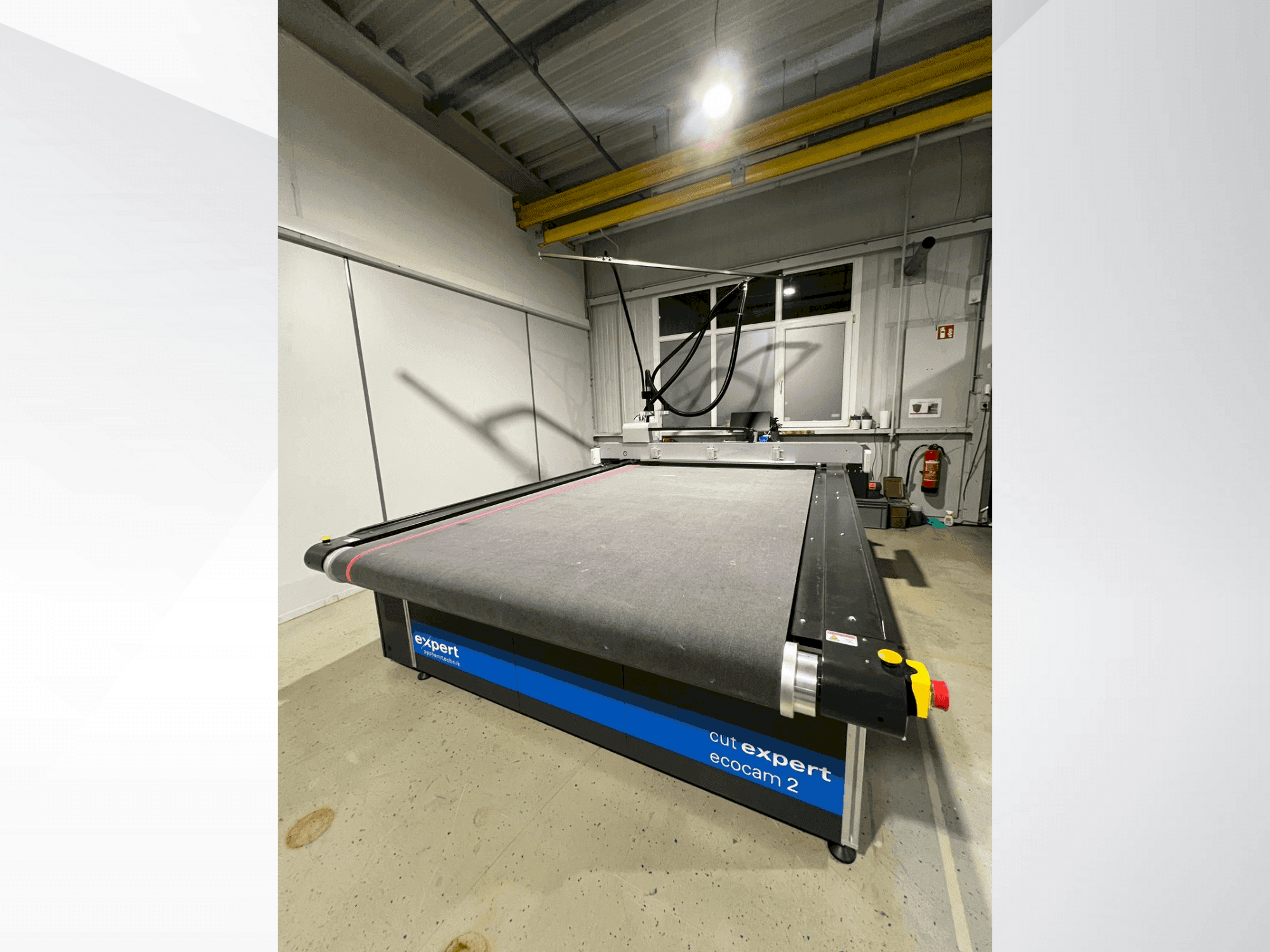

EXPERT - cut Expert ecocam 2DE-OTH-EXP-2024-00001

Machine Benefits

Technical Machine Benefits

• Positioning speed: 90 m/min / cutting height: standard: up to 50 mm / special version: up to 100 mm / repeat accuracy: ±0. 25 mm / precision: 0. 1 mm
• Material layers: single layers or low layers
• Electrical requirements: operating voltage: 400 vac, 50/60 hz / current: 63-125 a / control: pc-based nc software / compressed air: standard: 6. 0 bar / 200 l/min / for pneumatic knives: 8. 5 bar / 600 l/min
• Working area (standard sizes): maximum size: 7500 x 3200 mm / further options: 3500 x 2100 mm, 5500 x 3200 mm, etc. / customization: customer-specific sizes possible
• Tool options: fot: electric oscillating knife (up to 15000 oscillations/min) / prt: driven circular knife (up to 11000 rpm) / kct: kiss-cut tool (gentle on the surface) uct: universal cutter (tangentially controlled) / v-cut: angle-cut knife / milling head: with suction device
• Nest expert: optimum material utilization / pattern expert: cad template management / order expert: erp connection (e. G. , sap) / pick-up expert: visual sorting aid
• Areas of application: cutting of leather, technical textiles, foams, plastics, rubber, composite materials, prepregs, sealing materials, foils, cardboard
