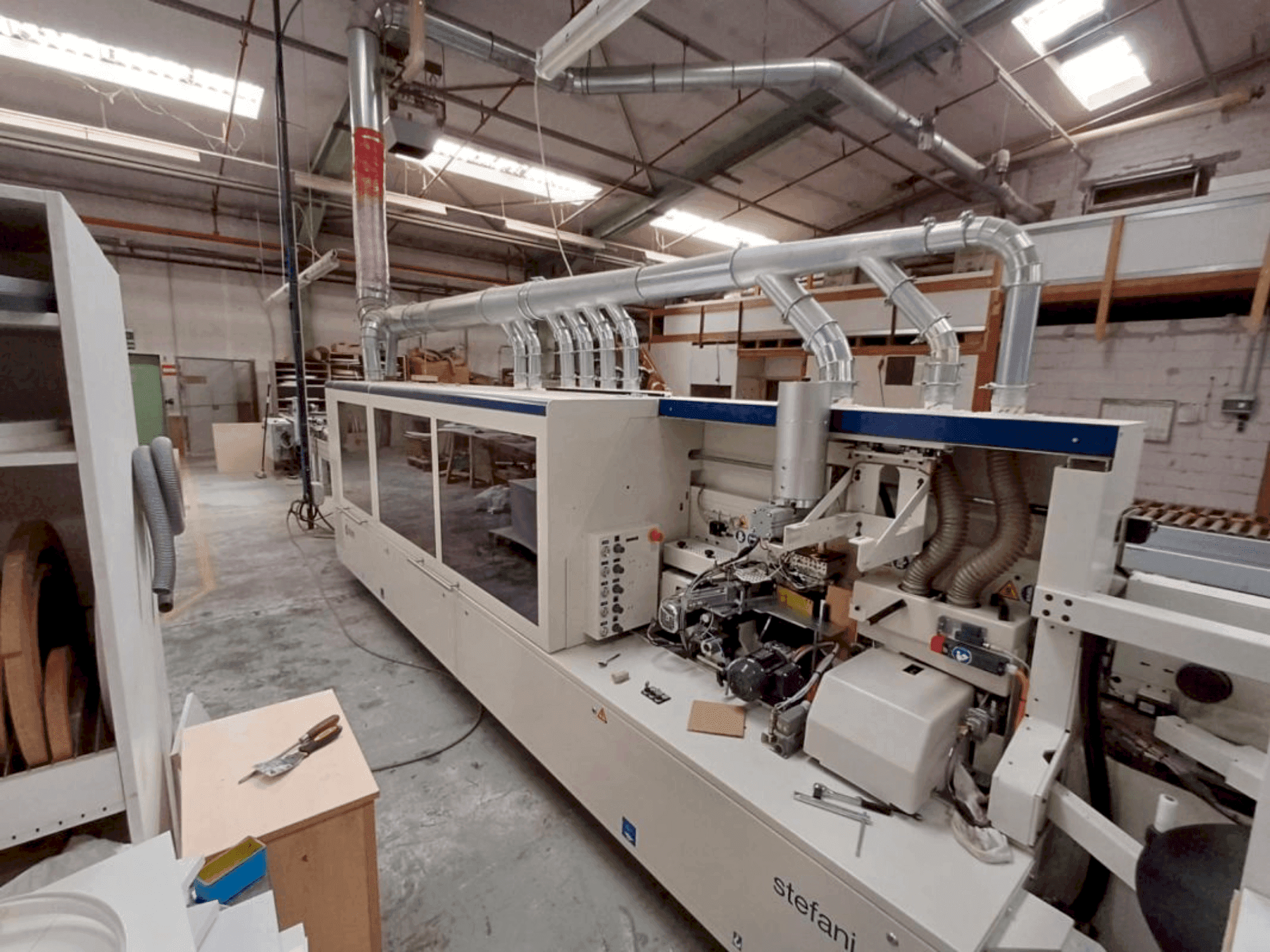

SCM - STEFANI MD RMDE-EDG-SCM-2023-00001

Additional equipment

• Anti-adhesive spray unit "AAR" - Complete with 2 sprayers and a storage container
• Spray device for finishing the edge
• Top pressure with belt
• Motors with power 4 kW for RT/E pre-milling unit
• "SGP" glue container with NC dosing
• Ceramic lamps with infrared rays
• "MultiEdge" device for the RI/S flush milling unit

Machine Benefits

Qualitative Machine Benefits

• Cutting unit "k/sel" motor power (each): 0. 35 kw saw blade speed: 12,000 rpm automatic saw blade swivel range: 0°-15°
• Rounding unit "round sk" motor power: 0. 55 kw milling speed: 12,000 rpm
• "ras/1000" scraper unit
• "spn" buffing unit two independent motors

Technical Machine Benefits

• Adjustable chain feed speed: 10-22 m/min
• Thickness of the strip edge: 0. 3-15 mm
• Thickness of the roll edge: 0. 3-3 mm
• Max. Feed speed with solid wood edges > 6 mm: 12 m/min
• Max. Roll goods diameter: 780 mm
• "maestro active edge" control system
• "eye-m" control console with integrated pc
• 21. 5" color lcd display
• Pre-milling unit "rt-e" motor power (each): 2. 2 kw cutter speed: 9,000 rpm
• Glue unit "vc-s4. 1/qms-p" sgp glue container

Extra Information

Machine still under power
