SCM - Stefani MD HPES-EDG-SCM-2013-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Holzbearbeitung
- ➤ Used SCM Stefani MD HP For Sale | gindumac.com

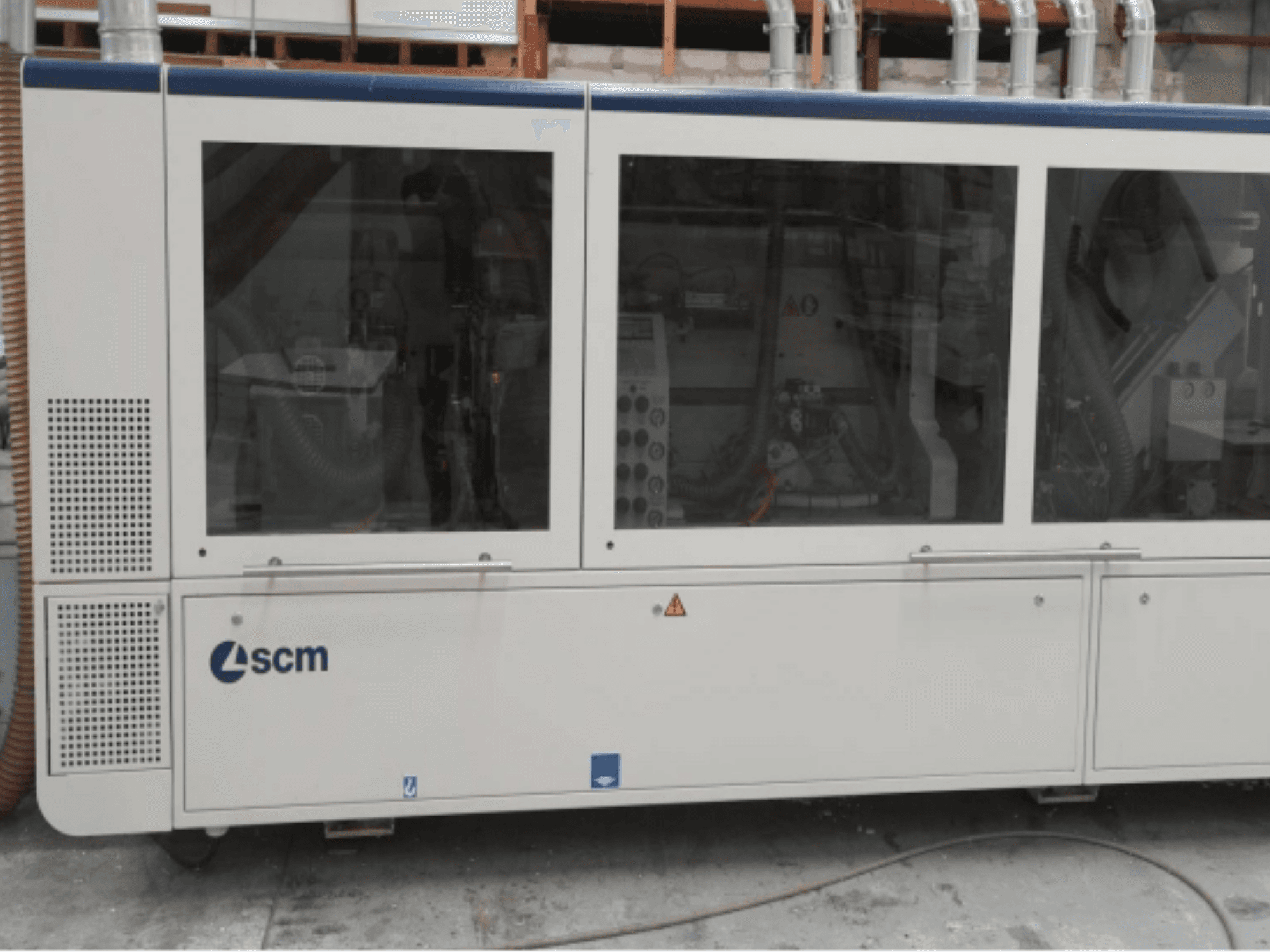

This 5-axis SCM Stefani MD HP edgebander was manufactured in 2013. It features a robust steel construction, high-frequency motors, and a "Startouch" control system with a 12" touchscreen. Capable of handling solid wood edges up to 15 mm and rolls up to 3 mm, it includes a pre-milling unit, interchangeable glue pot, and a feed speed of 25 m/min. Consider the opportunity to buy this SCM Stefani MD HP edgebander. Contact us for more information.
Übersicht
- Hersteller: SCM
- jahr: 2013
- MODELL: Stefani MD HP
- anwendungstyp: Kantenanleimen
- Standort: Spanien
- maschinentyp: Kantenanleimmaschine
- Verfügbar ab: 01/02/2026
Zusätzliche Informationen
Machine maintained and serviced
Edge banding machine for single-sided edge application
Heavy-gauge steel construction
High-frequency motors
Protective hood over all units after the gluing station
Spacer on the rotary control panel
Panel feeding via chain feed
“Startouch” control system with 12" color touchscreen
Solution MD-HP "T-ER4S" version
Capabilities: solid wood edges up to 15 mm; edge rolls up to 3 mm
Feed speed: 25 m/min
Pre-milling unit RT-E (entry spindle with diamond cutters)
Gluing unit VC-S4 / QMS with interchangeable Teflon-coated glue pot
iGlue device
EVA pre-fusion
Motor-driven feed rollers, interchangeable (needle roller for solid wood, plastic rollers)
3 pressure rollers, one motor-driven
Two-motor pressure units: straight and inclined
Anti-adhesive agent spray unit AAR for edge finishing
Scraper and edge scraper unit
Cloth polishing unit
Additional equipment
PUR glue: Fe-Ma-Tech PUR CC 2 kg
Anti-adhesive and polishing liquids
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
