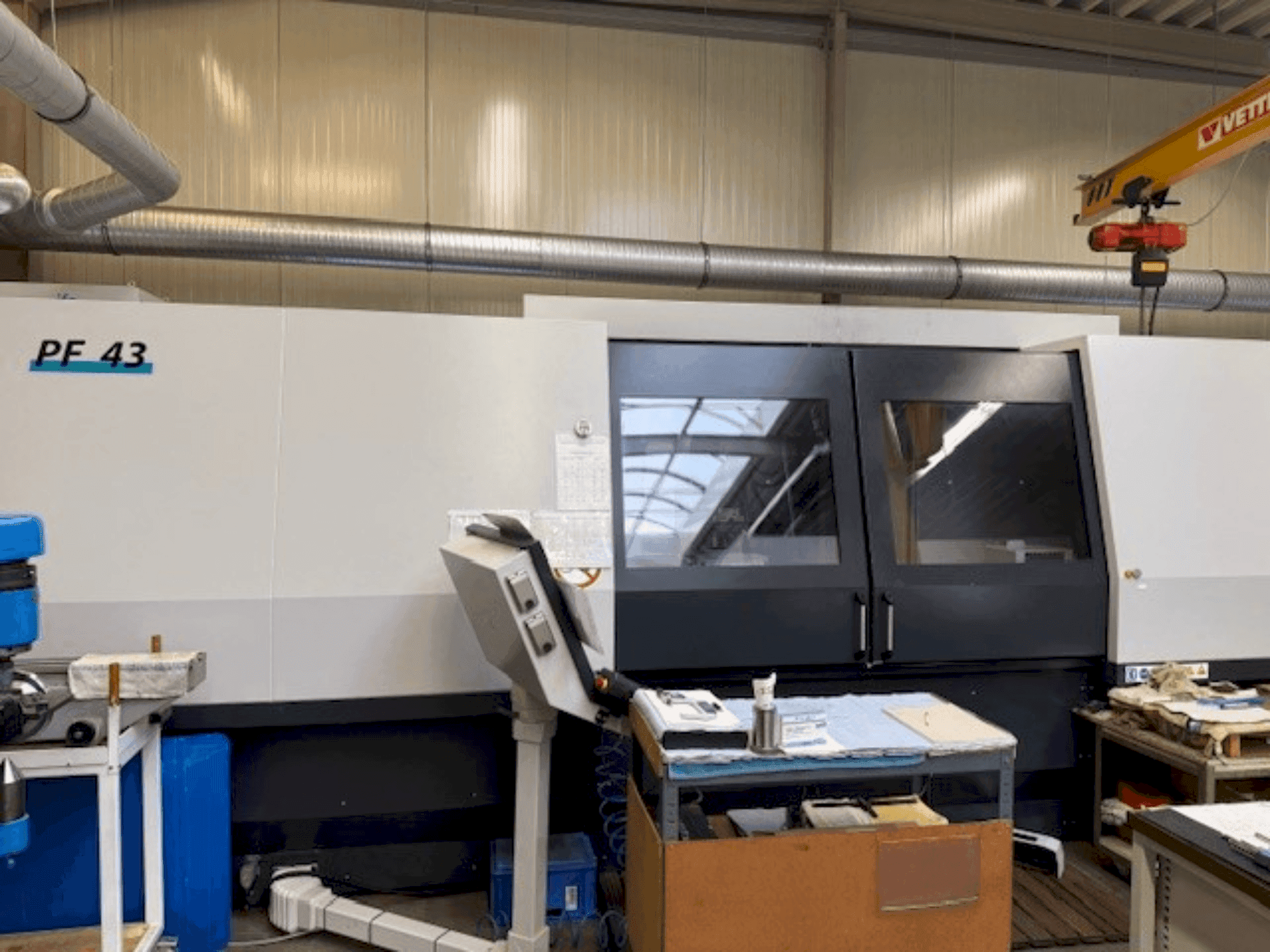

Schaudt - GSN PF43DE-GRI-SCH-2019-00001

Machine Benefits

Technical Machine Benefits

• 13x grinding wheels holders including:
• 2x 3-way chuck
• 1x magnetic chuck
• 1x three-point bezel
• 3x two-point bezel (special for bigger diameter)
• 1x special holder for dressing
• 3x internal grinding spindle

Extra Information

Media Electrical Data: Current type: 3~ (three-phase current)/ Connected load: 30 kVA/ Operating voltage: 400V/ Rated current: 40A/ Frequency: 50Hz/ Fuse protection: 63A/ Control supply voltage: 230V AC/ Control voltage: 24V DC/ Manufacturer: Schaudt Retrofit: GSN/ Type: PF 43 U 1750/ Year of manufacture: approx. 1990 Retrofit 2019/ Control: CNC Siemens Sinumerik 840D/ Max. grinding length: 1,750 mm / up to 1,840 mm possible/ Grinding diameter: Ø 6 - Ø359 mm/ Center height: 180 mm/ Max. grinding wheel diameter: 500 mm/ Grinding wheel bore: Ø 203.2 mm/ Max. workpiece weight (between centers): approx. 200 kg/ Workpiece holder MK4/ Hydraulic tailstock: MK4/ Dimensions (L × W × H): approx. 6,700 × 2,500 × 2,400 mm + cooling basin 2,300 × 1,200 × 0,900 mm/ Weight: approx. 8,500 kg/ Total power requirement: approx. 31 kVA/ Grinding spindle motor power: typ. 5.5–7.5 kW/ Workpiece holder (boring head bore): MK4 / Ø 24 mm/ Special features: CNC-controlled cylinder grinding machine for external and internal machining./ Robust construction with high rigidity for precise grinding./ Equipped with Siemens Sinumerik 840D./ Internal grinding device/ Hydraulic tailstock/ Balancing and grinding sensor technology/ Freely positionable B-axis/ Diamond dressing spindle/ In-process measuring systems (length/tightness) Mapross/ Automatic door mechanism/ Automatic tailstock displacement/ Automatic cylinder error compensation
