- ➤ Used PALMARY GU32x60S For Sale | gindumac.com

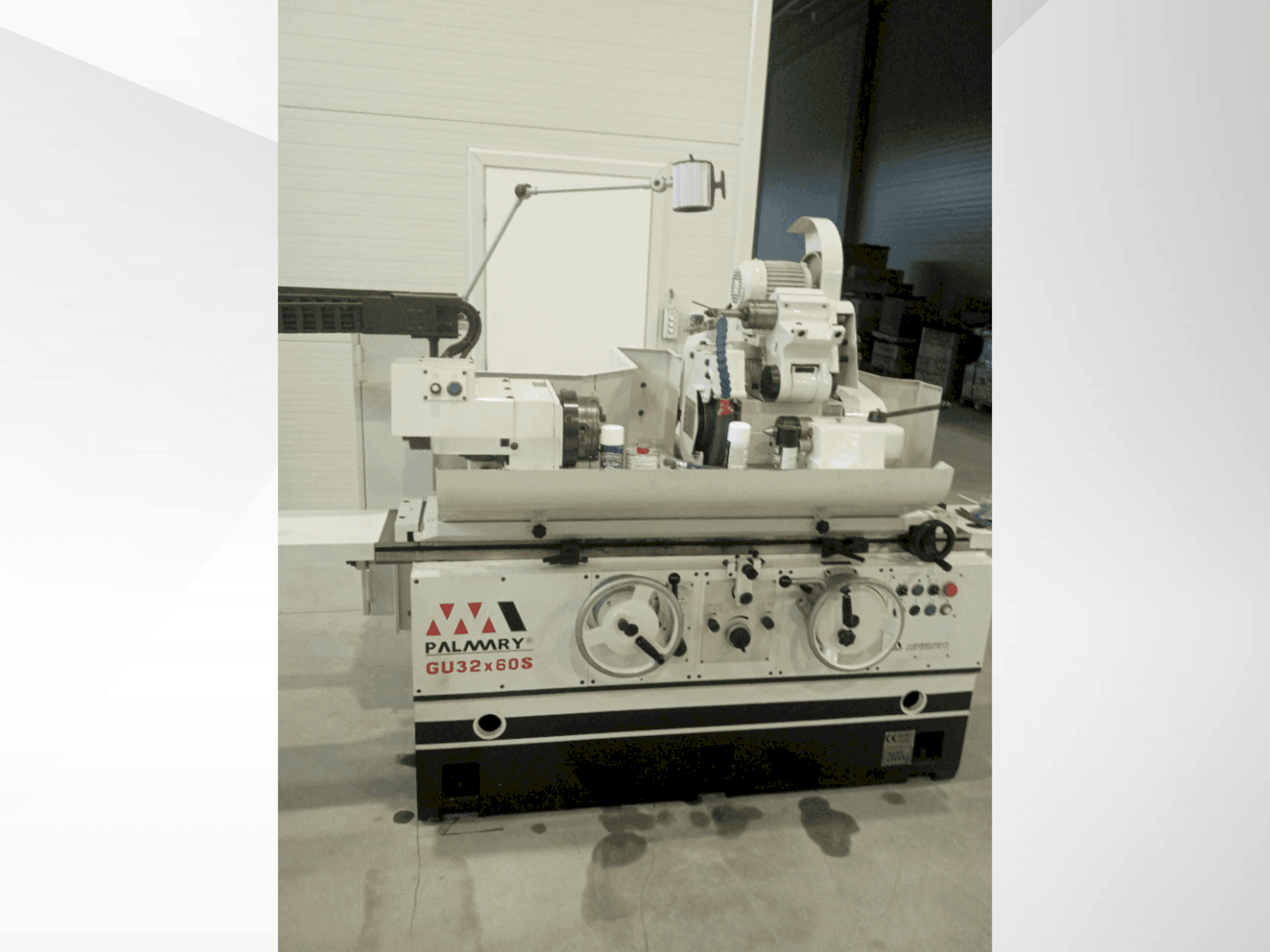

This PALMARY GU32x60S cylindrical grinding machine was manufactured in 2015. It features a swivel over table of Ø320 mm and a distance between centers of 600 mm, allowing for a max external grinding diameter of Ø300 mm. With a grinding wheel speed of 45 M/s and a spindle speed up to 300 r.p.m., this machine is ideal for precision work. If you are looking to get high-quality grinding capabilities, consider the PALMARY GU32x60S machine we have for sale. Contact us for more information.
Übersicht
- Hersteller: PALMARY
- jahr: 2015
- MODELL: GU32x60S
- anwendungstyp: Schleifen
- Standort: Tschechien
- maschinentyp: Rundschleifmaschine
Technische Daten - PALMARY GU32x60S
Bewegung
- Anzahl der Achsen: 2
Zusätzliche Informationen
Machine Benefits
Technical Machine Benefits
- Swivel over table: Ø320 mm / distance between centers: 600 mm
- Max. External grinding diameter: Ø300 mm / max. Load of centers: 150 kgs
- Table: z axis traverse speed: 1. 5 m/min / z axis max. Stroke: 650 mm / swivel angle: -2°, +10°
- Tail stock: center taper: m. T. No. 4 / stroke: 25 mm / max. Load of spindle (tool holder included): 35 kgs (max. Length: 150 mm)
- Tools: grinding wheel o. D. X width x i. D. : Ø405 x 50 x Ø127 mm / linear velocity: 45 m/s
- Main drive: motor wheel spindle: 3. 7 kw (4p) / power total voltage: 9 kva
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
