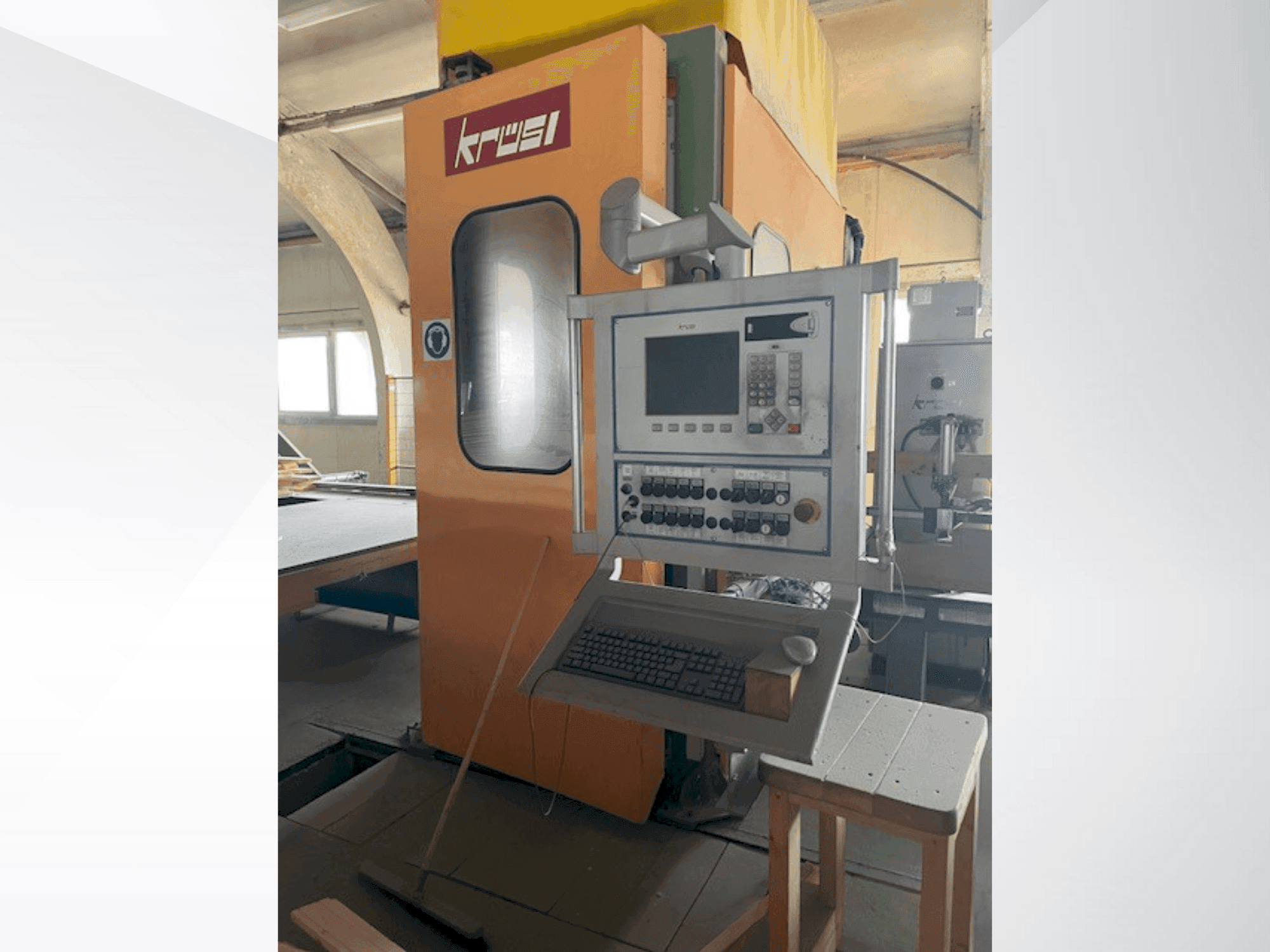

KRÜSI - KM-95 G1LT-CNC-KRU-2007-00001

Machine Benefits

Technical Machine Benefits

• The circular saw unit features a 7. 5 kw motor running at 2850 rpm, a saw spindle speed of 2800 rpm, a 600 × 5. 4/3. 6 × 30 z=54 w blade, with a 50° swivel range and over 360° rotation range.
• The groove and tenon milling unit features a 5. 5 kw motor running at 2900 rpm (50 hz), a milling spindle speed of 3327 rpm, supports tools such as a rebate cutter with a 30 mm bore, max. 250 mm outside diameter and 71 mm width, and a finger-bore milling cutter with er 32 taper, max. 50 mm diameter and 200 mm total length, with a rotation range of over 360°.
• The five-spindle milling unit features a 4 kw motor running at 2900 rpm (50 hz), a milling spindle speed of 4060 rpm, and supports tools including a dovetail cutter with a 16 mm shank, 50 mm diameter, 20° angle, and 88 mm length, as well as finger-boring cutters with a 16 mm shank, up to 50 mm diameter, and a maximum total length of 145 mm.
• The horizontal drilling units feature a 1. 8 kw motor with a drill spindle speed of 1400 rpm at 50 hz.
• The chain slotting unit features a 3 kw motor with a chain pinion speed of 2900 rpm at 50 hz.
• The marking tool uses a ballpoint pen with a fisher space pen refill.

Extra Information

Machine still under power
