- ➤ Used MORBIDELLI UNIX KBT - For Sale | gindumac.com

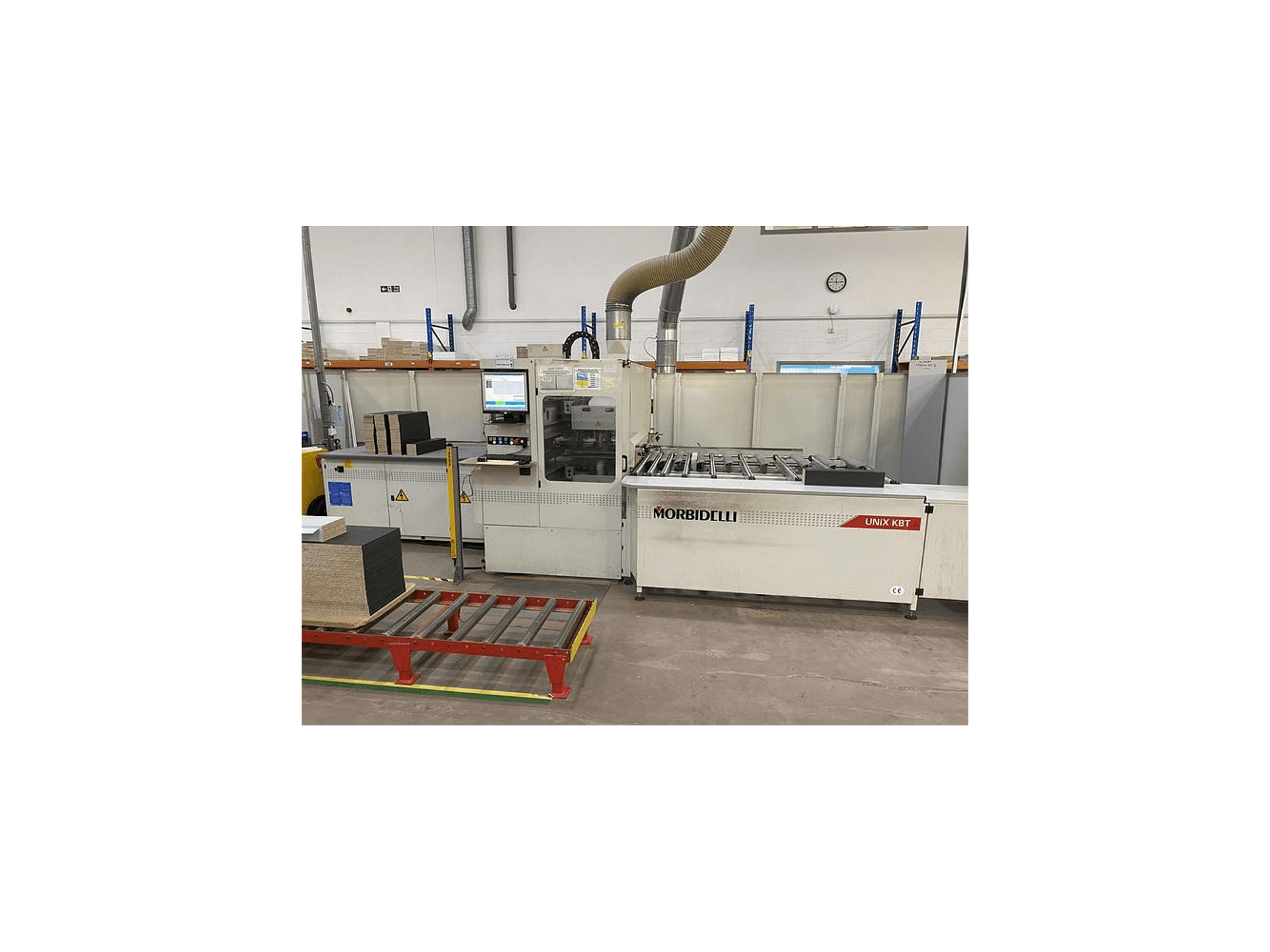

This 3-axis MORBIDELLI UNIX KBT was manufactured in 2009. It features a CNC control system, a working area of 3000 × 1000 mm, and a maximum panel thickness of 60 mm. Equipped with multiple drilling and milling units, including 24 vertical and 4 horizontal spindles, it also has a fixed saw unit and supports both manual and automatic panel handling. Consider the opportunity to buy this MORBIDELLI UNIX KBT CNC Wood Machining Centre. Contact us for more information.
Übersicht
- Hersteller: MORBIDELLI
- jahr: 2009
- MODELL: UNIX KBT
- anwendungstyp: CNC-Bearbeitung
- Standort: Spanien
- maschinentyp: CNC-Holzbearbeitungszentrum
Technische Daten - MORBIDELLI UNIX KBT
Bewegung
- Anzahl der Achsen: 3
Zusätzliche Informationen
Working area: 3000 × 1000 mm
Maximum panel thickness: 60 mm
Upper drilling and milling units:
24 independent vertical spindles
2 independent horizontal spindles with double output in X direction
2 independent horizontal spindles with double output in Y direction
1 independent fixed saw unit in X direction (motor power 2.2 kW)
Lower drilling and milling units:
24 independent vertical spindles
2 independent horizontal spindles with double output in X direction
2 independent horizontal spindles with double output in Y direction
1 independent fixed saw unit in X direction (motor power 2.2 kW)
2 lateral panel clamping clamps
Automatic lubrication
Protective and soundproofing structure for operating units
Safety networks
CE marking
Additional equipment
FLOTEX table for manual panel loading
Motorized transfer for automatic panel unloading
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
