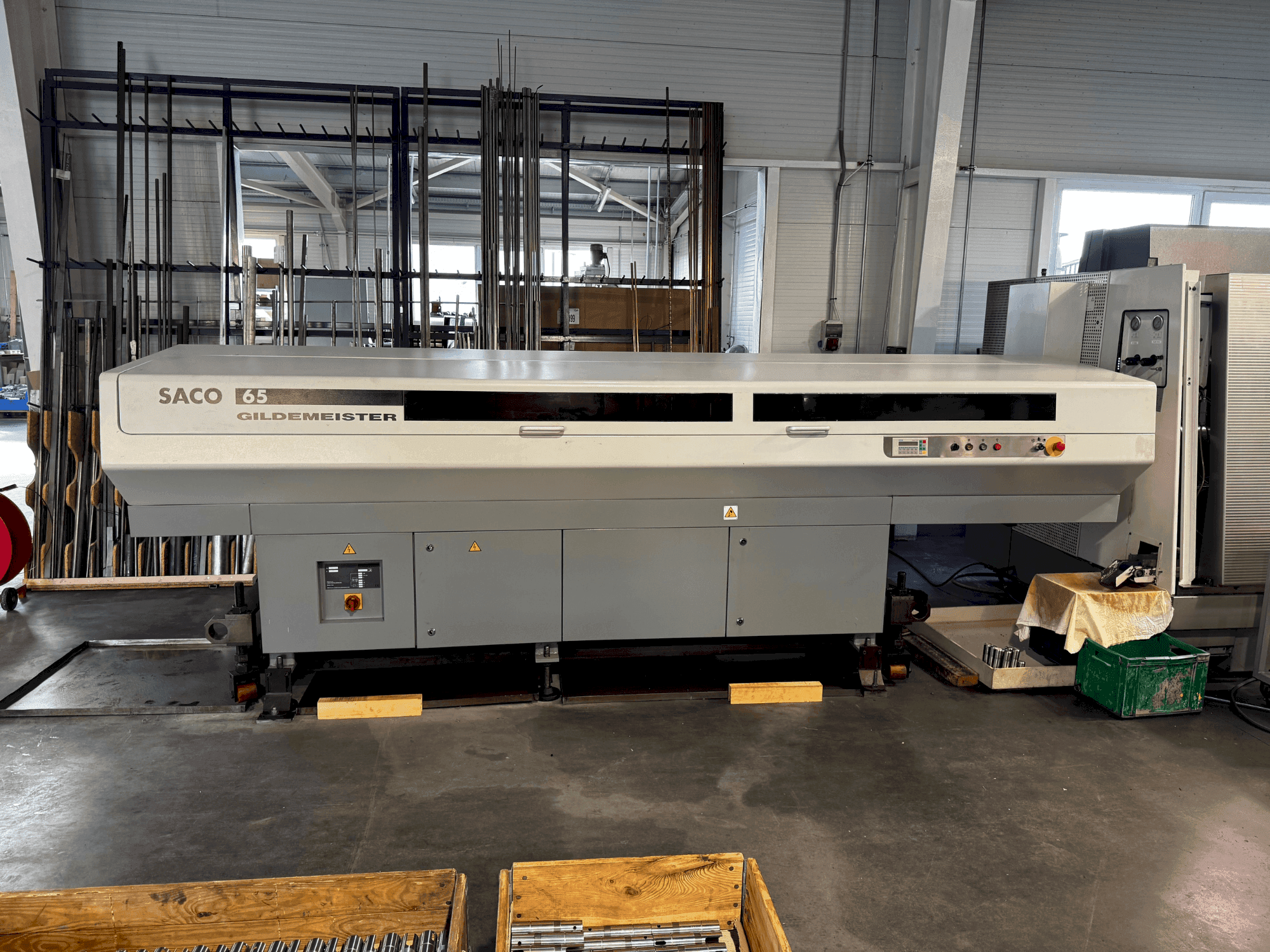

Gildemeister - CTX 420 V6 LinearHU-TUR-GIL-2006-00001

Additional equipment

• Hydraulics Capacity: 10 liters / Pressure for clamping device, tailstock: 10–60 bar / Coolant System Capacity: 210 liters / Delivery volume at 6 bar: 20 l/min

Machine Benefits

Technical Machine Benefits

• Connected load: 50 kva / mains voltage: 400 v / fusing (slow-blow/vde 0100): 80 a / voltage fluctuation at 400 v: +6% / -10%
• Max. Power (100% ed): 4. 9 kw / max. Torque (100% ed): 10. 5 nm / max. Speed: 4500 rpm
• Dimensions of machine (l/w/h): 4890 / 2460 / 2080 mm / weight (kg): 6500 kg
• Max. Swing diameter: 680 mm/ swing diameter over x-slide: 565 mm / max. Turning diameter: 324 mm / max. Turning length: 600 mm
• Number of tools: 12 / shaft Ø according to vdi 69880: 40 mm / tool holder: radial tool holder sw 320 / number of driven tools: 12
• Pump capacity: 2. 2 kw
• Technical data, machine with counter spindle / main spindle / spindle nose/flat flange: 170h5 mm / bar capacity: 65 mm / spindle Ø front bearing: 120 mm / spindle bore: 79 mm / chuck: 200 / 250 mm / drive power s1 (100% ed): 25 kw / speed range: 1–5000 rpm / torque s1 (100% ed): 270 nm / c-axis (main spindle): speed: 1–900 rpm, holding torque: 250 nm, indexing accuracy: 0. 025° / counter spindle / spindle nose/flat flange: 140h5 mm / spindle Ø front bearing: 160 mm / spindle bore: 42 mm / chuck: 160 mm / drive power s1 (100% ed): 7. 5 kw / speed range: 1–1500 rpm / torque s1 (100% ed): 160 nm / c-axis (counter spindle): speed: 1–250 rpm, holding torque: 120 nm, indexing accuracy: 0. 025°
• Workplace-related continuous sound pressure level / according to din 45635 part 1-04. 85 (iso 3740-1980), measured: 77 db(a) / during cutting: 78 db(a) / in idle mode: 78 db(a) / cross slide x/y/z / travel x: 185 mm / travel z: 635 mm / ball screw x (dxh): 40x15 mm / ball screw z (dxh): 40x5 mm / rapid traverse speed x/y/z: 60 / 15 / 45 m/min / thrust force x/y/z: 3. 5 / 7 / 7 kn / counter spindle travel / travel z2: 666 mm / rapid traverse speed z2: 45 m/min / ball screw z2 (dxh): 40x15 mm
