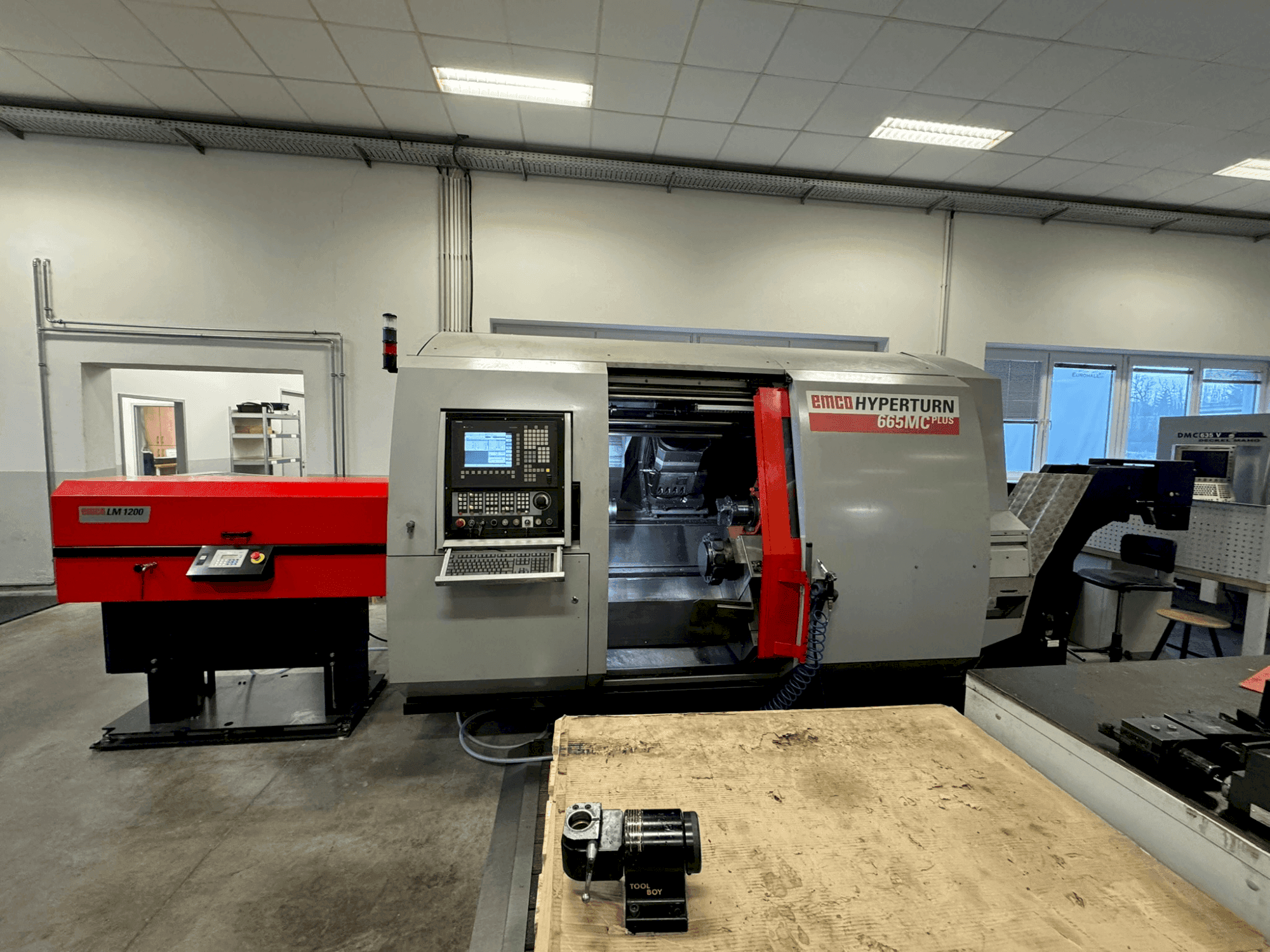

EMCO - Hyperturn 665MC PlusAT-TUR-EMC-2008-00001

Additional equipment

• Tool turret: 12-position tool VDI 30 radial with directional logic for up to 12 driven tool stations
• B-PowerMill: Motorised milling spindle with 24-position tool magazine, 210° swivelling range
• Optional tool package: Includes stationary and driven tool holders, collet chuck holders, reducing sleeves, and operating spanners
• Hollow clamping cylinder with draw tube / Part ejector and flushing through the counter spindle / Part pick-up device for finished parts
• Part pick-up device for finished parts / Coolant device in the chip conveyor / High-pressure pump (14 bar) and fine filter
• Flushing pumps (3.7 bar) / Control cabinet air conditioning unit / Electrostatic oil mist separator
• Hydraulic unit / Machine light / Interface for foot switch / Signal lamp
• Documentation including handwheel, PC keyboard, network preparation, tool monitoring, turning window, cleaning gun
• Clamping device for main spindle: Hainbuch BZI 80 centre pull /

Machine Benefits

Technical Machine Benefits

• Counter spindle: 22 kw / counter spindle: 0-7000 rpm
• Main spindle: kk 6 (passage 65 mm) / counter spindle: kk 6
• Y-axis travel range: +/- 50 mm
• C-axis for main and counter spindle
• Counter spindle: 3-jaw chuck 210 mm
• Approx. 40 capto c4 holders for milling spindle
• Loader lm 1200
• Machine does not have shopturn programming. It must be programmed using iso code, whereby simple cycles are available for drilling, milling, swiveling, etc.
