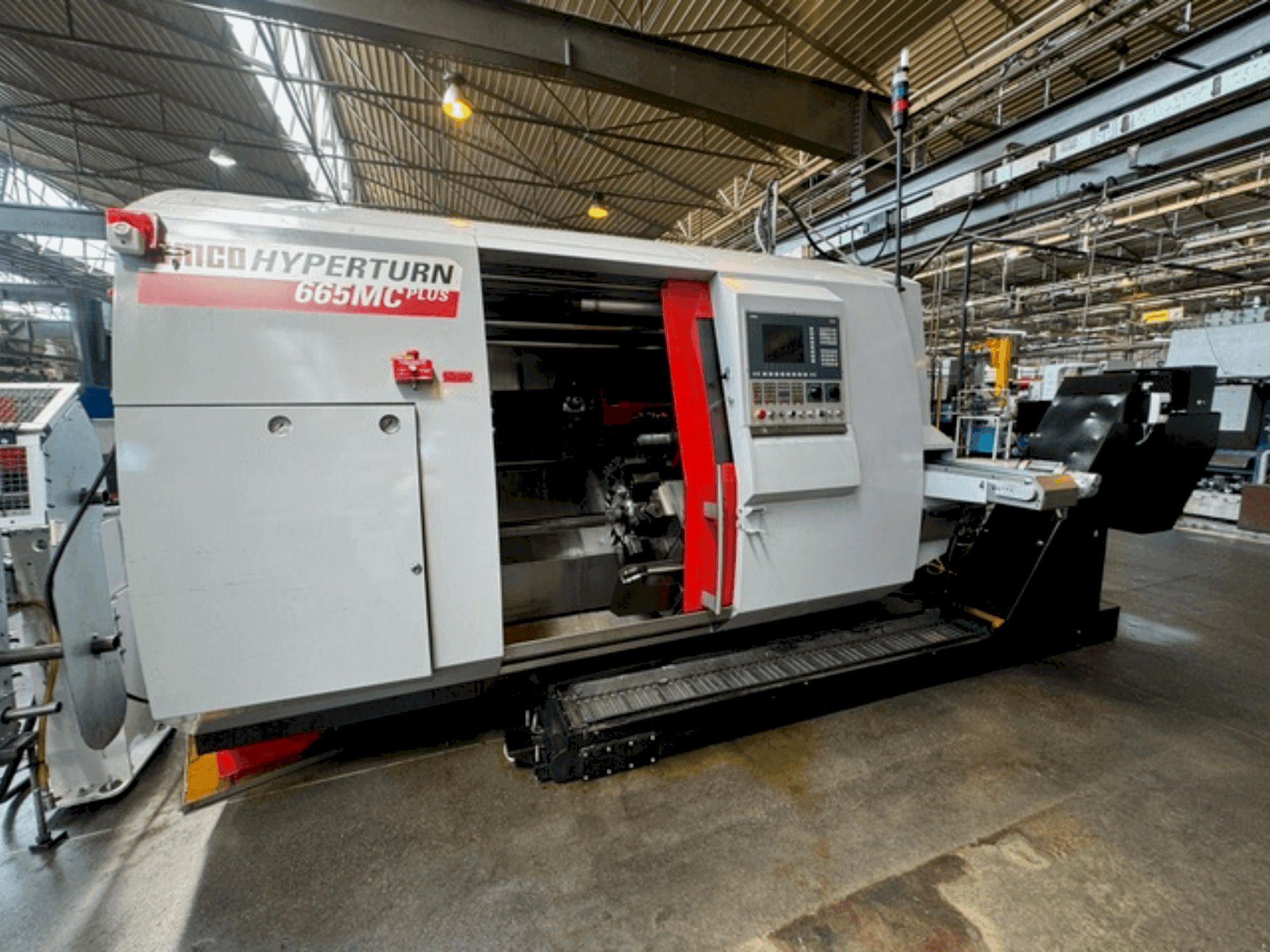

This 7-axis EMCO HYPERTURN 665 MC PLUS lathe was manufactured in 2005. It features twin spindles, twin turrets, and a maximum turning diameter of 600 mm. Equipped with a SIEMENS 840D CNC, it offers spindle speeds up to 5000 rpm and a bar passage diameter of 65 mm. Additional features include a LNS MOVE bar loading magazine, high-pressure coolant system, and air-conditioned control cabinet. For more information about this lathe, please reach out to us.
Übersicht
- Hersteller: EMCO
- jahr: 2005
- MODELL: HYPERTURN 665 MC PLUS
- Produktionsstunden: 52581
- anwendungstyp: Drehen
- Standort: Frankreich
- maschinentyp: Dreh-Fräszentrum
- Marke Steuergerät: SIEMENS
Technische Daten - EMCO HYPERTURN 665 MC PLUS
Steuerung
- Steuerungsmarke: SIEMENS
- Steuerungsmodell: 840D
Maße
- Maschinentiefe: 2550 mm
- Maschinenhöhe: 2300 mm
- Maschinengewicht: 8500 kg
Bewegung
- X-Achsverfahrweg: 280 mm
- Y-Achsverfahrweg: 100 mm
- Z-Achsverfahrweg: 2 mm
Technische Spezifikation
- Spindeldrehzahl: 5000 RPM
- Kühlmittelzufuhr durch die Spindel: Ja
Zusätzliche Informationen
Machine Benefits
Qualitative Machine Benefits
- High precision and repeatability, enhanced productivity.
- Very good condition
Technical Machine Benefits
- 300-liter high-pressure coolant system
- Twin-spindle and twin-turret configuration, advanced control unit.
- Maximum turning diameter: 600 mm
- Turning diameter over carriage: 500 mm
- Distance between the two spindles: 1,000 mm
- Maximum swing diameter: 430 mm
- Workpiece length: 744 mm
- Maximum workpiece envelope with tailstock: Ø200 x 200 mm
- Bar passage diameter: 65 mm
Extra Information
X/X2 axis travel: 280/205 mm Z/Z2/Z3 axis travel: 900/750/750 mm Y-axis travel: 100 mm (upper turret) +/- 50 mm Torque: 250 Nm Counter spindle speed: 0 - 7,000 rpm – Max torque: 130 Nm C-axis resolution: 0.001° C-axis rapid traverse: 100 rpm Lower/upper turrets: 2 x 12 stations, all motorized VDI30 Turret indexing time: 0.2 sec Motorized tool drive power: 6.7 kW Motorized tool rotation speed: 0-4,000 rpm Electrical power, connected load: 46 kVA CNC: SIEMENS 840D Ethernet port 3-color status lamp LNS MOVE bar feeder: bar length 700/2,100 mm – bar Ø 8/80 mm – 7-bar magazine 2 collet chucks 19 axial motorized tool holders 4 radial motorized tool holders 40 static axial and radial tool holders Upper parts catcher with conveyor belt High-pressure coolant system: 300 liters, 2 pumps of 2.2 kW Spindle oil cooler Air-conditioned cabinet Fire extinguisher Complete documentation Electrical power, connected load: 46 kVA Tool holders included, which comprise 19 axial motorized tools, 4 radial motorized tool holders, and 40 static axial/radial tool holders.
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
