- EMCO HYPERTURN 65-1300 DUOTURN CNC Turn-Mill Center

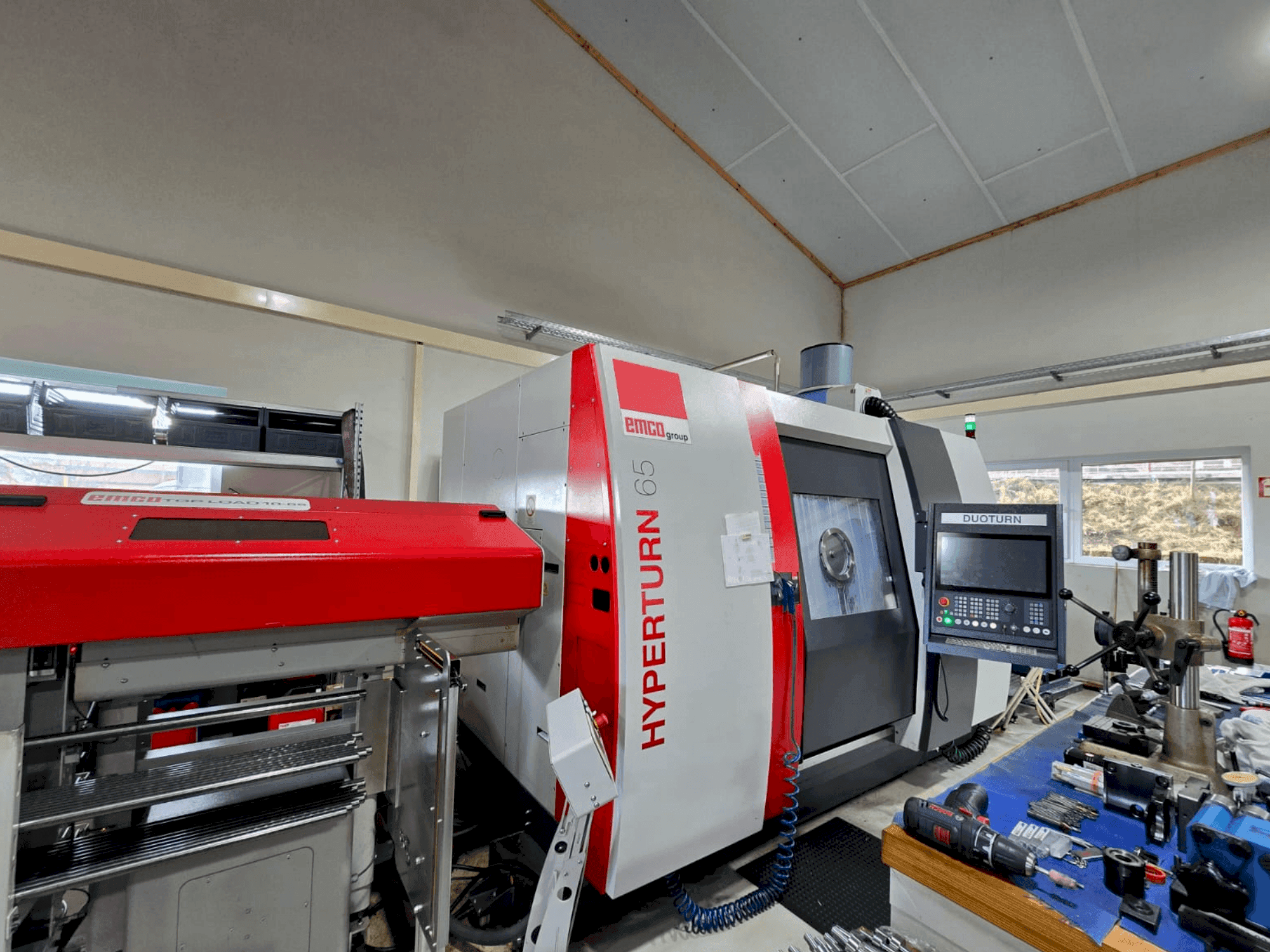

This EMCO HYPERTURN 65-1300 DUOTURN CNC Turn-Mill Center was built in the year 2018 in Austria. It is equipped with a SIEMENS Sinumerik 840D SL Control and 2 turrets including milling drive and 2 Y-axes. This highly productive CNC turning/milling center is perfect for the complete machining of turned and milled parts with 1300 m spindle distance. It has integrated spindle motors (ISM) on the main and counter spindles with a spindle speed range from 0 - 5000 min-1. This complete center features 2x 12-fold tool turret radial with directional logic for up to 2x 12 driven tool stations (swivel speed adjustable with feed switch). It comes with several extras from MT65/HT65 BigBore77 to BMT turret (top right) with direct drive for HT65DT/HT65TT/MT65 (the VDI30 standard turret is replaced by a BMT turret with BMT55P precision interface). See original PDF (German) with all positions attached. Check out photo and video gallery for more details.
Übersicht
- Hersteller: EMCO
- jahr: 2018
- MODELL: HYPERTURN 65-1300 DUOTURN
- Produktionsstunden: 15000
- anwendungstyp: Drehen
- Standort: Deutschland
- maschinentyp: Dreh-Fräszentrum
- Marke Steuergerät: SIEMENS
Technische Daten - EMCO HYPERTURN 65-1300 DUOTURN
Steuerung
- Steuerungsmarke: SIEMENS
- Steuerungsmodell: Sinumerik 840D SL
Technische Spezifikation
- Spindelleistung: 29 kW
- Spindeldrehzahl: 5000 RPM
- Kühlmittelzufuhr durch die Spindel: Ja
Zusätzliche Informationen
Additional equipment
- Top Automazioni bar loader (Model: ETL10-75, YOM 2018) - weight 2500 kg
- 600l external cooling water tank with belt filter from Bürener
- Parts ejector and flushing through the counter spindle
- Chip conveyor with an ejection height of 1200mm (programmable)
- Coolant device integrated in the chip conveyor
- 2 pcs. High pressure pumps with 14 bar // 2 pcs. flushing pumps with 3.7 bar
- Electronic handwheel 840D
- COMPRESSED AIR SYSTEM FOR GLASS SCALES
- EMCO TOP LOAD 15-75/3200 MULTI-LEVEL
- PART CATCHER WITH FINISHED PART DUST BELT // BELT FILTER SYSTEM
Machine Benefits
Qualitative Machine Benefits
- Highly productive cnc turning/milling center for the complete machining of turned and milled parts with 1300 m spindle distance
- Integrated spindle motors (ism) on the main and counter spindles
- Main and counter spindles (liquid-cooled) cooled)
- Preloaded roller guides
- Tools are not included in the price
- Optional tools available for sale
Technical Machine Benefits
- Duoturn with 2 turrets incl. Milling drive and 2 y-axes
- Drive power: main spindle - 29 kw
- Counter spindle - 29 kw
- Bmt 55 turret two pieces with one y-axis each
- Main spindle big bore with 76mm
- Water-cooled turret drive with 12,000 revolutions
- 2x 12-fold tool turret vdi 30 radial with directional logic for up to 2x 12 driven tool stations
- Swivel speed adjustable with feed switch
Extra Information
15,000 spindle hours // 20,000 switch-on hours
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
