Trotec - SP500DE-LAS-TRO-2020-00002
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Blechbearbeitungsmaschinen
- ➤ Used Trotec SP500 - Laser Cutter For sale | gindumac.com

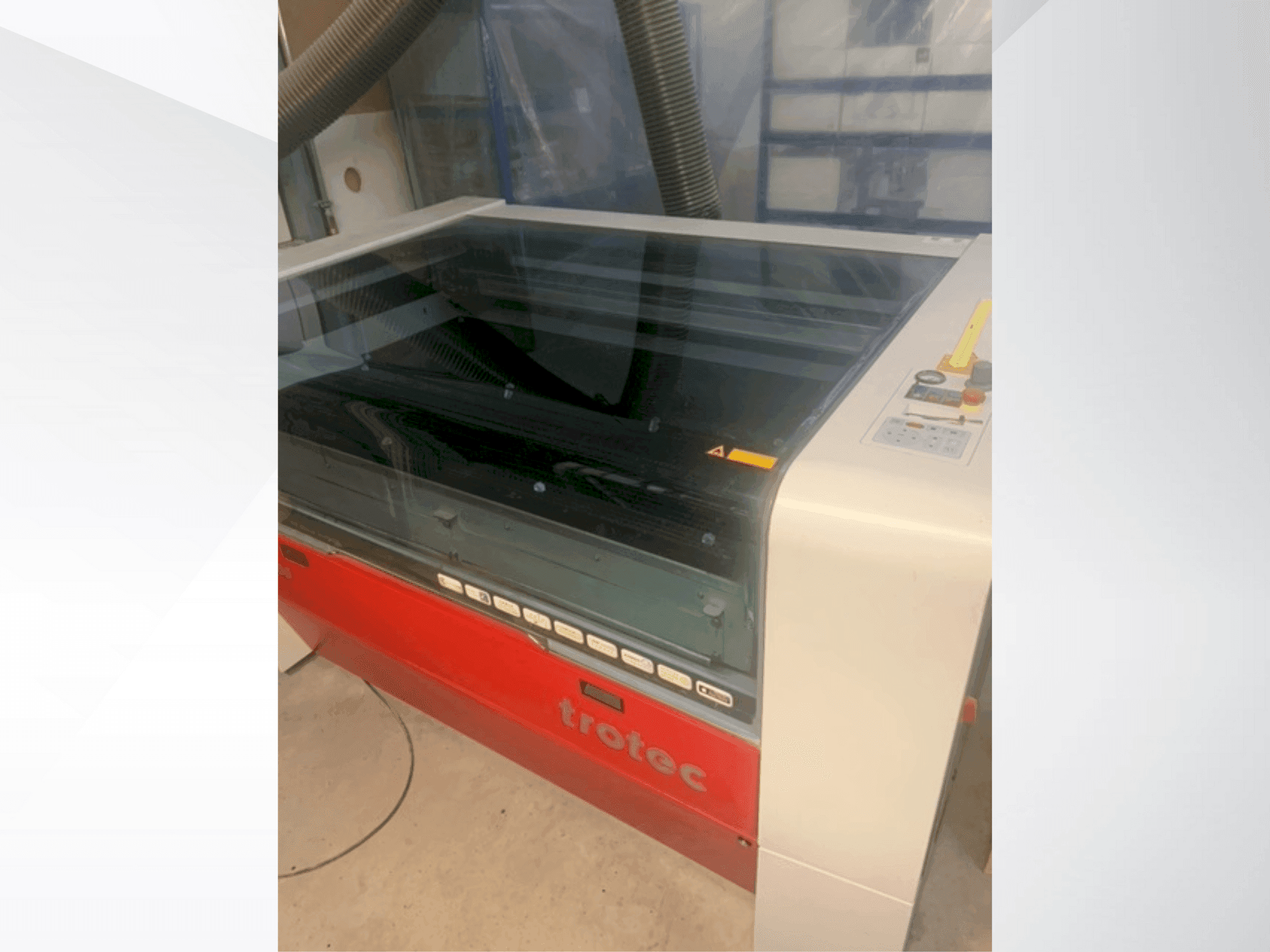

This laser cutting machine was manufactured in 2020. Equipped with a sealed-off CO2 laser of 200 watts and water cooling, it ensures precise and efficient cutting. The processing area is 1245 x 710 mm, supporting a maximum workpiece weight of 25 kg. Features include JobControl® Expert software and USB connectivity. Ideal for detailed work, the Trotec SP500 machine we have for sale represents a significant opportunity. For more information about this laser cutting machine, please reach out to us.
Übersicht
- Hersteller: Trotec
- jahr: 2020
- MODELL: SP500
- anwendungstyp: Schneiden
- Standort: Deutschland
- maschinentyp: CO2-Laserschneidmaschine
Zusätzliche Informationen
Additional equipment
- Round engraving device
- Suction system
- Optional: - KAESER ICOMP 8 TOWER T COMPRESSED (YOM 2022).
Machine Benefits
Qualitative Machine Benefits
- High repeatability and addressable accuracy for consistent, high-quality cutting.
Technical Machine Benefits
- Processing area: 1245 x 710 mm
- Loading area: 1420 x 820 mm
- Max. Processing speed: 2. 54 m/s
- Acceleration: 19 m/s²
- Motor: brushless dc servo motors repeatability: < ±30 µm across the entire processing area
- Addressable accuracy: 4. 6 µm
- Software: jobcontrol® expert
- Interface: usb connection to pc
- Control elements: machine keyboard, key switch, emergency stop
- Kaeser icomp 8 tower t compressor: volume flow at 6 bar, 2100 rpm - 404 l/min; volume flow at 11 bar, 1800 rpm- 291 l/min; max. Overpressure- 11; speed range min/max- 1000-2100 rpm; nominal power drive motor- 3. 1kw; electrical supply - 380-480 v / 50-60 hz; dimensions - 840 x 1130 x 1380; mass - 254kg
Extra Information
Machine still under power // Operating hours max. 2000 // Used the machine to engrave wood and glass. We also cut wood.
