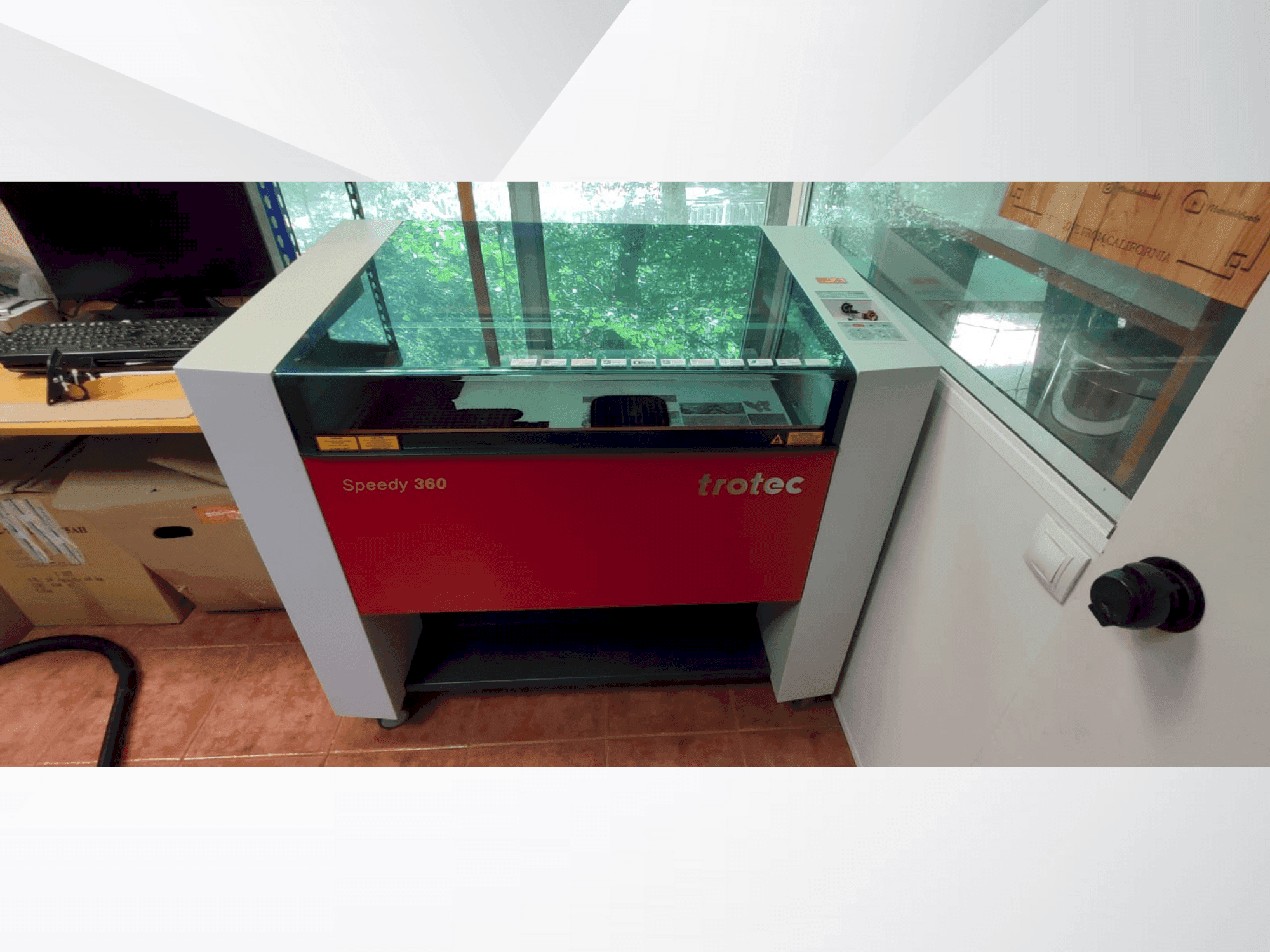

Trotec - Speedy 360AT-CUT-TRO-2019-00001

Additional equipment

• Autofocus: Light Bar Focus (electro-optic)
• Positioning: Laser pointer (655 nm, <0.99mWcw)
• LED lighting
• Software: JobControl® Expert Software, iOS App

Machine Benefits

Technical Machine Benefits

• Ergonomic access to working area
• Coaxial air assist
• Optional features: protection kit, air assist, rotary attachment, jobcontrol® vision, vacuum table, honeycomb cutting tabletop, specialized cutting tables
• Exhaust system: surface exhaust via rear of the engraving cabinet, table exhaust with vacuum and cutting table
• Laser safety: classification: cdrh laser safety, ce tested, laser class 2
• Laser safety: safety features: duplicate interlock system, front-side loading lid
• Temperature: +15°c to +25°c
• Humidity: 40% to max. 70% (non-condensing)
• Dust-free environment: 2nd degree per iec 60947-1

Extra Information

Movement Working Area: 813 × 508 mm Loading Area: 890 × 600 mm Max. Workpiece Height: With working table: 210 mm Without working table: 280 mm Motion System Speed: 355 cm/sec Acceleration: 5g Workpiece Max. Material Load: Static: Up to 100 kg Dynamic: Up to 30 kg Table Working Tables: Standard: Ferromagnetic engraving table Optional: Multifunctional table system and Honeycomb cutting tabletop Tools Lenses: Standard: 2.0" Optional: 1.5", 2.0" clearance lens, 2.5", 4.0"
