- ➤ Used TORNOS DECO 10a For Sale | gindumac.com

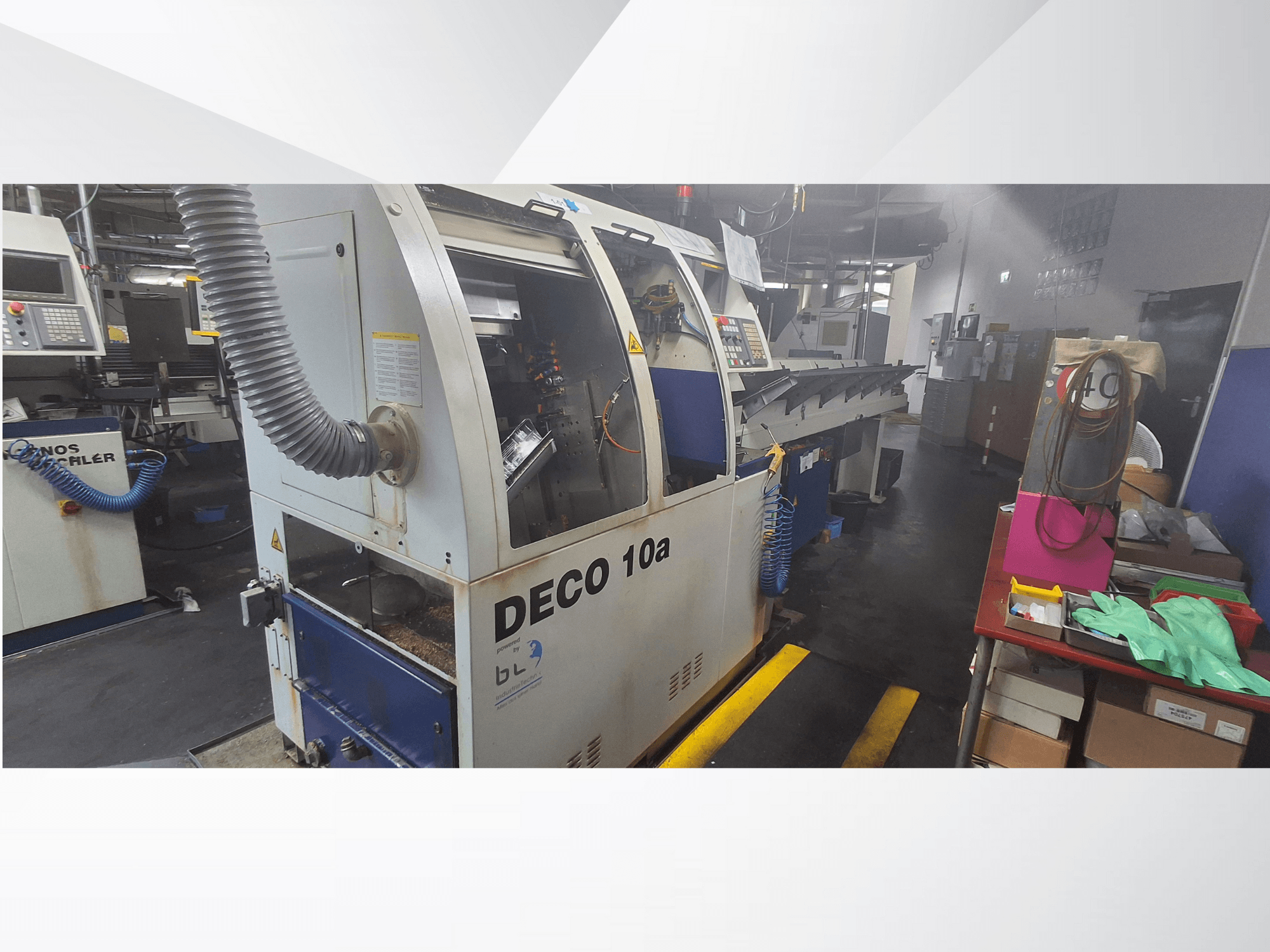

This TORNOS DECO 10a was manufactured in 2006. It features an integrated bar loader with a maximum bar length of 3.2 m and a bar capacity ranging from 2 to 10 mm. The machine includes a Robobar SSF 3m loading magazine and a FANUC 16i-TB control system, ensuring precise and efficient operations. Ideal for intricate Swiss-type turning tasks. Contact us for more information about this machine.
Übersicht
- Hersteller: TORNOS
- jahr: 2006
- MODELL: DECO 10a
- anwendungstyp: Drehen
- Standort: Deutschland
- maschinentyp: Swiss-Type-Drehmaschine
- Marke Steuergerät: FANUC
Technische Daten - TORNOS DECO 10a
Steuerung
- Steuerungsmarke: FANUC
- Steuerungsmodell: 16i-TB
Zusätzliche Informationen
Additional information
Maximum bar length: 3200 mm
Bar capacity: Minimum 2 mm, Maximum 10 mm
Max diameter without preparation: 8 mm (without clamp)
Motor voltage: 400 V
Control voltage: 24 V
Independent counter spindle (S4)
FANUC 16i-TB control system
1 cross slide with 4 tool holders
Sensor for tool breakage detection
Center height: 1100 mm

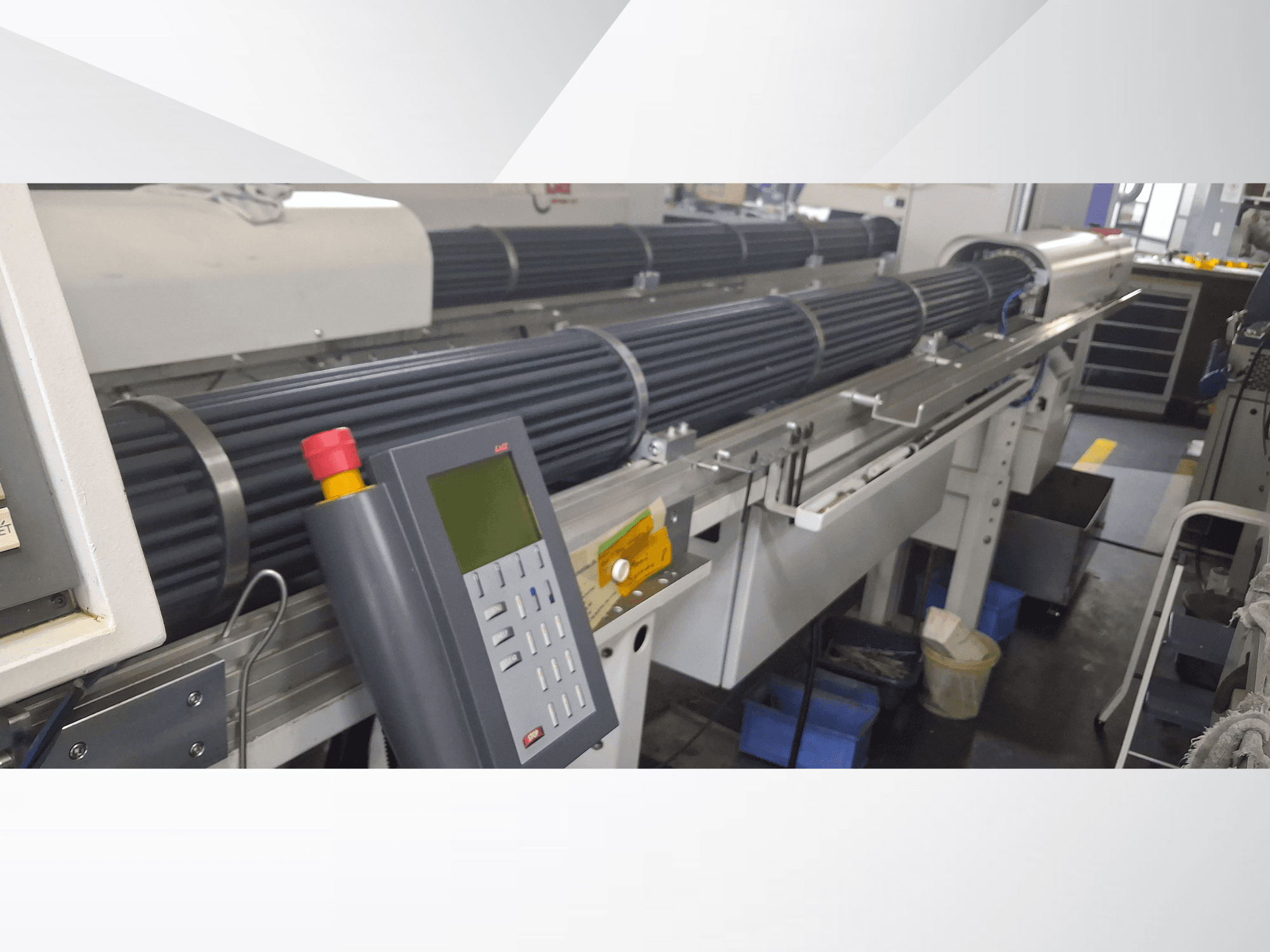

Automatic and integrated bar loader with oil bath
Robobar SSF 3m loading magazine
Front/rear support foot
"HYBRIDE 10+5" drum with 14 guide holes for 1-4 mm and 14 guide holes for bars 4.1-10 mm without bar preparation up to 8 mm
Electrical control box
Integrated 25-liter hydraulic unit with filter
Moving headstock
Directed spindle stop
Optional: Comprehensive package of measuring instruments
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
