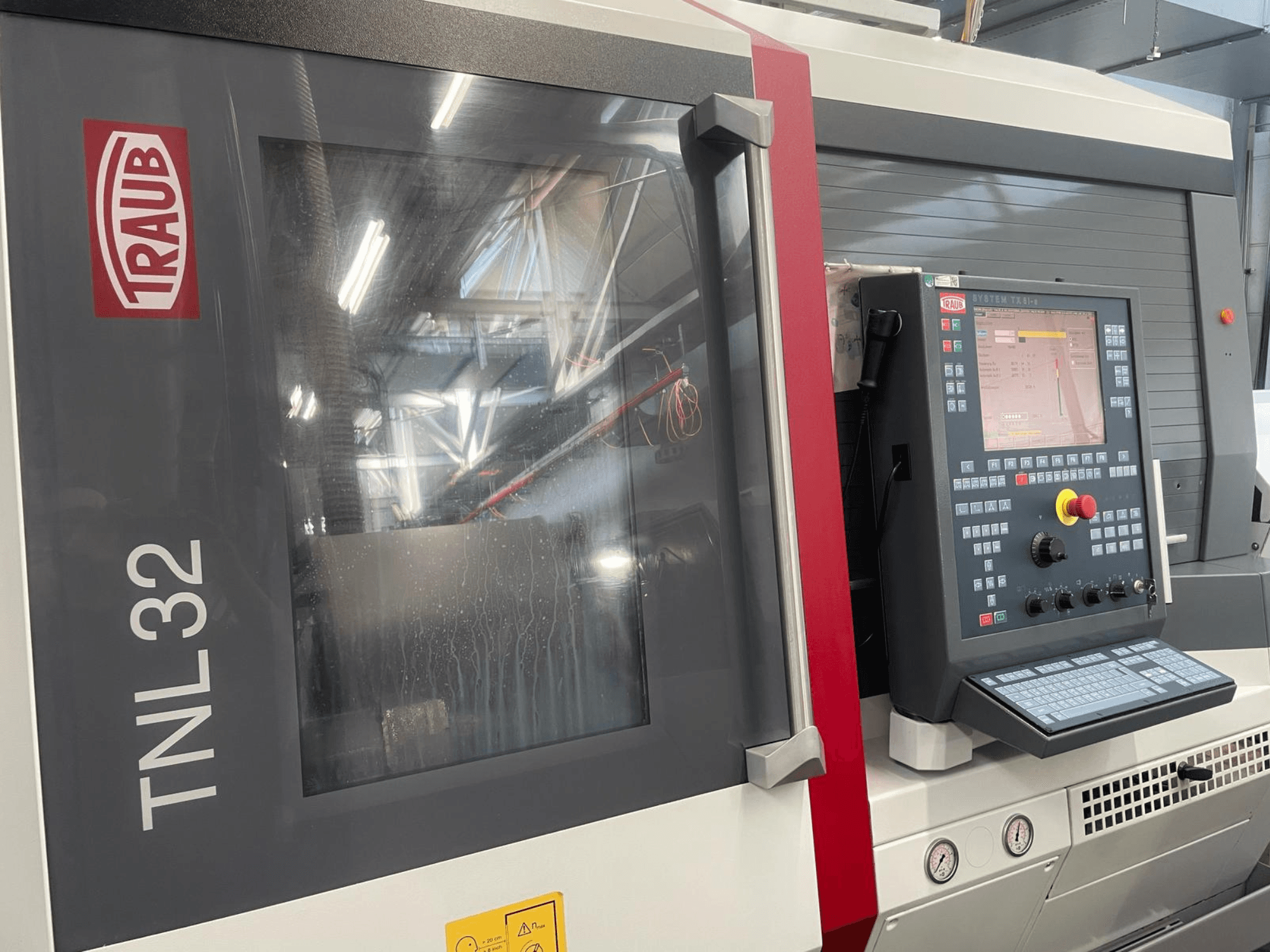

TRAUB - TNL 32DE-TUR-TRA-2014-00001

• Control: TRAUB TX8i-s CNC/PLC with 64-bit RISC processor and fiber-optic PC; color TFT flat-panel display; electronic handwheel

• Software/extensions included: Polyform (C-axis programming), Helical (3D Y-axis interpolation), tapping without compensating chuck, parting tool breakage monitoring, parting tool ejection monitoring, axis shutdown, T-ATC

• Main spindle: Motor spindle with hollow clamping system; 32 mm bore/bar capacity; C-axis max speed 8,000 rpm

• Max stroke: 305 mm (L version) / 127 mm (K version)

• Sub-spindle: Partial hollow clamping, C-axis; cleaning unit mounted on lower tool turret

• Upper tool turret: X/Y/Z/H/B axes; 10 tool holders; dual drive

• Lower tool turret: X/Y/Z/H axes; 9 tool holders; combined drive; separate counter-spindle operation

• Measuring/feedback: Glass scales on X-axis (upper and lower turrets); rotary encoder on C-axis

• Back working: 8-position back table with combined drive for up to 3 tools; prepared for internal coolant supply

• Clamping: Clamping direction reversal device and counter clamping pressure device on main and counter spindles

• Coolant system: Standard system with 3-bar and 8-bar pumps (50 Hz) in a 500-liter tank; additional 28-bar pump (50 Hz), 19 l/min flow rate

• Extraction: Connection D 150 mm for central extraction

Additional equipment

• None specified (no robots, bar feeder, chip conveyor, or external automation listed)
