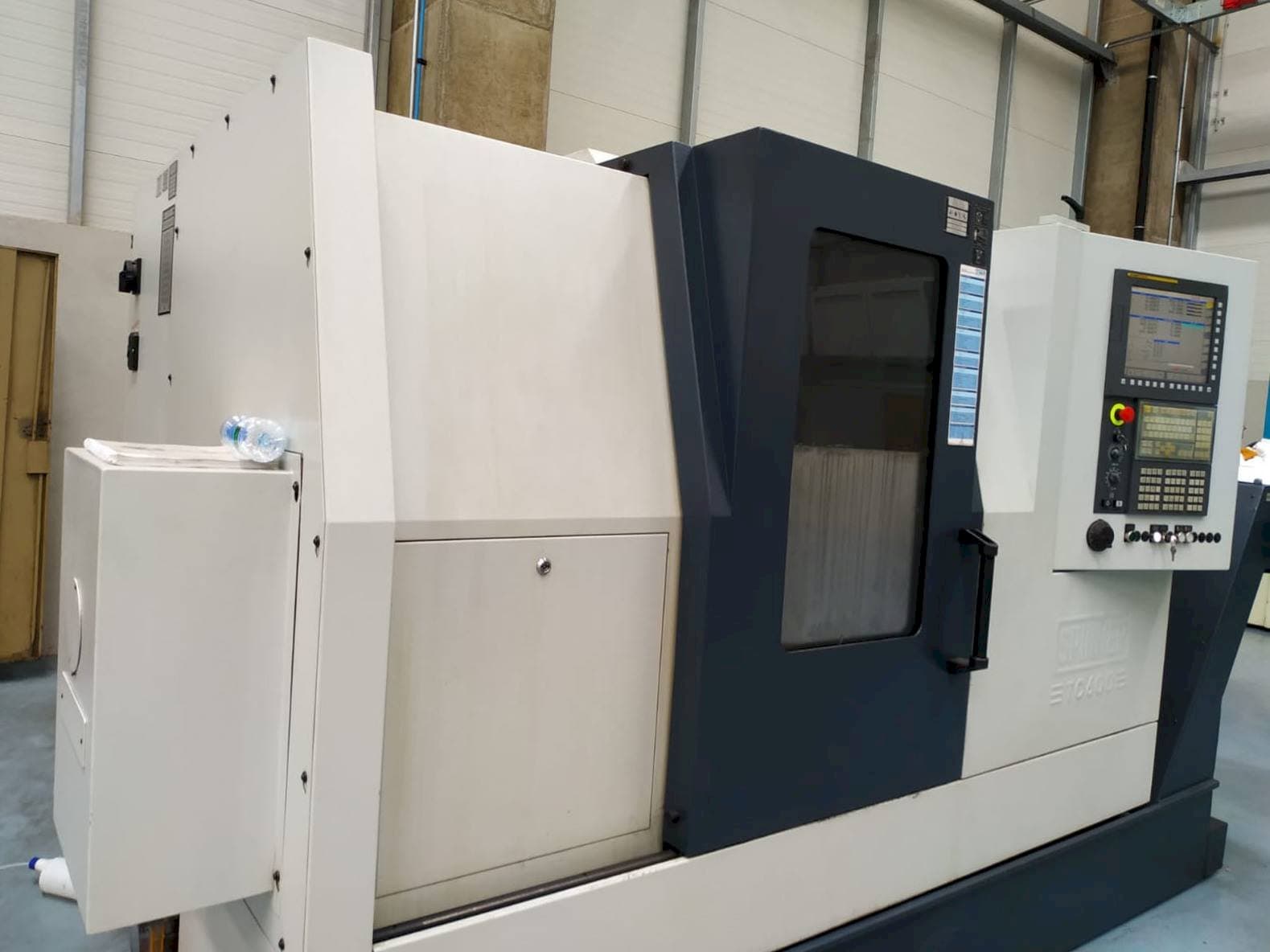

This SPINNER TC-600 Lathe was made in the year 2011. It has been working for only 72 hours, is brand new. It is equipped with a FANUC 31 control unit. This 3 axis machine can operate with a speed up to 6000 rpm. This machine was taken to a corporate factory in 2011, it only processed 100 jobs. It is a brand new machine that has been regularly maintained without interruption.
Übersicht
- Hersteller: SPINNER
- jahr: 2011
- MODELL: TC-600
- Produktionsstunden: 72
- anwendungstyp: Drehen
- Standort: Türkei
- maschinentyp: Horizontal-Drehmaschine
- Marke Steuergerät: FANUC
Technische Daten - SPINNER TC-600
Steuerung
- Steuerungsmarke: FANUC
- Steuerungsmodell: 31
Bewegung
- Anzahl der Achsen: 3
- X-Achsverfahrweg: 340 mm
- Y-Achsverfahrweg: 850 mm
Technische Spezifikation
- Spindelleistung: 18 kW
- Spindeldrehzahl: 6000 RPM
Zusätzliche Informationen
Machine Benefits
Qualitative Machine Benefits
- C axis motor power: 5 kw (ge fanuc)
- C axis motor torque: 30 nm
- Pinol cone: mk4
- Body movement: 570
- Coolant consumption: 250 liter
- Lcd color display
- Manual guide program english
- 3d - three dimensional simulation: 1 piece
- Simulation at the time of processing: 1 piece
Technical Machine Benefits
- Maximum dial diameter: 600 Ø mm
- Maximum turning diameter: 400 Ø mm
- Maximum turning length: 650 mm
- Standard mirror size: 250 mm
- Maximum bar processing capacity: 65 Ø mm
- Bearing diameter: 80 Ø mm
- Number of teams: 12
- Tool holder: vdi 40
- Number of rotary tool clamping: 12
- Ac servo turret
Extra Information
The machine was taken to a corporate factory in 2011, it only worked 72 hours and processed 100 jobs. It is a brand new machine that has been regularly maintained without interruption. It will be given with all the teams.
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
