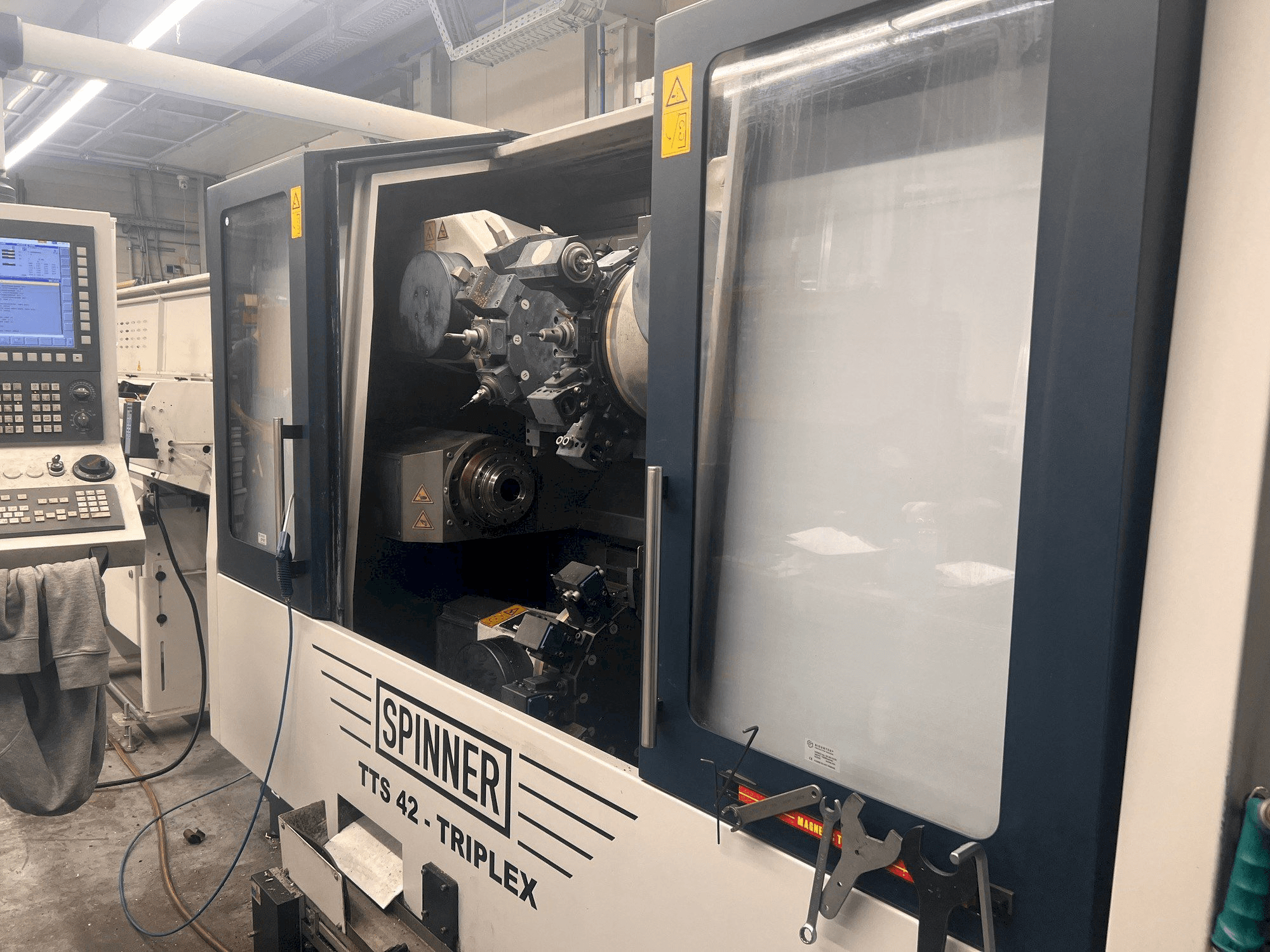

SPINNER - TTS 42DE-TUR-SPI-2020-00001

Machine Benefits

Qualitative Machine Benefits

• Unimag interface for bar loading magazines
• Parts conveyor belt
• Spinner bar loading machine type servo. Make spinner, for spindles up to 42mm passage, for material d=4-42mm, length up to 3,200 mm
• 10x external turning holder
• 12x boring bar holders d=32
• 3x recessed boring bar holders
• 6x straight agw
• 3x axial agw
• Material processed so far: aluminum, brass

Technical Machine Benefits

• Spindle 2 (counter spindle) in version up to 7,000 rpm - 42mm
• Revolver 1 : 12-fold with cnc servo drive revolver 2 : 12-speed with cnc servo drive revolver 3 : 12-speed with cnc servo drive dmjgmx
• Ejector unit integrated in counter spindle for ejecting parts into the parts catcher
• Signal lamp on top of machine in three colors red/yellow/green as status display
• Late conveyor as hinged belt conveyor exiting to the right, incl. Integrated coolant tank and return pump
• Coolant system as additional tank incl. Submersible pump 80l/4bar, high-pressure pump up to 80bar / 19. 5l/min
• Flushing gun in the work area
• Holder for messtaster on the machine bed as preparation for the use of a
• Messtaster for tool measurement switching in 3 axes.
• Extraction d=200 to the working area for connection to extraction system
