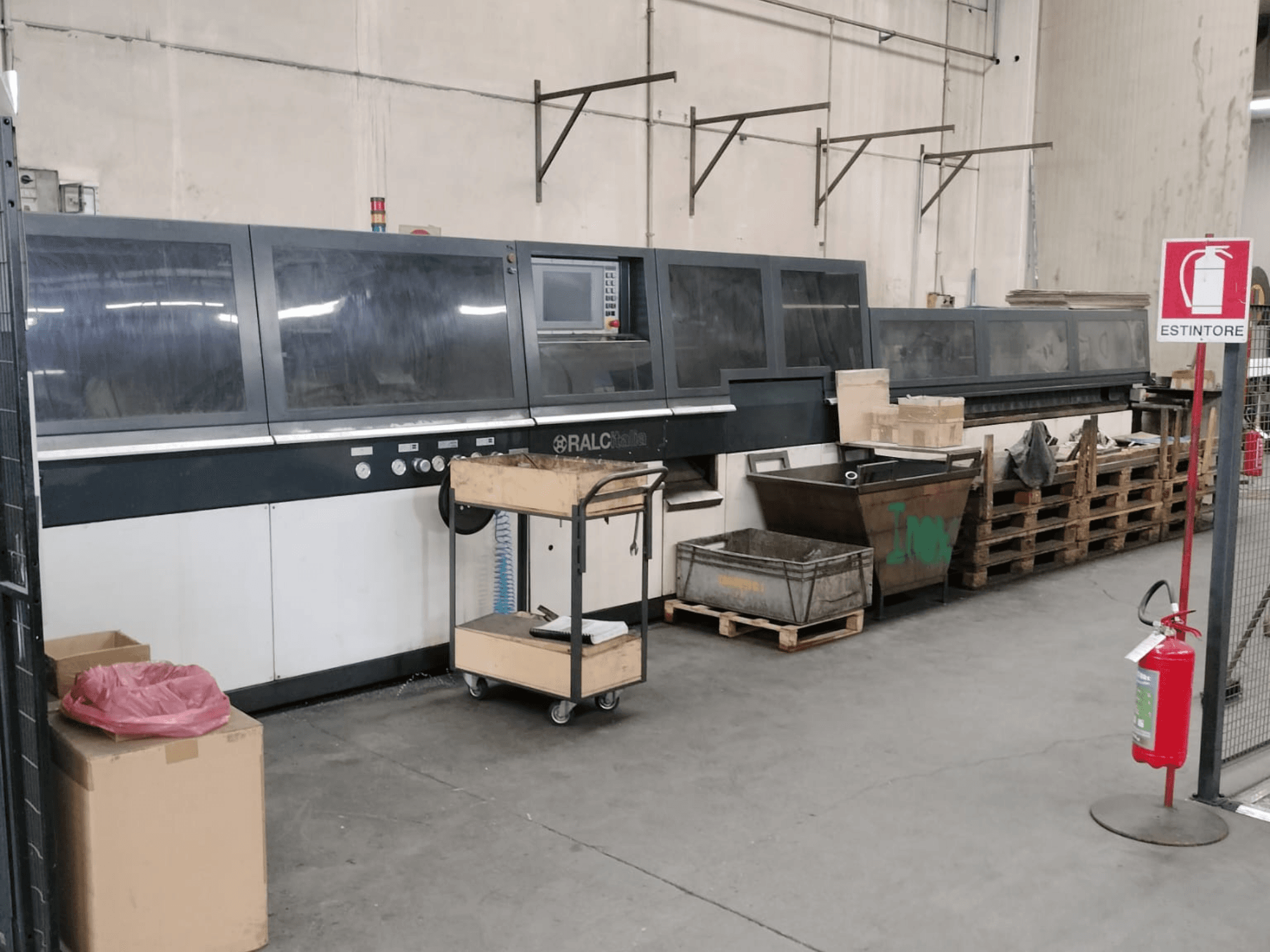

This RALC ITALIA CUTTING LINE LYBRA was manufactured in 2014. It features an automatic circular blade for cutting metal tubes, including solid, tubular, and profiled types. Key components include a bar loader up to 6500 mm, multiple cutting capabilities, and a Siemens PLC for enhanced control. Ideal for high precision metal cutting. Contact us for more information about this machine.
Übersicht
- Hersteller: RALC ITALIA
- jahr: 2014
- MODELL: CUTTING LINE LYBRA
- anwendungstyp: Sägen
- Standort: Italien
- maschinentyp: Kreissäge für Metall
Zusätzliche Informationen
Rotating table: 60° right / 60° left
Blade movement: rises from below
Piece clamping orientations: rear, front, or top
Cutting speeds: three adjustable speeds
Control: Siemens PLC with up to 10 languages
Remote assistance connection (RALC Italia)
Table cleaning system: brush and air brush
Blade lubrication: emulsifiable oil + micro-nebulization
Memory function: stores material code, part code, production list
Automatic cutting mode with bar/production batch optimization
Adjustable cutting angle
Up to 3 cuts per side
Additional equipment
Loading:
Bar loader for bars up to 6500 mm
Bar flipper for rectangular bars
Bundle loader (tube pack positioning)
Automatic bar feeding (multiple cuts possible)
Unloading:
Conveyor belt with max unloading length 3000 mm
12 short-piece unloading positions with timer (6 front + 6 rear)
Chip management:
Rear chip conveyor
Tooling/clamping:
Straight aluminum block
Tube dies for Ø50, Ø60, Ø80, Ø102 mm
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
