- ➤ Used OTEC DF10 - 2016 - For sale | gindumac.com

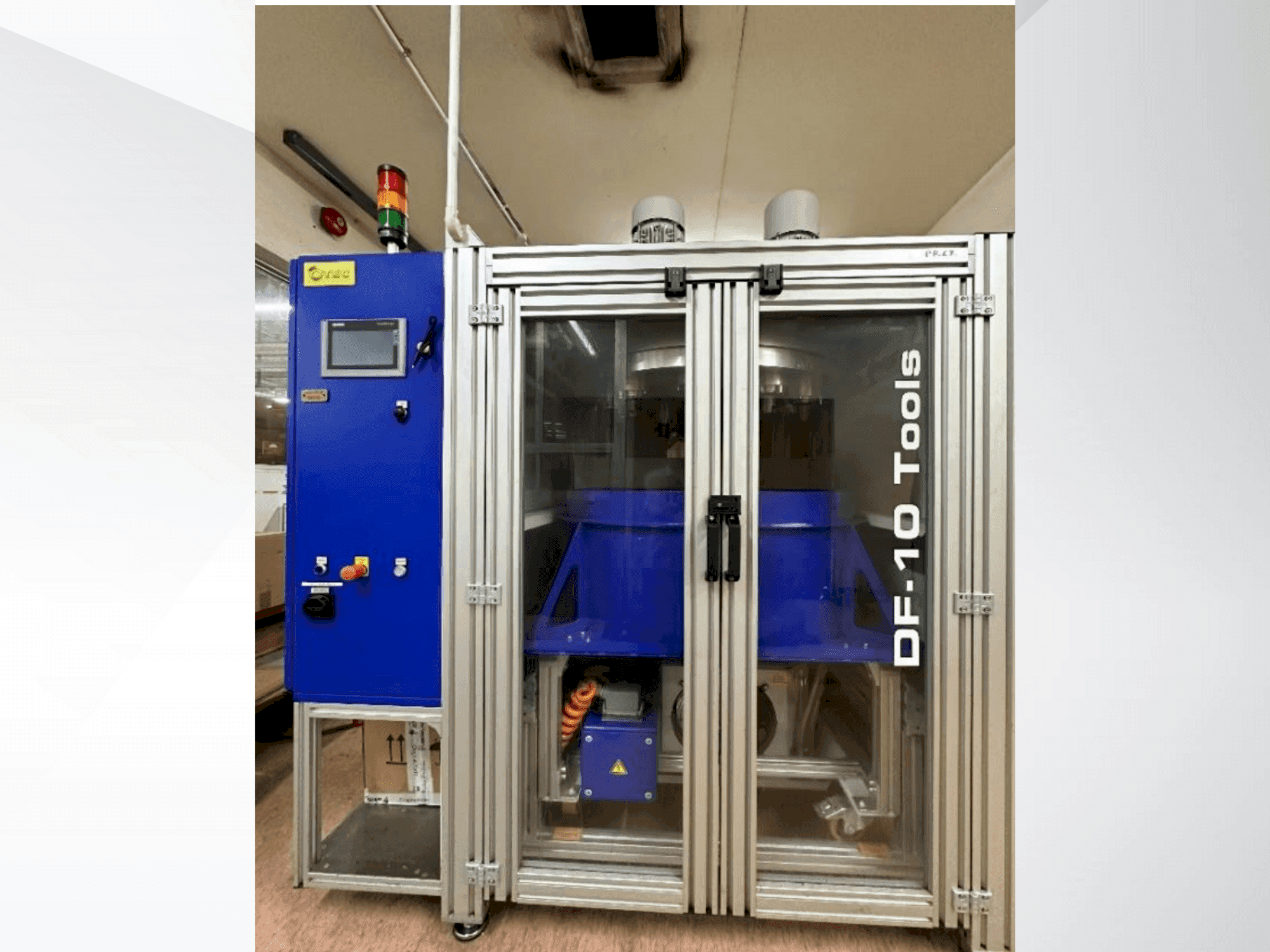

This OTEC DF10 was manufactured in 2016. It features a stainless steel process container and jog mode for easy workpiece changes. Includes additional storage for workpieces and holders, accommodating up to 10 holders. Equipped with water cooling DF-7 and a cooling compressor, it's suitable for ambient temperatures between 10-40°C. Ideal for efficient media mixing and tool handling. Reach out for more information.
Übersicht
- Hersteller: OTEC
- jahr: 2016
- MODELL: DF10
- anwendungstyp: Sonstige Werkzeugmaschinen
- Standort: Deutschland
- maschinentyp: Werkzeugmaschine
Technische Daten - OTEC DF10
Maße
- Maschinentiefe: 1370 mm
- Maschinenhöhe: 2450 mm
- Maschinengewicht: 850 kg
Zusätzliche Informationen
Additional equipment
Process container stainless steel
Jog mode possible during workpiece change
Additional storage space for workpieces and workpiece holders
Holder for 10 workpiece holders
Cooling compressor holder to mix the media for L2 ringholder
DF tools for L2 / total length 424mm (20 pieces)
Extra Information
Designed for ambient temperature range of 10-40°C Equipped with water cooling DF-7
*Internal dimensions of the process vessel (Ø, depth, usable level). (Ø 970mm, depth 450mm, usable level 300mm).
*Maximum workpiece dimensions incl. holder (real swivel space) (450mm)
*Torque/power and speed ranges of the spindles. (50 rpm.)
media (H1/400), compounds(P28), media filling quantity (kg) (50kg) *scope of delivery (number of spindles, (10)holders, (10) existing fixtures/tools(holder for Rings), filtration/separation (available).
Machine type :DF10,version: DF10_8295_SPS80.01_V80.01
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
