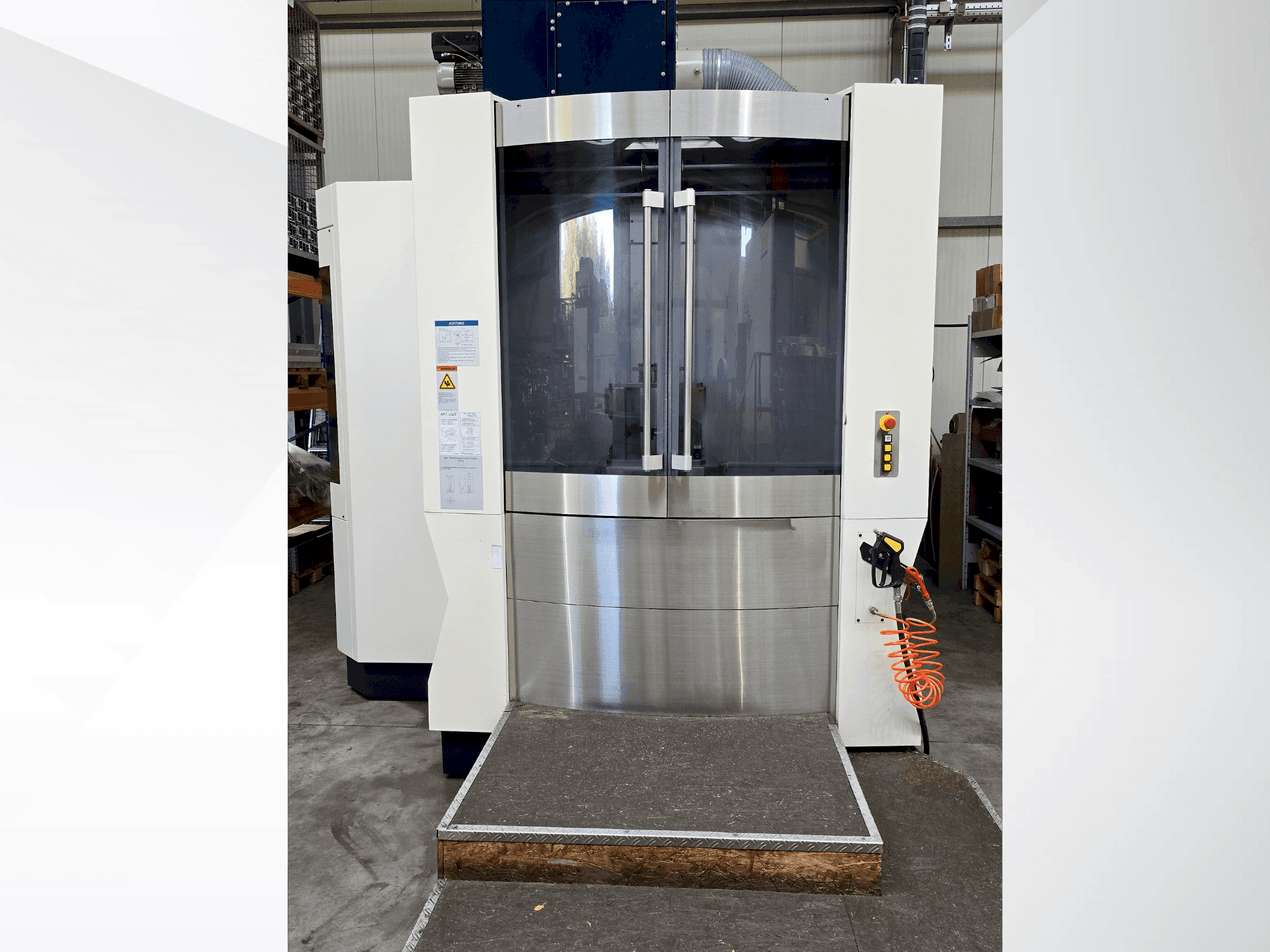

This 4-axis Makino A61nx horizontal machining center was manufactured in 2015. It features a robust spindle with speeds up to 14,000 min-¹, a torque of 240 Nm, and a power of 30 kW. The machine includes a high-capacity tool magazine with storage for 60 tools and rapid tool change times. Ideal for heavy-duty machining with a pallet size of 500 × 500 mm and maximum workpiece weight of 700 kg. For more information about this horizontal machining center, please reach out to us.
Übersicht
- Hersteller: Makino
- jahr: 2015
- MODELL: A61nx
- anwendungstyp: Fräsen
- Standort: Schweiz
- maschinentyp: Horizontal-Bearbeitungszentrum
- Marke Steuergerät: FANUC
Technische Daten - Makino A61nx
Steuerung
- Steuerungsmarke: FANUC
- Steuerungsmodell: 310iS-A
Maße
- Maschinentiefe: 4888 mm
- Maschinenhöhe: 2981 mm
- Maschinengewicht: 12000 kg
Bewegung
- Anzahl der Achsen: 4
- X-Achsverfahrweg: 730 mm
- Y-Achsverfahrweg: 730 mm
- Z-Achsverfahrweg: 800 mm
Technische Spezifikation
- Max. Werkzeuggewicht: 12 kg
- Spindelleistung: 22 kW
- Spindeldrehzahl: 14000 RPM
- Kühlmittelzufuhr durch die Spindel: Ja
Zusätzliche Informationen
Additional equipment
- Direct path measuring systems in XYZ-axis
- Core cooling of the ball screw spindles and bearings with circulating oil // Jacket cooling on spindle nose and motor
- High-speed blanking function
- Linear guides in heavy-duty design: 55 mm
- https://gindumacgmbh.zendesk.com/sales/deals/176297652#:~:text=Tool%20magazine%3A%20Storage%20capacity%2060%20tools
- Renishaw OMP60 touch probe // Renishaw Inspection Plus
- Automatic override of the corners: G62
- Restart after programme interruption
- User macro with 600 variables
- Flow monitor for coolant through the spindle
Machine Benefits
Technical Machine Benefits
- Pallet size: 500 × 500 mm
- Maximum workpiece dimensions (diameter/height): 800/1000 mm
- Direct path measuring systems, core cooling and jacket cooling, chip-to-chip time: 2. 4 s
- Memory extension for 500 main and sub-programmes
- Air curtain on the operating door
- Space requirement: approx. 8. 3 x 5 x 2. 981 m (without conveyor)
- Hours: 27600h duty cycle / 10350h processing time
- Feed from below: the transformer is external and where you put the cables (power + network) in from above or below doesn't matter. The chip system is a closed circuit, so this should be possible.
Extra Information
Transport dimensions: 4704 mm x 2466 mm x 2916 mm // The pallets do not have integrated media feed-throughs for supplying hydraulic clamping devices such as clamping force blocks. The pallet itself is clamped from below, but there are no additional media ducts or connections for further clamping devices on the pallet. A hydraulic or pneumatic clamping device connection via the pallet is therefore not provided
