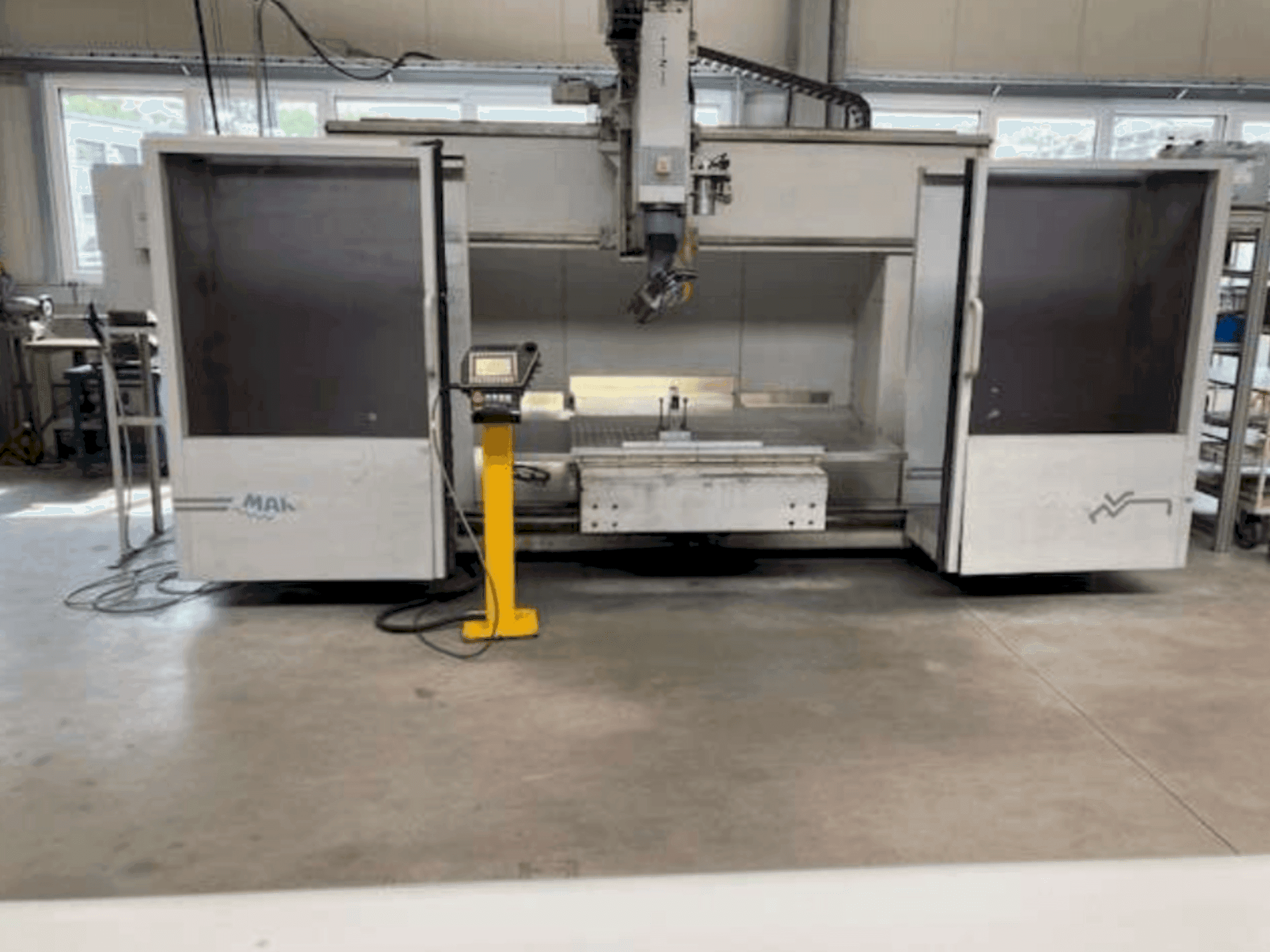

MAKA - MK 7sDE-MIL-MAK-2007-00001

• A-axis: +- 100 degrees

• C-axis: +- 270 degrees

• Verfahrwege: X-2900 mm / Y-1740 mm / Z-1050 mm / A +- 100 Grad / C +- 270Grad.

• Table size: 2000 x 1000 mm

• Adapter aluminum plates: 1200 x 980 mm, 40 x 40 mm grid, m12 thread

• Tool cooling: minimum quantity lubrication

• Tool magazine: linear tool magazine with 5 pockets for tools up to 60 mm in diameter and max. 130 mm in length

• Saw blade pocket: 1 pocket for saw blades up to 175 mm in diameter

• The last series was processed using aluminum profiles.

Operating voltage: 400V / 50 Hz Rated current: 50 A Rated power: 18.5 kW Operating pressure: 6 bar Pneumatic pressure: 6 bar

Additional equipment

• Maka protective enclosure, open at the top and with two manually opening doors at the front
