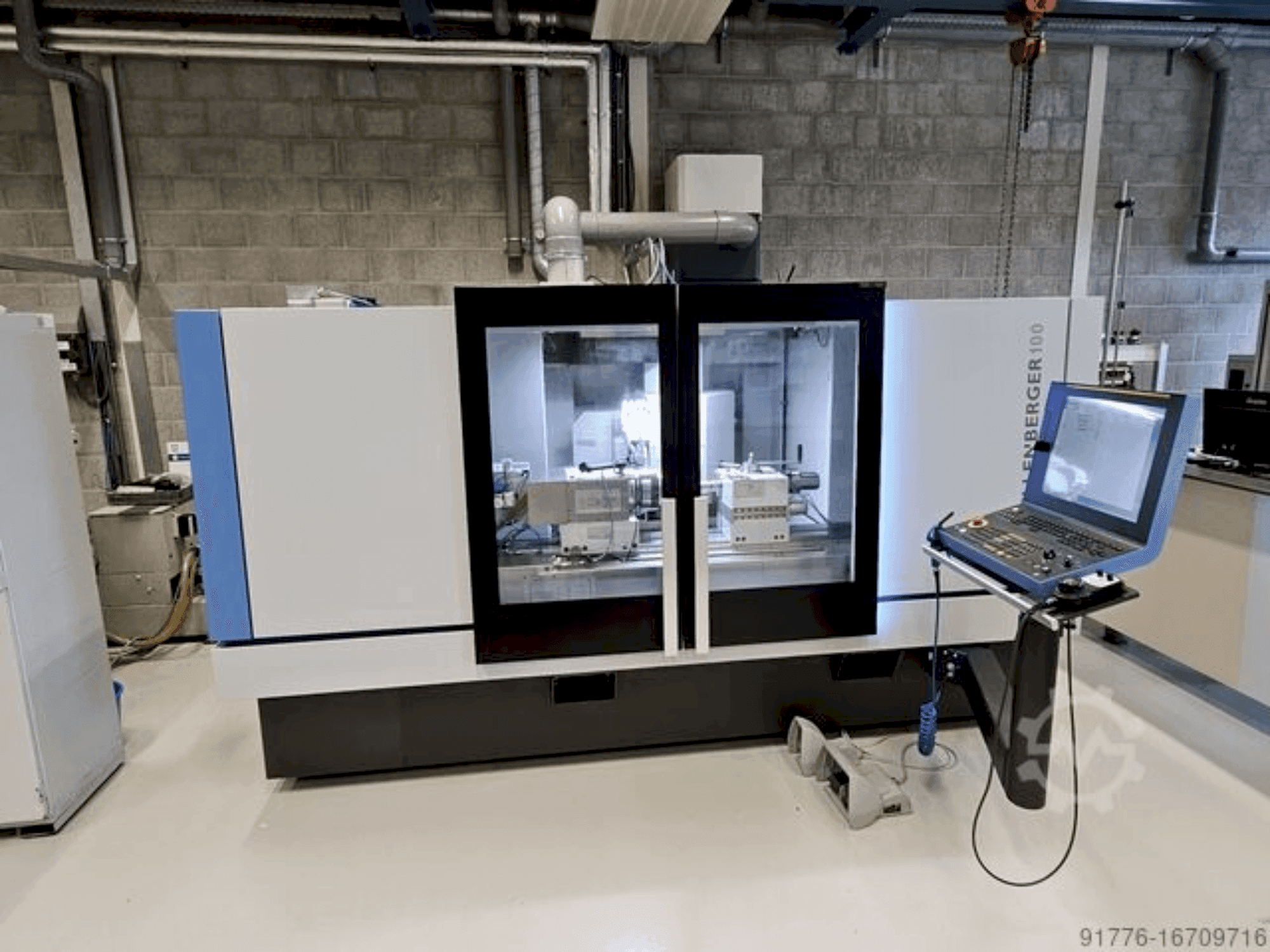

KELLENBERGER - 100NL-GRI-KEL-2020-00001

Additional equipment

• Profibus Interface for Handling System
• Electrical Driving Unit for Automatic Sliding Door
• Two-Stage Foot Switch for Permission

Machine Benefits

Qualitative Machine Benefits

• Kellenberger advanced graphic-interface
• Module for non-cylindrical contour grinding
• Numerically controlled b-axis direct drive
• Wheelheads and equipment: ur-rs 1-5-6 wheelhead
• Reinforced workhead direct drive 150 with c-axis
• Coolant supply through workhead spindle
• Dressing device on upper table
• Form dresser for internal and external grinding
• 8-m multi-grain diamond (free cut)
• Coolant filter units: paper band filter 480 litres / spb 5 full machine enclosure for emulsion prep for mist collector

Technical Machine Benefits

• Grinding wheel flange: diameter 203. 2 mm, cone 63
• Oil-air lubrication
• Swivelling diamond holder: diameter 9. 525 mm
• Single-point profiling diamond: diameter 9. 525 mm
• Form roll Ø100/120x17x40h5 x=5 w=2/2. 5
• Tactile measuring head on wheelhead
• Wheel and workpiece contact sensor on workhead 150
• Measuring control units: movomatic esz 400 or marposs p7 me
• Fluid contact sensor with magnetic base
• Balancing units for two external grinding wheels

Extra Information

Machine still under power Software: Module for Out of Round Grinding X/C Interpolation RED Solution - HMI GRAPHIC Guide for 2D Component Drawings and DXF Data ICON Guide for ISO-Based Program Design APP Out Of - Round for Non-Circular Contours (Rectangle, Polygon, etc.) Tailstock 150 with Pneumatic Sleeve Retraction Sleeve Taper: Morse 4 Sleeve Stroke: 50 mm Peak Force Adjustable 200-700 N Max. Loading Capacity: 150 kg Pneumatic Assistance and Micro-Adjustment for Fine Correction Clamping Devices: Quickchange System from Erowa Heyn 3-Jaw Chuck Collet Adapter Magnetholder
