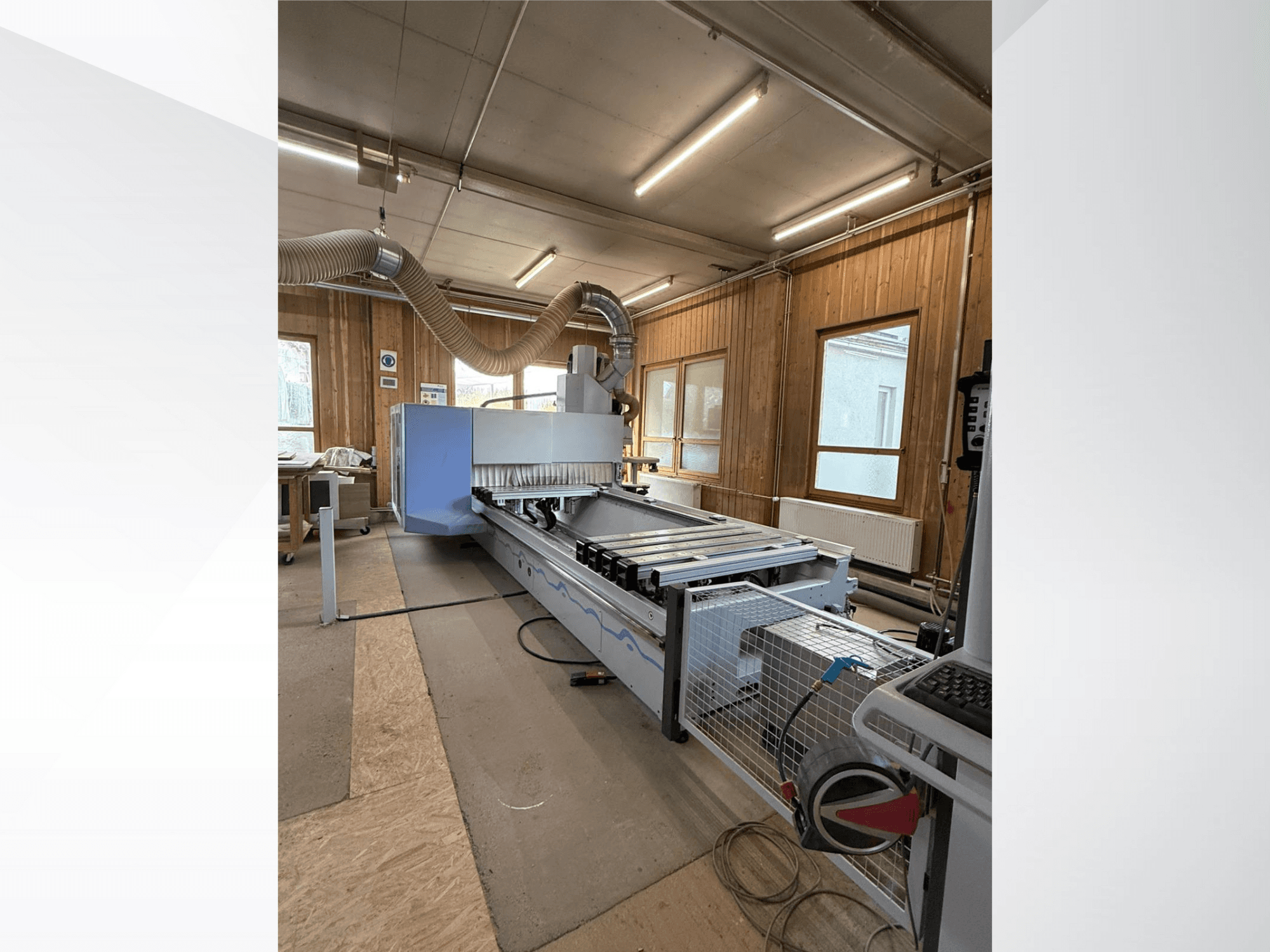

This 4-axis HOMAG BMG311 VENTURE316L was manufactured in 2014. It features a rack and pinion drive for X and Y axes, ball screw for Z axis, and a maximum travel speed of 70 m/min. The machine can handle workpiece lengths up to 4200 mm and widths up to 1400 mm. It includes a console table with vacuum clamps and an Easyedge gluing unit. If you are looking to get high-quality woodworking capabilities consider the HOMAG BMG311 VENTURE316L machine we have for sale. Contact us for more information.
Übersicht
- Hersteller: HOMAG
- jahr: 2015
- MODELL: BMG311 VENTURE316L
- anwendungstyp: CNC-Bearbeitung
- Standort: Deutschland
- maschinentyp: CNC-Holzbearbeitungszentrum
- Verfügbar ab: 01/03/2026
Zusätzliche Informationen
Max Workpiece Length:
Single: 4200 mm
Pendulum: 500 - 2440 mm
Workpiece Diameter 25 mm:
Single: 4375 mm
Pendulum: 500 - 2616 mm
Max Workpiece Width:
Front stop: 950 mm
Rear stop: 1400 mm
Milling Workpiece Diameter 25 mm:
Front stop: 1050 mm
Rear stop: 1550 mm
Max Workpiece Thickness: 270 mm including clamping device
Clamping Table:
Console table K
Consoles incl. front stop: 8 pcs.
Rear stop (fixed): 5 pcs.
Lift rails: 6 pcs.
Console length: 1340 mm
Stop bolts lift from console surface: 140 mm
Side Stops:
Left: 2 pcs.
Right (mirror position): 2 pcs.
Vacuum Clamps:
16 pcs. 160x115x100 mm
8 pcs. 125x75x100 mm
Easyedge gluing package
Easyedge manual end cap gluing device
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
