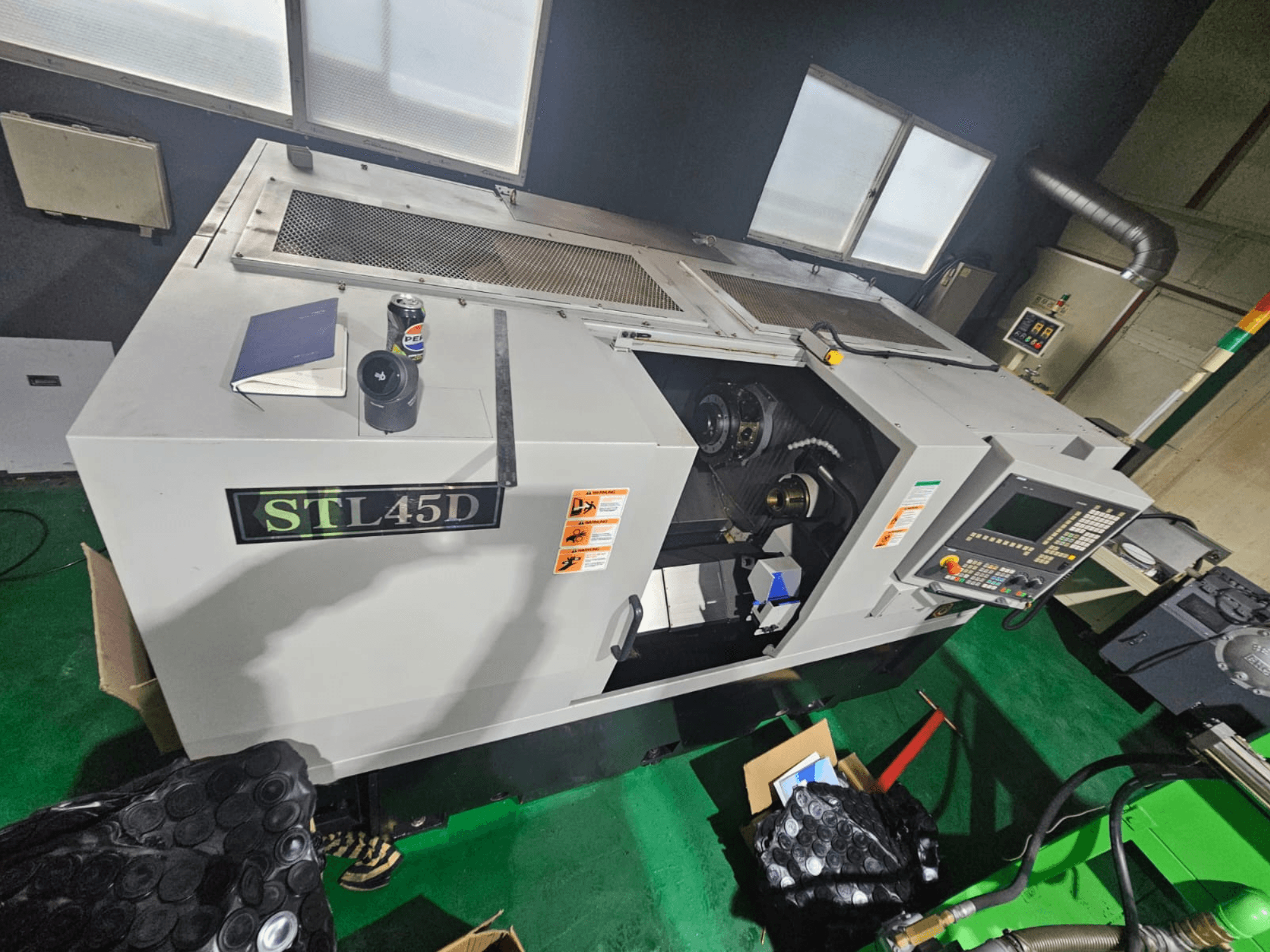

Hanwha - STL45DKR-TUR-HAN-2011-00001

• Capacity:

  • Max turning diameter (main spindle): Ø45 mm

  • Max chucking diameter (sub spindle): Ø45 mm

• Strokes:

  • Z1/Z2: 250 mm (Fix GB)

  • Z2/Y2/X2: 185 mm

  • Z3/Y3/X3: 80 mm

  • Zs: 726 mm

• Sub spindle: 5,000 rpm; 5.5 kW

• Turrets (main/sub, driven tool): 6,000 rpm; 2.2 kW; 12 stations (main) + 12 stations (sub)

• Driven tool capability: max drilling Ø12 mm; max tapping M8; max milling Ø12 mm

• Main turret (fixed tool): max drilling Ø18 mm; max tapping M18; max milling Ø18 mm

• Sub turret (fixed tool): max drilling Ø12 mm; max tapping M12; max milling Ø12 mm

• General:

  • Power consumption (cable size): 20 kVA (min 5 SQ)

  • Air flow rate: 20–30 L/min

Additional equipment

• Standard: chip conveyor; product conveyor; MPG (4-axis) handwheel

• Optional: bar feeder; foot switch; M-code air blow; 3-jaw power chuck; gantry loader; oil skimmer
