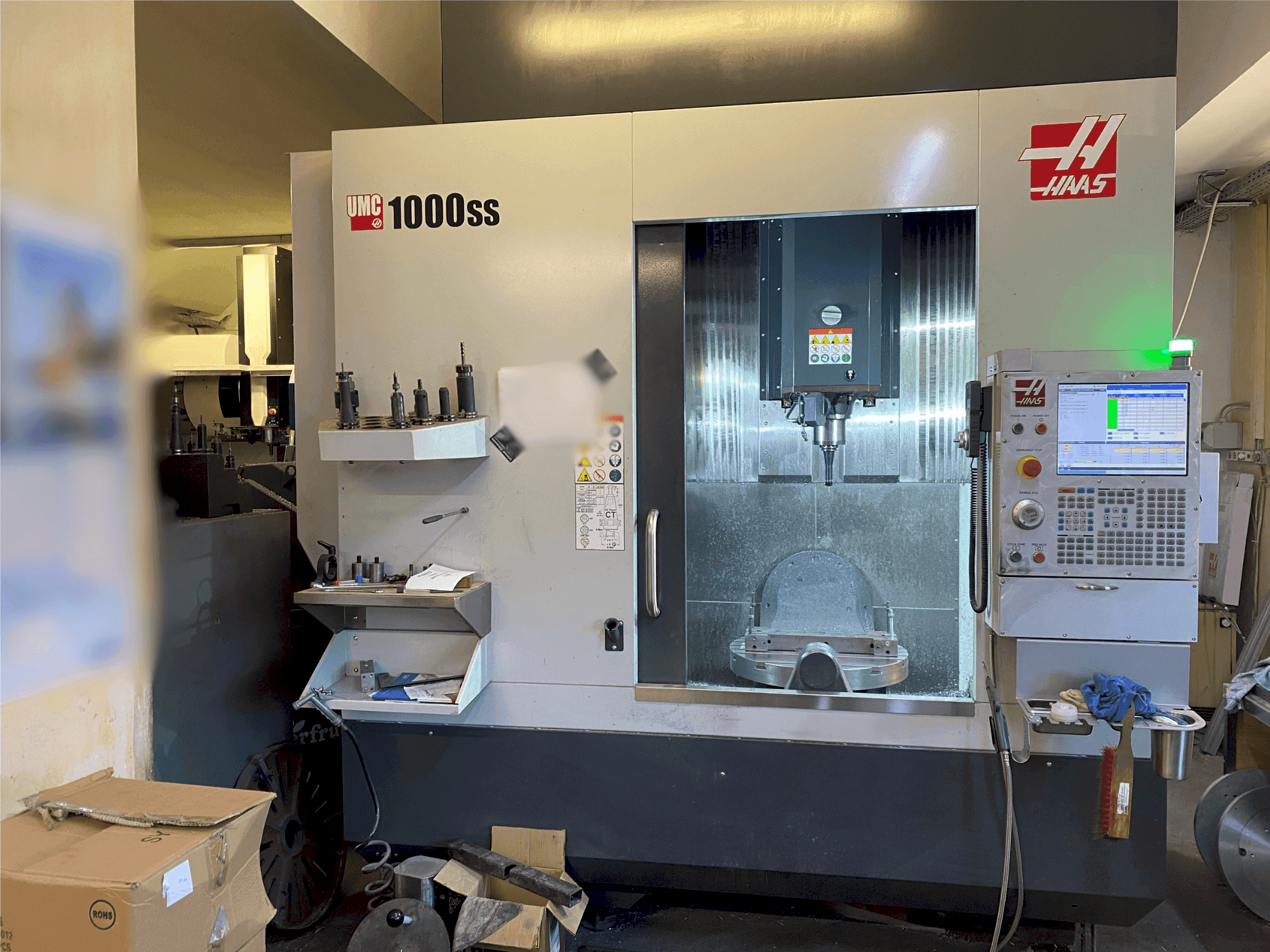

HAAS - UMC-1000SSHU-MIL-HAA-2021-00003

Machine Benefits

Qualitative Machine Benefits

• Extra features (above basic haas ss version)

Technical Machine Benefits

• Through-spindle coolant (21 bar)
• Through-spindle coolant (21 bar)
• P-cool

Extra Information

Basic Features UMC-1000SS: CT Option: 12,000 rpm spindle, 40-taper, 30 hp (22.4 kW) vector drive, serial direct. Normal program memory: 1 GB of onboard memory for program storage and backups. Cooling system: 208-liter (55-gallon) coolant tank with a 3/4 hp (0.6 kW) pump; provides 19.9 l/min at 2 bar pressure (5.25 gallons/min at 30 psi), and features a multi-stage labyrinth design that prevents chips from entering the coolant pump. CNC controller cabinet cooler: Reduces the internal temperature of the controller cabinet, improving reliability and extending the life of system components. No external power supply required. Dynamic workpiece shifts and tool-center control: Software features that simplify task setups on 4- and 5-axis machines. Includes rotary axis calibration tool. Quick power failure detection module: Detects power outages or significant voltage drops and quickly and safely stops all axis movements in a controlled manner. Ethernet interface: Enables easy file transfers to and from the machine over a local wired network. HaasConnect: Remote monitoring of Haas machining equipment. Requires the machine to be connected to the internet. HaasDrop wireless file transfer: A fast and convenient method for transferring images, videos, or even program files from mobile devices directly into the Haas CNC machines’ next-generation controller. Available for both Android and iOS devices. Second home position: Allows the operator to quickly set the machine axes to a user-defined home position. Haas high-speed machining: Allows you to use the machine at higher feed rates and more complex tool paths without stalling or excessive power requirements. M130 media display M-code: Retrieves media files (images, videos, PDFs) from memory and displays them on the control screen while the program is running. Available only with NextGen control. Remote handwheel with color LCD: Allows access to the machine's work area for part setup, replacement, or inspection while still controlling the machine. Precise scale feedback on B and C rotary axes: Increases accuracy and repeatability. Synchronized tapping: Synchronized tapping with built-in tapping cycles and up to 8x retract speeds. Safe run: A software function that reduces the likelihood of significant machine damage during a crash. High-speed side-mount tool changer: 40-taper, 30+1 tool capacity. Roof cover: Effectively prevents chips and coolant from escaping the machine during machining. The built-in preparation on the top cover allows for optional condensation and smoke extraction systems. Wireless intuitive touch probe system: Renishaw system. Includes Haas visual programming system, macros, spindle orientation, and coordinate rotation and scaling options. Additional Options UMC-1000SS: Through-spindle coolant (300 psi / 21 bar): Provides high-pressure coolant directly through the cutting tool. Chip conveyor: High-speed, large-capacity chip removal for greater efficiency. Discharges chips at the standard 55-gallon drum height. Programmable coolant nozzle: Multi-position nozzle that automatically directs coolant precisely at the cutting tool. Additional coolant filter system: A bag-type filter system that filters out particles larger than 25 microns from the coolant. Chip tray filter kit: Additional chip filter kit that prevents chips from entering the coolant system. Includes a 200-micron filter and a metal chip tray basket. 30 pull taps.
