HAAS - VF-3SSSI-MIL-HAA-2021-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- ➤ Used HAAS VF-3SS Vertical Centre For sale | gindumac.com

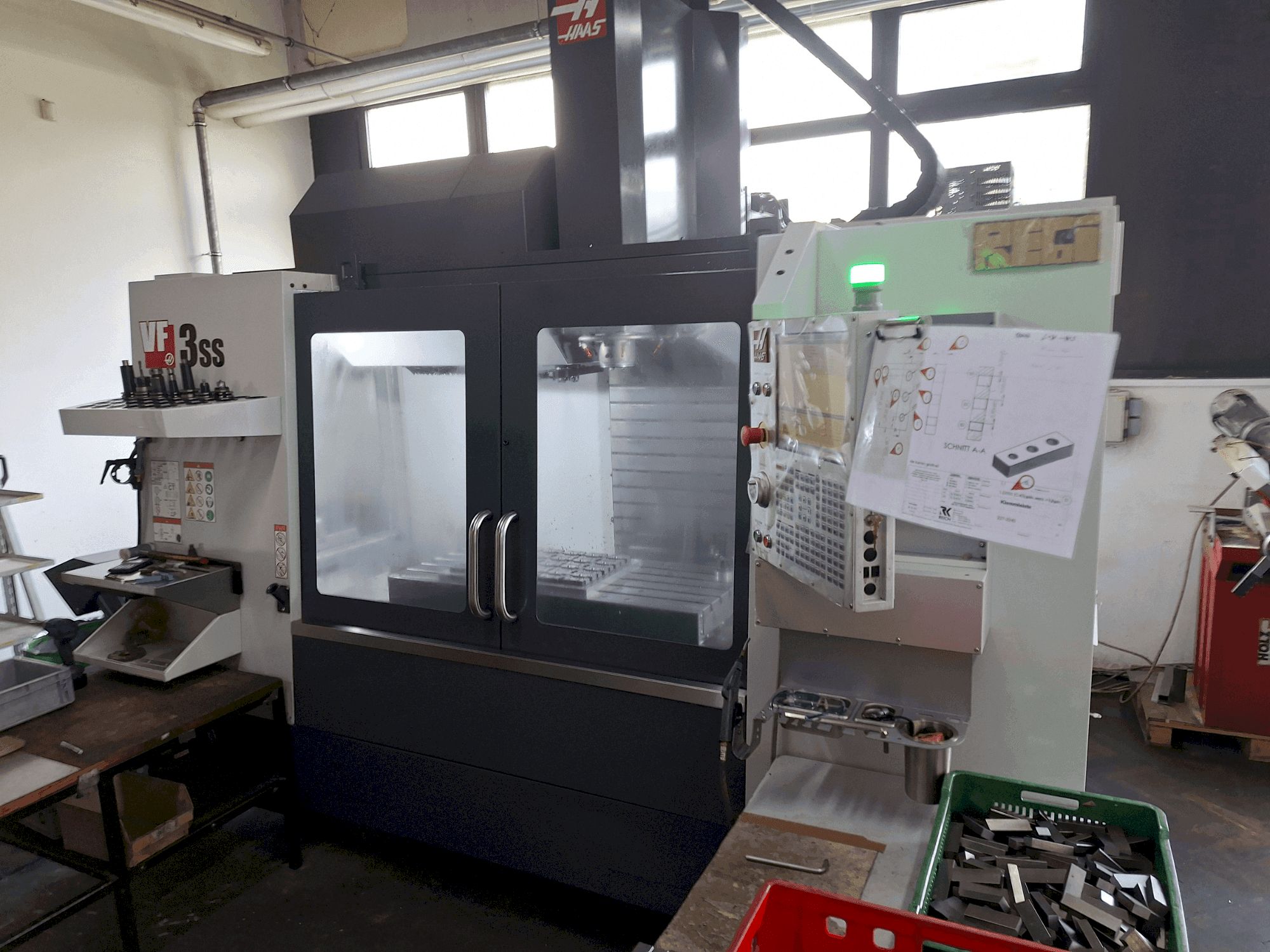

This 3-axis HAAS VF-3SS Machining Centre was manufactured in 2021. It features a robust 1219 mm x 457 mm table, capable of handling up to 794 kg. Equipped with a high-speed 12000 rpm spindle, it delivers 22.4 kW of power and 122.0 Nm torque. The machine offers rapid movements up to 35.6 m/min on all axes and includes a 30+1 side-mount tool changer for efficient operation. Ideal for precision machining, buy this HAAS VF-3SS Machining Centre. Contact us for further details.
Übersicht
- Hersteller: HAAS
- jahr: 2021
- MODELL: VF-3SS
- anwendungstyp: Fräsen
- Standort: Slowenien
- maschinentyp: Vertikal-Bearbeitungszentrum
Technische Daten - HAAS VF-3SS
Bewegung
- Anzahl der Achsen: 3
- X-Achsverfahrweg: 1016 mm
- Y-Achsverfahrweg: 508 mm
- Z-Achsverfahrweg: 635 mm
Technische Spezifikation
- Spindelleistung: 22.4 kW
- Spindeldrehzahl: 12000 RPM
- Werkzeugaufnahme: SK 40
Zusätzliche Informationen
Additional equipment
- Coolant Capacity: 208 L
- Air Requirements: 113 L/min @ 6.9 bar, Inline Air Hose: 3/8 in, Coupler (Air): 3/8 in, Air Pressure Min: 5.5 bar
Machine Benefits
Qualitative Machine Benefits
- Bearing lubrication: air / oil injection
- Cooling: liquid cooled
Technical Machine Benefits
- Tapper size: ct40, bt40, hsk-a63
- Max cutting feedrate: 21. 2 m/min
- Max thrust (x, y, z): 13723 n, 13723 n, 17450 n
- Tool-to-tool (avg): 1. 80 s
- Chip-to-chip (avg): 2. 40 s
- Table dimensions: length: 1219 mm, width: 457 mm, t-slot width: 15. 90 mm to 16. 00 mm, t-slot center distance: 80 mm, number of std t-slots: 5, max weight on table: 794 kg
- Electrical specification: input ac voltage (3 phase) - low: 220 vac, full load amps (3 phase) - low: 70 a, input ac voltage (3 phase) - high: 440 vac, full load amps (3 phase) - high: 35 a
Extra Information
Shipping Dimensions and Weights:Domestic Pallet: 387 cm x 251 cm x 269 cm, 5316.0 kg Export Pallet: 333 cm x 233 cm x 257 cm, 5316.0 kg Domestic Pallet w/Conveyor: 387 cm x 251 cm x 269 cm, 6260 kg Export Pallet w/Conveyor: 389 cm x 233 cm x 257 cm, 6260 kg Domestic Pallet w/50+1 SMTC: 387 cm x 251 cm x 310 cm, 5525 kg Export Pallet w/50+1 SMTC: 333 cm x 233 cm x 257 cm, 5525 kg Domestic Pallet w/Conveyor & 50+1 SMTC: 387 cm x 251 cm x 310 cm, 5752 kg Export Pallet w/Conveyor & 50+1 SMTC: 389 cm x 233 cm x 257 cm, 5752 kg Domestic Pallet w/70+1 SMTC: 386 cm x 252 cm x 342 cm, 6278.0 kg Export Crate w/70+1 SMTC: 386 cm x 258 cm x 359 cm, 6278.0 kg
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
