GEWEMA - Axolox 4021DE-MIL-GEW-2024-00001

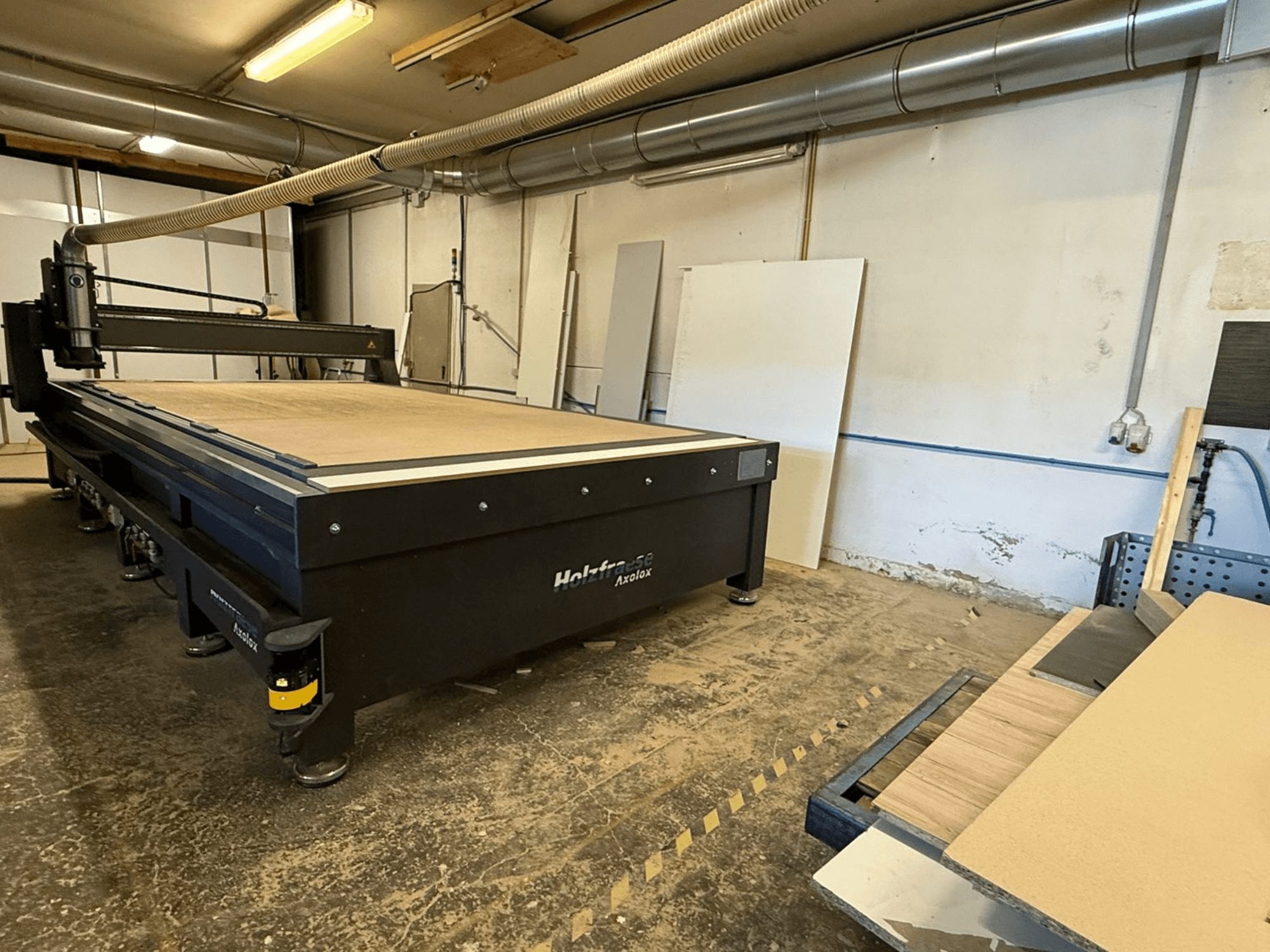

• Model and size: CNC Wood Router Axolox 4021 (19 mm Forescolour), 4000 x 2100

• Construction: Milling table (X-axis), gantry (Y-axis), Z-axis unit in compact plate, base frame with adjustable machine feet

• Milling bed/sacrificial plate: 19 mm MDF; table openings pre-equipped lengthwise and crosswise

• Mechanics set: Profile guides with carriages, ball screw, precision rack and pinion

• High-frequency spindle: 2.2 kW, with union nut, frequency converter (VFD), line filter, braking resistor, and collet set

• Power connection (machine): 16 A, 400 V AC required

• Dust extraction connection: Requires a 100 mm inner-diameter hose to connect to the customer’s existing dust extraction system

• Control set (pre-assembled in cabinet): Control cables, energy chains, planetary gearboxes, stepper motors, high-performance power stages, power supply, toroidal transformer; sensors on each axis

• Automatic control: Switching relays for automatic control of the existing extraction system

• Dust protection: Brush seals

• Safety devices (CE-compliant): Traveling extraction device; laser scanner mounted on one side for workspace monitoring (275° field, 5.5 m range)

• Handheld control unit: All machine functions, including Emergency-Stop and dead man’s switch

• Tool length sensor: Tool length measurement and active zero-point shift

• Control software/HMI: Beamicon2 (2020)

• Computer/HMI: Mini PC with Windows 10 in ergonomic console; built-in monitor, mouse, keyboard

• Vacuum table: Milling bed designed as a vacuum table; six adjustable sectional elements; cross-table made of PE with MDF top plate

• Customer-supplied sacrificial plate for vacuum table: 3 mm HDF, raw on both sides, 3000 x 2100 mm

Additional equipment

• Vacuum pump: Becker oil-lubricated rotary vane pump, 360 m^3 capacity; power connection 16 A, 400 V plug required

• External dust extraction system and 100 mm ID hose (required for connection; not included with the machine)

• CAD/CAM and design software licenses and modules:

  • Rhino 7.0 (CAD)

  • Esticam V12 (CAM)

  • SmartWOP Wood Router Edition (incl. 1 year support)

  • SmartWOP modules: CNC connection – wood router; special volume slanted cabinet; special volume corner cabinet; room design; automatic nesting of panels; Panel Planner (move/order/rotate parts on raw material)

  • RhinoNest extension for Rhino 6.0 (nesting components onto panels)
