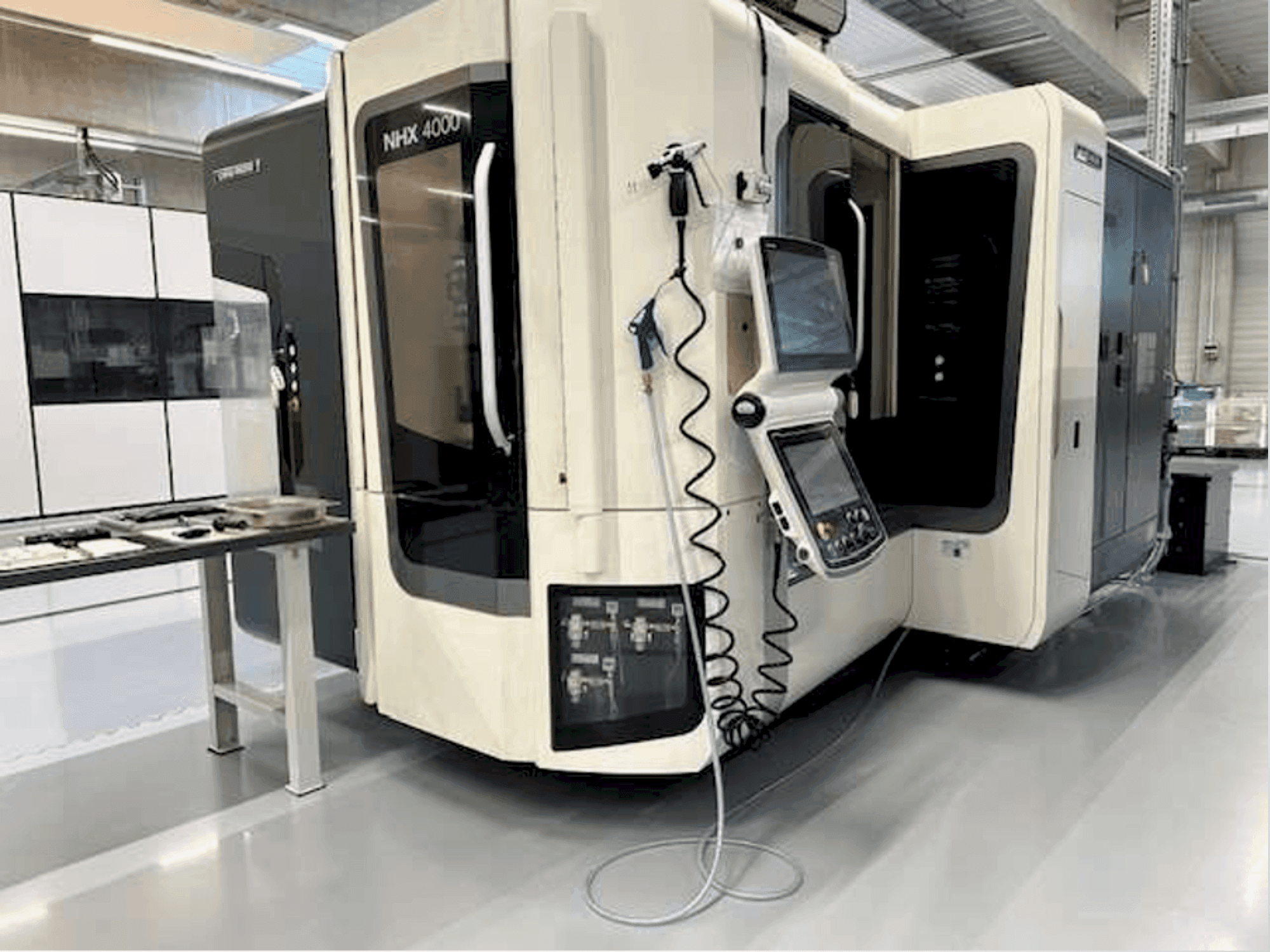

DMG MORI - NHX 4000DE-MIL-DMG-2020-00002

Additional equipment

• Air filter unit, for drying and oil separation of the compressed air supplied.

Machine Benefits

Qualitative Machine Benefits

• Frequency 50 hz
• Metric setting
• Schneider transformer 54 kva
• Mpc (machine protection control)
• Options for control: milling pockets and islands, fast canned cycles
• Technology: english screen display, dmqp: interlit- tmf300/600 compact filter system 70 bar coolant supply through the spindle (ikz), additional 5 bar external spindle flushing, with lifting pump
• Retrofits: conversion of the tool holder from bt40 to sk40, 10 additional m commands, command for inclined work surface, outer high-speed jump, function for engraving texts, signage and screen language in german

Technical Machine Benefits

• Spindle: torque increase spindle 37/26/22 kw, 15000 min-1
• Tool holder cone for bt-40 tool holder with face contact
• Nc table with a minimum indexing of 0. 001°
• Measuring probe (spindle) with optical signal transmission, renishaw omp60 + workpiece/fixture measurement
• Probe (magnescale) for tool measurement and tool breakage control in the work area
• Use of water-soluble coolants (emulsion)
• Scraper belt conveyor with drum filter, rear ejection
• Interface for high-pressure coolant system 70 bar
• Interface for oil mist separator (suction opening, Ø 150 mm + electrical parts) (afs 1100)
• Voltage at customer 400 v

Extra Information

Machine still under power
