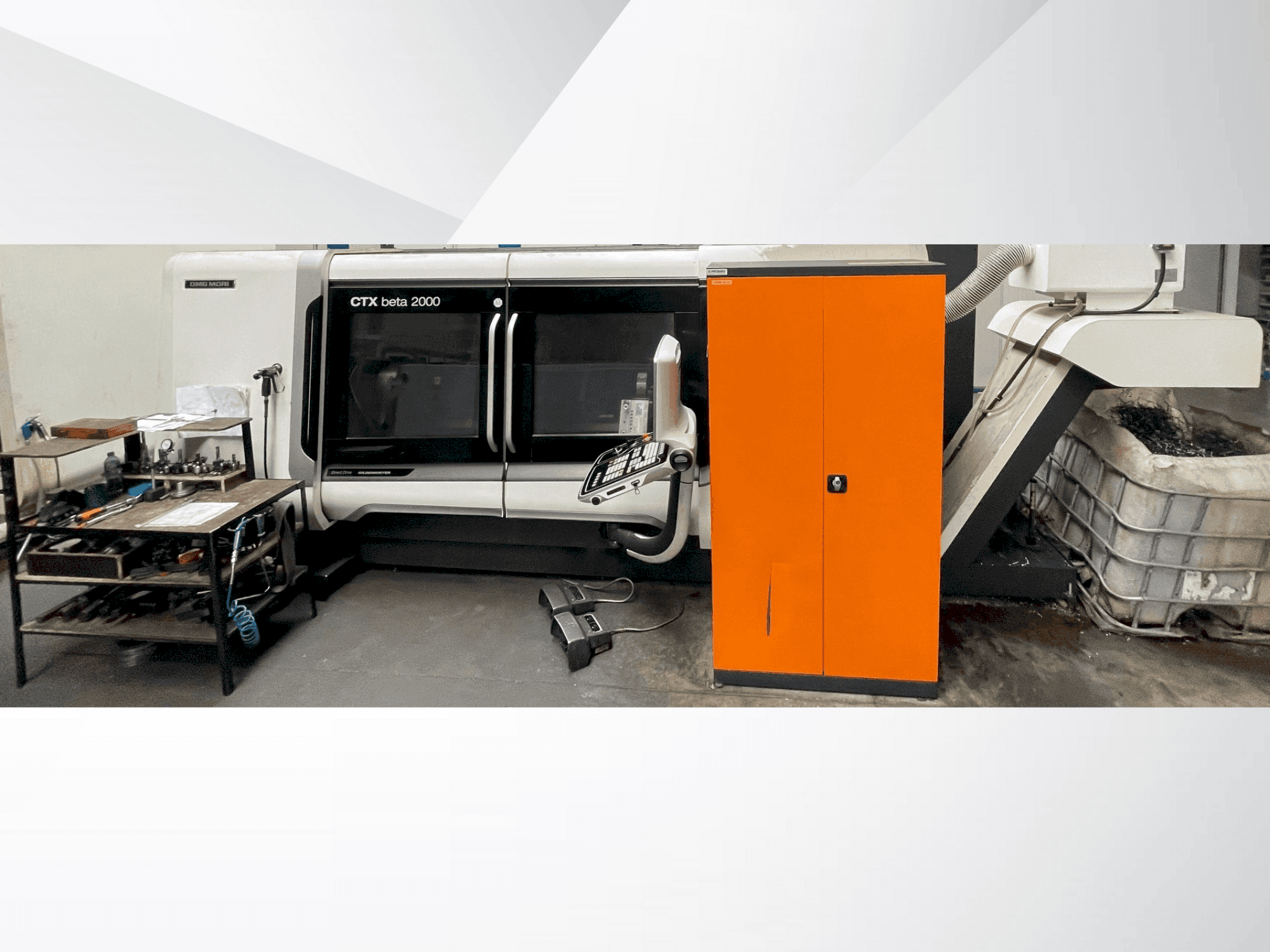

DMG MORI - CTX 2000PL-TUR-DMG-2020-00002

Machine Benefits

Qualitative Machine Benefits

• Large number of turning holders for vdi 50 turrets, holders for hobbing gears, grooves, gear teeth, etc. , large block holder (sauter) for holding boring tools, driven angle milling attachment (mt), 2 × driven straight holders (ews).
• Slide traverse x / ±y / z: 415 / ±75 / 2025 mm
• Hydraulic oil capacity: approx. 40 l
• Max pressure: 90 bar
• Clamping device pressure (max): 10–70 bar
• Coolant tank capacity: approx. 250 l
• Pump power: 0. 85 kw
• Pump nominal delivery at 5 bar: 20 l/min
• Room temperature: +15 to +35 °c
• Max relative air humidity: 75%

Technical Machine Benefits

• Ism102: 33 kw
• Ism102plus: 40 kw torque (100% ed)
• Ism102: 580 nm
• Ism102plus: 1700 nm
• Thrust (s6 - 40%): 9 / 9 / 13 kn
• Max turning length: 2000 mm
• Bar capacity: 102 mm
• Clamping chuck diameter: 315 mm
• Tool system: din 69880 (vdi 3425, page 2)
• Tool shank diameter: 50 mm

Extra Information

Machine still under power. The machine is equipped with a fume extraction system, chip conveyor, Siemens CELOS control system with touchscreen, automatic tailstock, automatic steady rest unit, hydraulically clamping chuck, and increased coolant pressure through the tool spindle.
