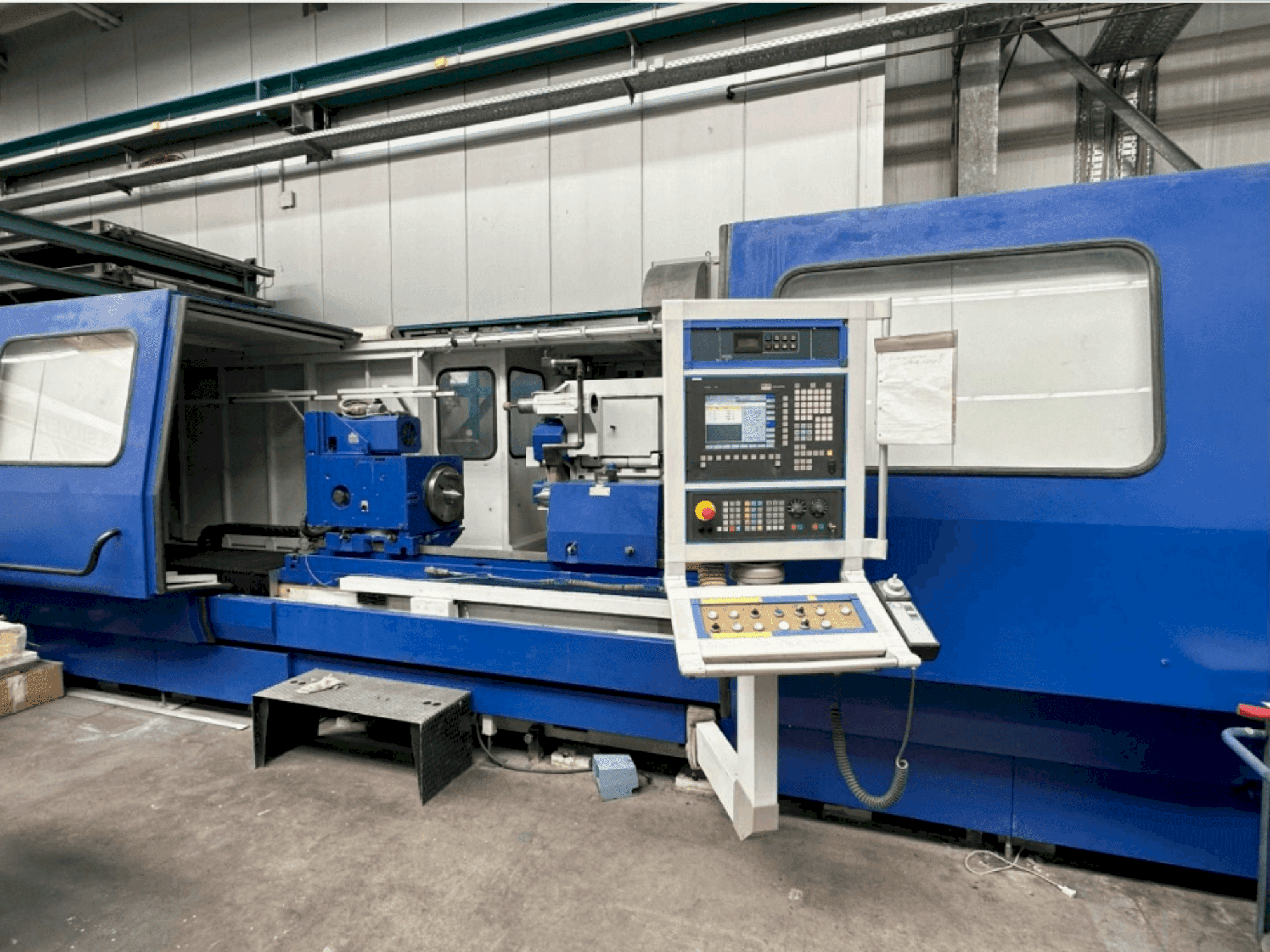

Cetos - BUC 63C CNC/2000DE-GRI-CET-2003-00001

Additional equipment

• Equipped with an electrical quill travel of 80 mm (overhauled)
• Grinding Spindle: Overhauled
• Grinding Wheel Handling: Broad grinding wheel support, manual steadies, wheel-changing facility with a grinding wheel stand
• Resy coolant management system
• Automatic and manual steadies included
• The machine has been mechanically overhauled
• The bed and grinding spindle are in refurbished condition

Machine Benefits

Qualitative Machine Benefits

• Technical machine benefits: mechanically overhauled, broad grinding wheel support
• Qualitative machine benefits: overhauled components including tailstock with electric quill stroke, spindle head, grinding spindle, and machine bed
• Possibility to grind conical holes during internal grinding because of rotated headstock
• The maximum workpiece weight for grinding without tailstock or steady rest is 300 kg, including clamping device, according to the operating instructions
• The maximum diameter of the internal grinding wheel is 57 mm. See page 8. 185 of the operating instructions.
• The machine has dressing systems in jog or automatic mode. See page 8. 43 of the operating instructions.
• Marposs measuring probe is installed.

Technical Machine Benefits

• Center distance: 2000 mm
• Swing diameter: 630 mm
• Maximum workpiece weight: 4000 kg
• Workpiece drm: 630 mm / workpiece x: 2000 mm
• Power supply: 3x400v, 50hz / control voltage: 230v ac, 24v dc / total power consumption: 65/80 kva / machine bed material: cast iron (gray iron)
• Tailstock equipped with electrical quill travel and adjustable clamping force / grinding spindle swivel range: +30° to -10° / automatic infeed range: 0. 0005 mm to 380 mm / rapid traverse speed: 10,000 mm/min / pneumatics: working air pressure: 0. 5 mpa, air consumption: 800 l/min / lubrication: grinding spindle lubrication and guideways and infeed mechanisms lubrication
• The headstock can be equipped with a three-jaw chuck
