BUSELLATO - Easy Jet 7.10 D AH/119579HU-CNC-BUS-2016-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Holzbearbeitung
- ➤ Used BUSELLATO Easy Jet 7.10 D AH/119579 | For Sale

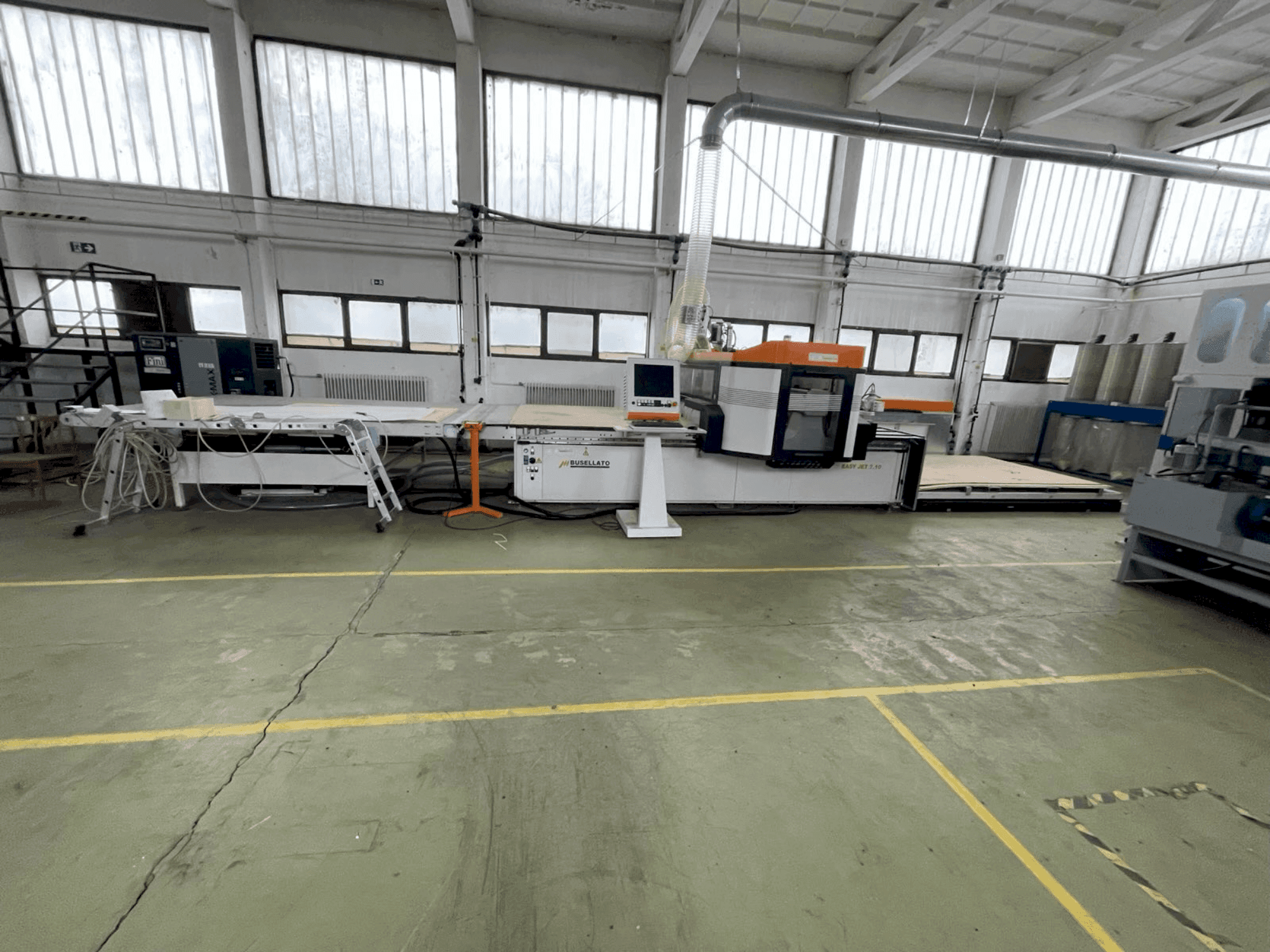

This 3-axis BUSELLATO Easy Jet 7.10 D AH/119579 was manufactured in 2016. A CNC Wood Machining Centre featuring a working area of 3200 mm by 1300 mm, it boasts a spindle power of 12 kW and speeds up to 24,000 RPM. Equipped with an automatic tool changer supporting 8-16 positions and a robust vacuum system for secure clamping. Ideal for precision woodworking, the BUSELLATO Easy Jet 7.10 D machine we have for sale. Contact us for further details regarding this CNC Wood Machining Centre.
Übersicht
- Hersteller: BUSELLATO
- jahr: 2016
- MODELL: Easy Jet 7.10 D AH/119579
- anwendungstyp: CNC-Bearbeitung
- Standort: Ungarn
- maschinentyp: CNC-Holzbearbeitungszentrum
Technische Daten - BUSELLATO Easy Jet 7.10 D AH/119579
Maße
- Maschinentiefe: 5500 mm
- Maschinenhöhe: 2500 mm
- Maschinengewicht: 6000 kg
Bewegung
- X-Achsverfahrweg: 3200 mm
- Y-Achsverfahrweg: 1300 mm
- Z-Achsverfahrweg: 150 mm
Technische Spezifikation
- Anzahl der Werkzeuge: 8
- Spindelleistung: 12 kW
- Spindeldrehzahl: 24000 RPM
Zusätzliche Informationen
Additional equipment
- Automatic Tool Changer (ATC)
- Drilling Head with vertical and horizontal spindles
- Integrated grooving saw
- Vacuum system with multiple zones
- Dust extraction ports
- Safety features such as light curtains, safety mats, or full enclosures
Machine Benefits
Qualitative Machine Benefits
- The machine has never been in production and is currently resting in a warehouse disassembled.
- The machine can be installed at the buyer's site, if necessary with a suction unit and compressor.
- Busellato easy jet 7. 10 d type, with dosing and drying system
Technical Machine Benefits
- High spindle speed up to 24000 rpm
- Powerful spindle motor of 12 kw (16 hp) or higher
- Fast axes speeds: x-axis up to 100 m/min, y-axis up to 60 m/min, z-axis up to 20 m/min
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
