Biglia - B 501 MBBG-TUR-BIG-1997-00001
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Werkzeugmaschinen
- Used Lathe machine BIGLIA B 501 MB - 1997 - for sale | gindumac.com

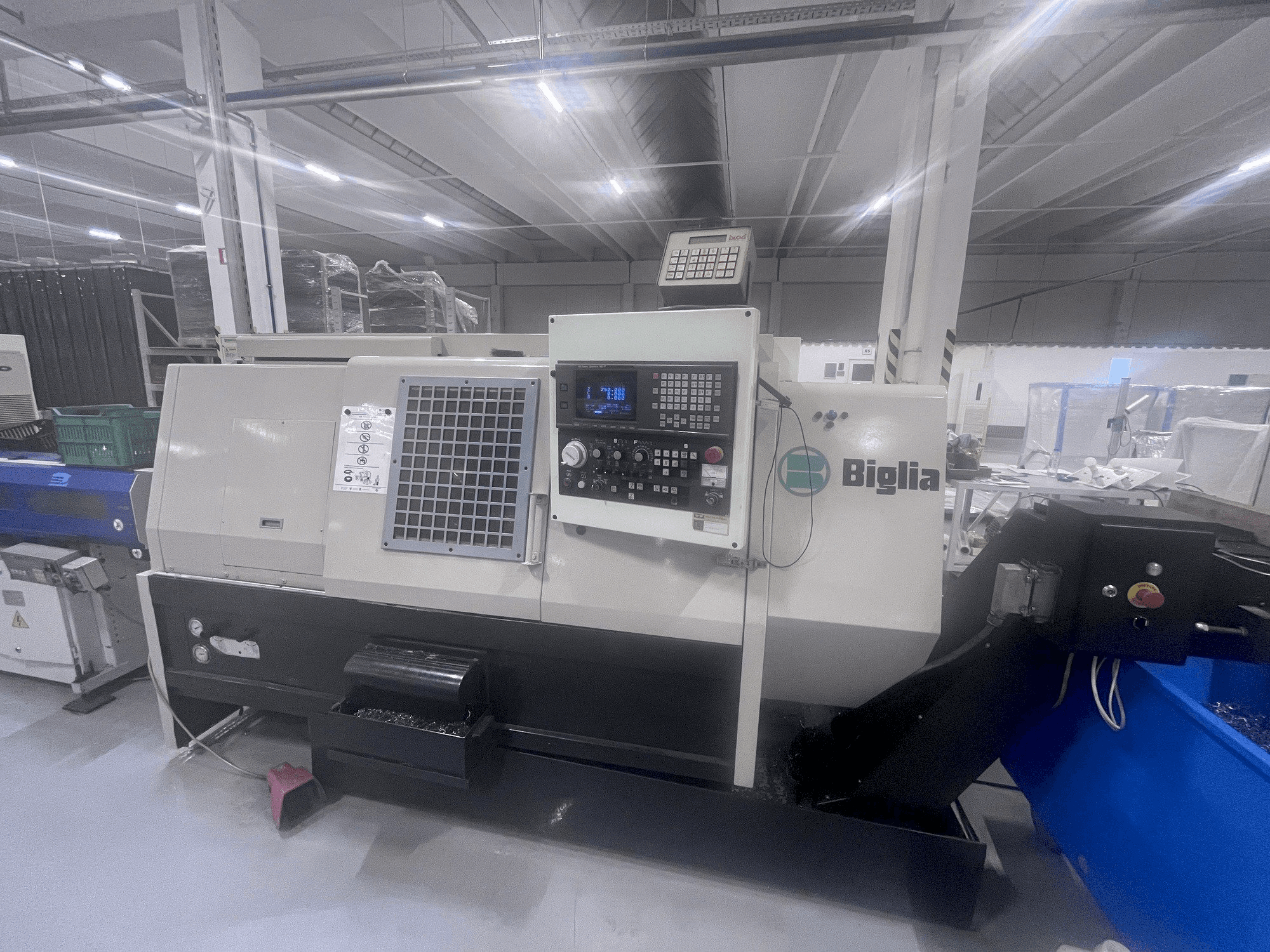

This BIGLIA B 501 MB (1997) Lathe machine was manufactured in 1997. This machine has a tank capacity of 200 liters and a pump flow rate of 100 liters per minute, driven by a pump motor with 0.5 kW power. Regarding its axis specifications, the x-axis has a travel distance of 210+5 mm and moves at a speed of 20 meters per minute, while the z-axis travels a distance of 500+10 mm at the same speed. Contact us anytime for further information.
Übersicht
- Hersteller: Biglia
- jahr: 1997
- MODELL: B 501 MB
- anwendungstyp: Drehen
- Standort: Bulgarien
- maschinentyp: Dreh-Fräszentrum
Technische Daten - Biglia B 501 MB
Maße
- Maschinentiefe: 4000 mm
- Maschinenhöhe: 1660 mm
- Maschinengewicht: 4700 kg
Bewegung
- X-Achsverfahrweg: 210 mm
- Z-Achsverfahrweg: 500 mm
Technische Spezifikation
- Anzahl der Werkzeuge: 6
- Spindeldrehzahl: 4000 RPM
Zusätzliche Informationen
Additional equipment
- The bar feeder is not included and not for sale.
Machine Benefits
Technical Machine Benefits
- Spindle nose: asa 6''
- Spindle hole: 80mm
- Maximum bar workable diameter: 54-68mm
- Maximum workable diameter for shooting: 250mm
- Maximum workable length: 500mm
- Maximum rotating diameter: 520mm
- Front bearing internal diameter: 110mm
- Self-centering diameter: 210-250mm
- Caliper group: din 6343
- Engine power: kw 11-15(50%)-22-26(50%)
Extra Information
- Turret type: bidirectional - External tool shank: 25 x 25 mm - Reamer tool shank: 32mm - Rotation time (1 position): 0.7sec - Powered tools: variable rotation range 50-3000rpm, engine power Kw 3.7(50%) - C axis controlled: type CS(direct), minimum programmable value 0.001°, fast speed 80rpm -Hydraulic tailstock: automatic quill travel 100mm, quill diameter 85mm, tip holder cone CM.4, automatic/manual positioning mm 510-440 - Tank capacity: 200l - Pump flow rate: 100 l/min - Pump motor power: 0.5Kw - Main spindle center height 1000mm
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
