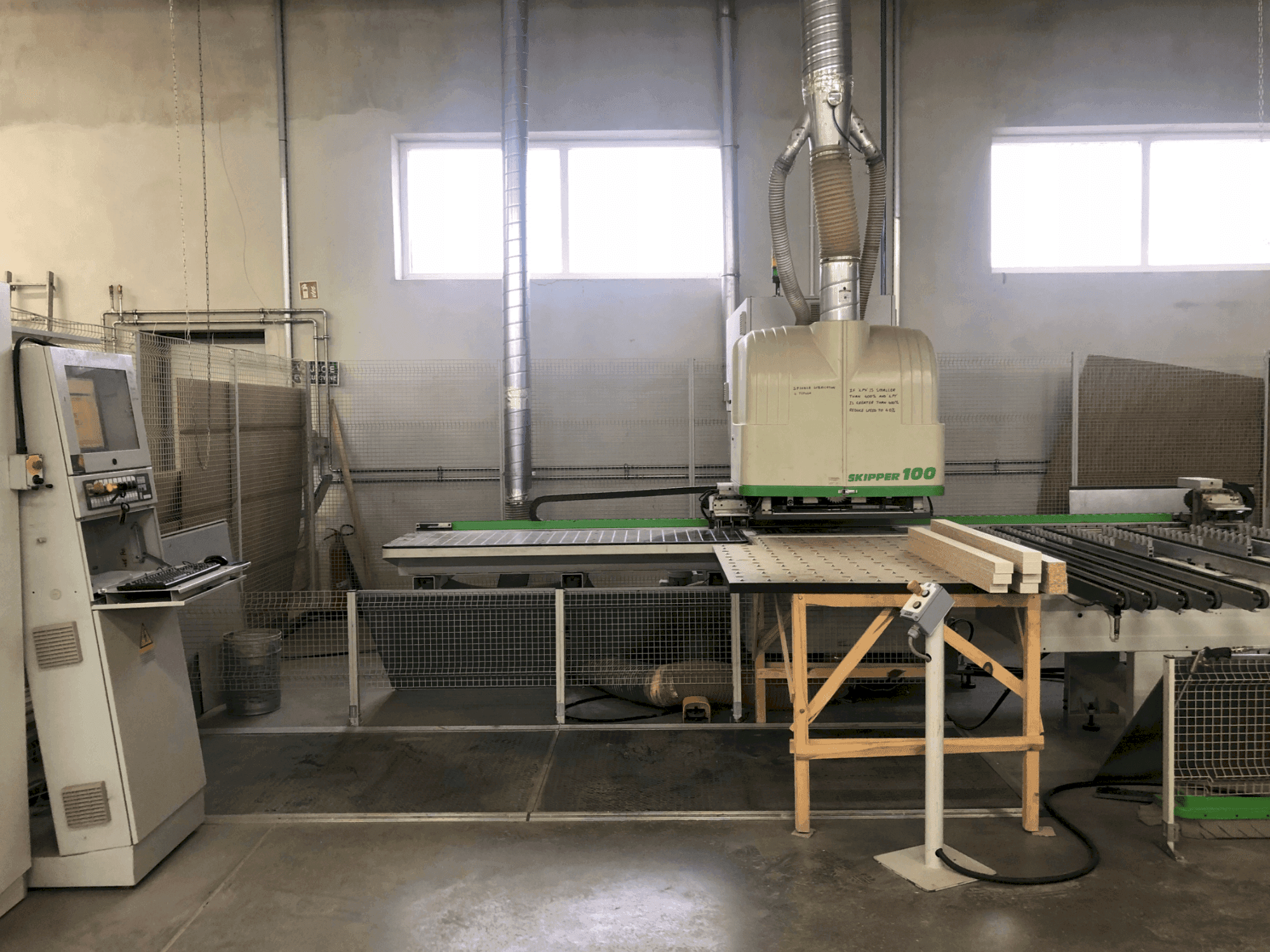

This 3-axis BIESSE SKIPPER 100 CNC processing centre was manufactured in 2009. Ideal for versatile CNC machining, it offers robust construction and precision. Consider the opportunity to buy this BIESSE SKIPPER 100 CNC processing centre. Contact us for more information.
Übersicht
- Hersteller: BIESSE
- jahr: 2009
- MODELL: SKIPPER 100
- anwendungstyp: CNC-Bearbeitung
- Standort: Polen
- maschinentyp: CNC-Bearbeitungszentrum
Technische Daten - BIESSE SKIPPER 100
Bewegung
- Anzahl der Achsen: 3
Technische Spezifikation
- Spindeldrehzahl: 18000 RPM
Zusätzliche Informationen
Additional equipment
- Roller infeed table
- Upper pressure table
- Lower pressure table
- Upper and lower working units
- Belt outfeed conveyor (right side)
- Electronic thickness control
- Automatic central lubrication
- CNC control system: XP 600 with Soft CN
- Safety system
Machine Benefits
Qualitative Machine Benefits
- Condition: well maintained and regularly serviced
Technical Machine Benefits
- Electrospindle type: hsk
- Injection unit power: 3. 5 kw
- Workpiece length: 90–3000 mm
- Workpiece width: 70–1000 mm
- Workpiece thickness: 8–60 mm
Extra Information
Dimensions of Machine (LxWxH) Working Range X Axis: Vertical Drilling: 0–3000 mm Horizontal Drilling in X and Y: 0–3000 mm Continuous Milling: 0–2500 mm Partial Milling: 0–3000 mm Continuous Grooving with Saw: 0–2500 mm Partial Grooving with Saw: 0–3000 mm Working Range Y Axis: Vertical Drilling: 0–1000 mm Vertical Drilling with System 32: 32–1000 mm Horizontal Drilling in X: 0–1000 mm Horizontal Drilling in Y: 90–1000 mm Milling: 0–950 mm Grooving with Saw: 112–1000 mm Working Range Z Axis: Material Thickness: 0–60 mm Tools Total Spindles: 78 Top Unit: 39 Bottom Unit: 39 Vertical Spindles: Total: 29 In X Direction: 19 In Y Direction: 10 Horizontal Spindles in X: Double Output: 4 Independent Horizontal Spindles: In X Direction: 2 In Y Direction: 2
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
