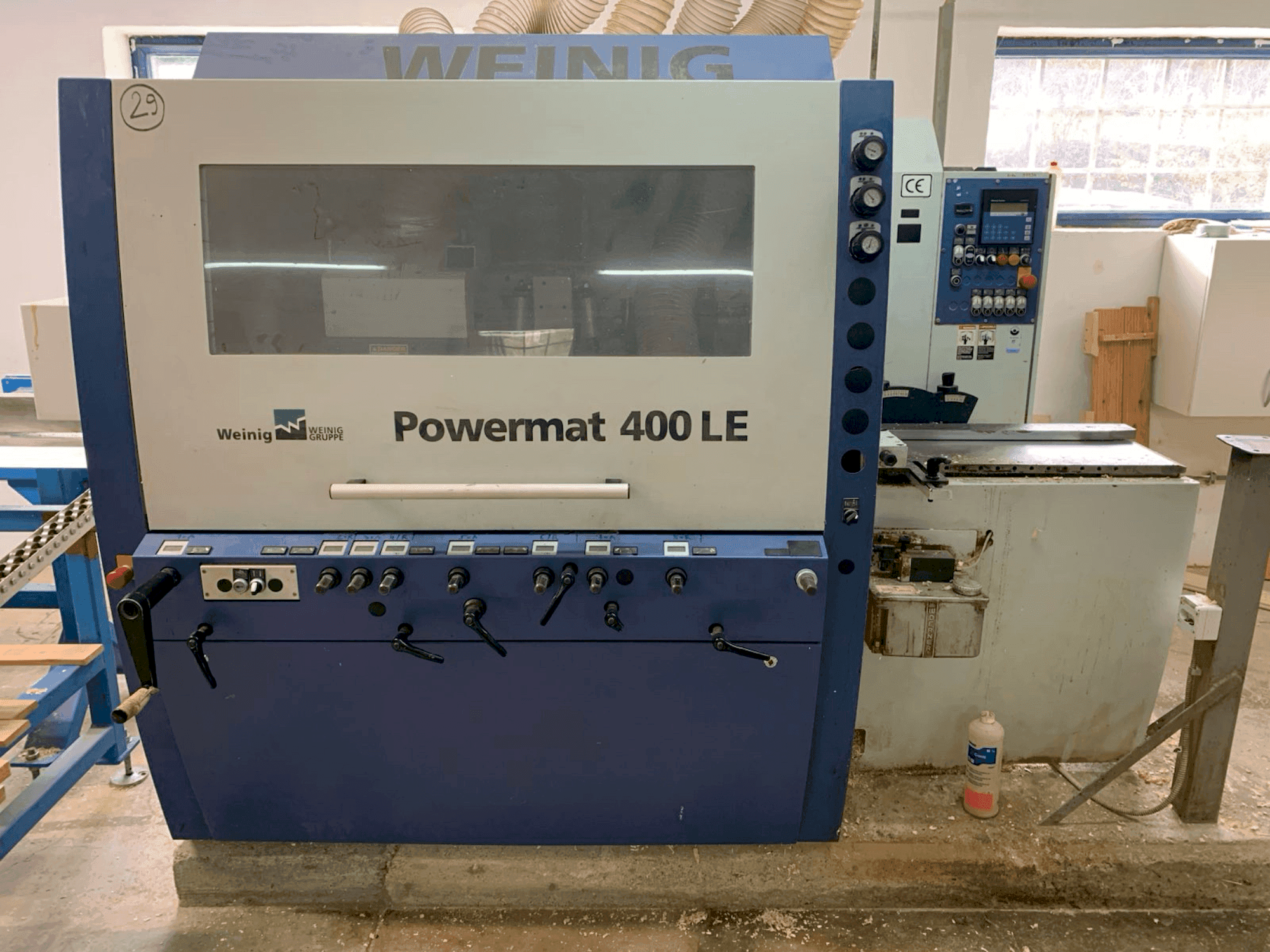

Front view of WEINIG / DIMTER POWERMAT 400LE machine

Vielen Dank für Ihren Besuch

Diese Maschine wurde kürzlich verkauft. Schauen Sie sich gerne unsere vergleichbaren Maschinen an oder kontaktieren Sie uns direkt.

Alle vergleichbaren Maschinen anzeigen

Alle Maschinen anzeigen

WEINIG / DIMTER POWERMAT 400LE

Foto galerie

WEINIG / DIMTER - POWERMAT 400LESI-PRO-WEI-2007-00001

Verkauft

Haben Sie weitere Fragen? Kontaktieren Sie uns!

Philipp Gubisch

+49 162 402 75 81

p.gubisch@gindumac.com

Über Whatsapp kontaktieren

GINDUMAC
Produkte
Holzbearbeitung
➤ Used WEINIG / DIMTER POWERMAT 400LE | Wood Moulder

In Originalsprache anzeigen

This 4-axis WEINIG POWERMAT 400LE wood moulder was manufactured in 2007. It features a robust PowerLock tool mounting system, adjustable feed speeds from 5–30 m/min, and motors up to 10 HP. Ideal for detailed woodworking with maximum tool diameters up to 200 mm and rebate depths up to 35 mm. If you are looking to get high-quality milling capabilities, consider the WEINIG POWERMAT 400LE machine we have for sale. Contact us for further details regarding this machine.

Übersicht

Hersteller: WEINIG / DIMTER
jahr: 2007
MODELL: POWERMAT 400LE
anwendungstyp: Sonstige Holzbearbeitungsmaschinen
Standort: Slowenien
maschinentyp: Andere (Holz)

Zusätzliche Informationen

Additional equipment

PowerLock mounting for all tool holders
Additional set of tool arbor rings: diameter 40 mm, length 170 mm
Electrical system for machine mechanization includes an infeed roller with a freewheel gearbox

Machine Benefits

Technical Machine Benefits

1st tool holder (first bottom tool holder): motor with brake: 5. 5 kw (7. 5 hp) powerlock system for tool mounting spindle speed: 6000 rpm tool diameter: 93–160 mm axial adjustment range: 5 mm grooving device with special knife z=2 and grooving cutter for 230 mm working width
2nd tool holder (first right tool holder): motor with brake (shared with left tool holder): 7. 5 kw (10 hp) powerlock system for tool mounting spindle speed: 6000 rpm tool diameter below table level: 40–55 mm maximum diameter for straight knife heads: 93–200 mm maximum rebate depth: 35 mm axial adjustment range: 55 mm
3rd tool holder (first left tool holder): shared motor with right tool holder powerlock system for tool mounting spindle speed: 6000 rpm tool diameter below table level: 40–55 mm maximum diameter for straight knife heads: 93–200 mm maximum rebate depth: 35 mm axial adjustment range: 55 mm
4th tool holder (first top tool holder): motor with brake: 7. 5 kw (10 hp) powerlock system for tool mounting spindle speed: 6000 rpm maximum tool diameter: 200 mm maximum rebate depth: 35 mm axial adjustment range: 40 mm adjustable and retractable pressure shoe
5th tool holder (second bottom tool holder): motor with brake: 5. 5 kw (7. 5 hp) powerlock system for tool mounting spindle speed: 6000 rpm maximum tool diameter: 200 mm maximum rebate depth: 15 mm axial adjustment range: 35 mm
Beveling unit: mounted at 45° angle on the last top tool holder motor: 1 kw (1. 3 hp) spindle speed: 10600 rpm tool diameter: 61 mm
Feed system: frequency-controlled feed motor: 3 kw (4 hp) adjustable speed: 5–30 m/min infeed rollers with patented system
Operating voltage: 400 v (range 380–420 v), 50 hz
Electrical equipment compliant with din vde 0113 and en 60204 standards
Operating hours counter

Extra Information

Machine still under power

*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
