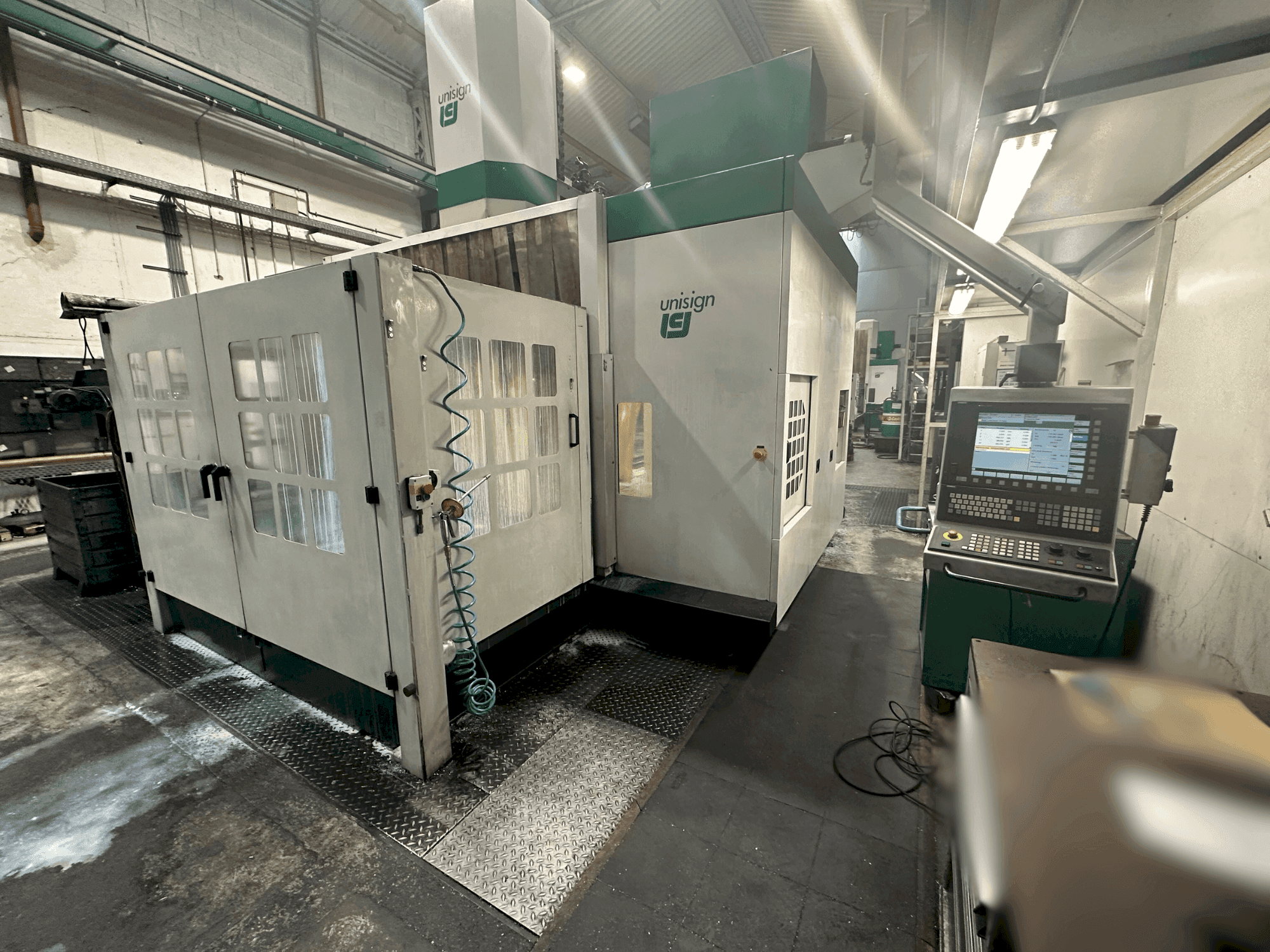

This Unisign UNIPORT 6000 was manufactured in 2005. A robust universal machining center, it features a large work area with X-axis travel of 3,000 mm and Y-axis travel of 2,500 mm. It boasts rapid traverse speeds up to 30,000 mm/min and a high-capacity tool magazine with 30 positions. The spindle supports up to 6,000 RPM and 36 kW power, making it ideal for heavy-duty machining. For more information about this universal machining center, please reach out to us.
Übersicht
- Hersteller: Unisign
- jahr: 2005
- MODELL: UNIPORT 6000
- anwendungstyp: Fräsen
- Standort: Deutschland
- maschinentyp: Universal-Bearbeitungszentrum
Technische Daten - Unisign UNIPORT 6000
Maße
- Maschinentiefe: 8000 mm
- Maschinenhöhe: 4400 mm
- Maschinengewicht: 45000 kg
- Tischlänge: 2000 mm
- Tischbelastung: 1500 kg
- Tischbreite: 2170 mm
Bewegung
- X-Achsverfahrweg: 3000 mm
- Y-Achsverfahrweg: 2500 mm
- Z-Achsverfahrweg: 1000 mm
Technische Spezifikation
- Anzahl der Werkzeuge: 30
- Spindelleistung: 36 kW
- Spindeldrehzahl: 6000 RPM
- Werkzeugaufnahme: HSK 100
Zusätzliche Informationen
Additional equipment
- Switch cabinet: 98276h /Program active: 51778h/ Spindle, feed or tool change: 12808h /Spindle and feed without tool change: 10690h
Machine Benefits
Qualitative Machine Benefits
- Positioning accuracy: ±0. 001° (c-axis drive)
- Repeatability: ±0. 0005° (c-axis drive)
- Measurement system: direct (presumably rod type)
- Maximum speed: 10 min⁻¹
Technical Machine Benefits
- Max torque: 720 nm
- Max drilling pressure: 16000 n
- Tool change time: 10 seconds
- Positioning tolerance: ±12 µm
- Repeatability: ±8 µm
- Electrical connection: 400 v / 3 ph / 50 hz
- Power consumption: 55 kva
- Compressed air: 6 bar, 20 l/min
- Interference circle: 2500 mm
- Max. Load on the faceplate: 10 tons
Extra Information
Turning package on Uniport 6000, consisting of: Vertical turning station 70 kW / 250 rpm / 33,000 Nm High-precision C-axis operation Turning attachment head with HSK 100 tool holder Pick-up station for turning attachment head Enclosure with access doors (open at the top), partition wall 2,000 mm faceplate® with 12 T-slots, 8 T-slots (half-length and star-shaped), and 4 locking slots for the claw box (claw box not included) Column longitudinal travel X: from 3,000 to 12,000 mm • Column passage width: from 1,500 to 3,000 mm • Cross slide travel Y: from 1,500 to 3,000 mm 0 0 0 m m • Table width: from 1,170 to 2,670 mm • Column clearance: 1 , 1 0 0 or 1 , 3 0 0 m m • Spindle slide stroke Z: 8 0 0 or 1 , 0 0 0 m m
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
