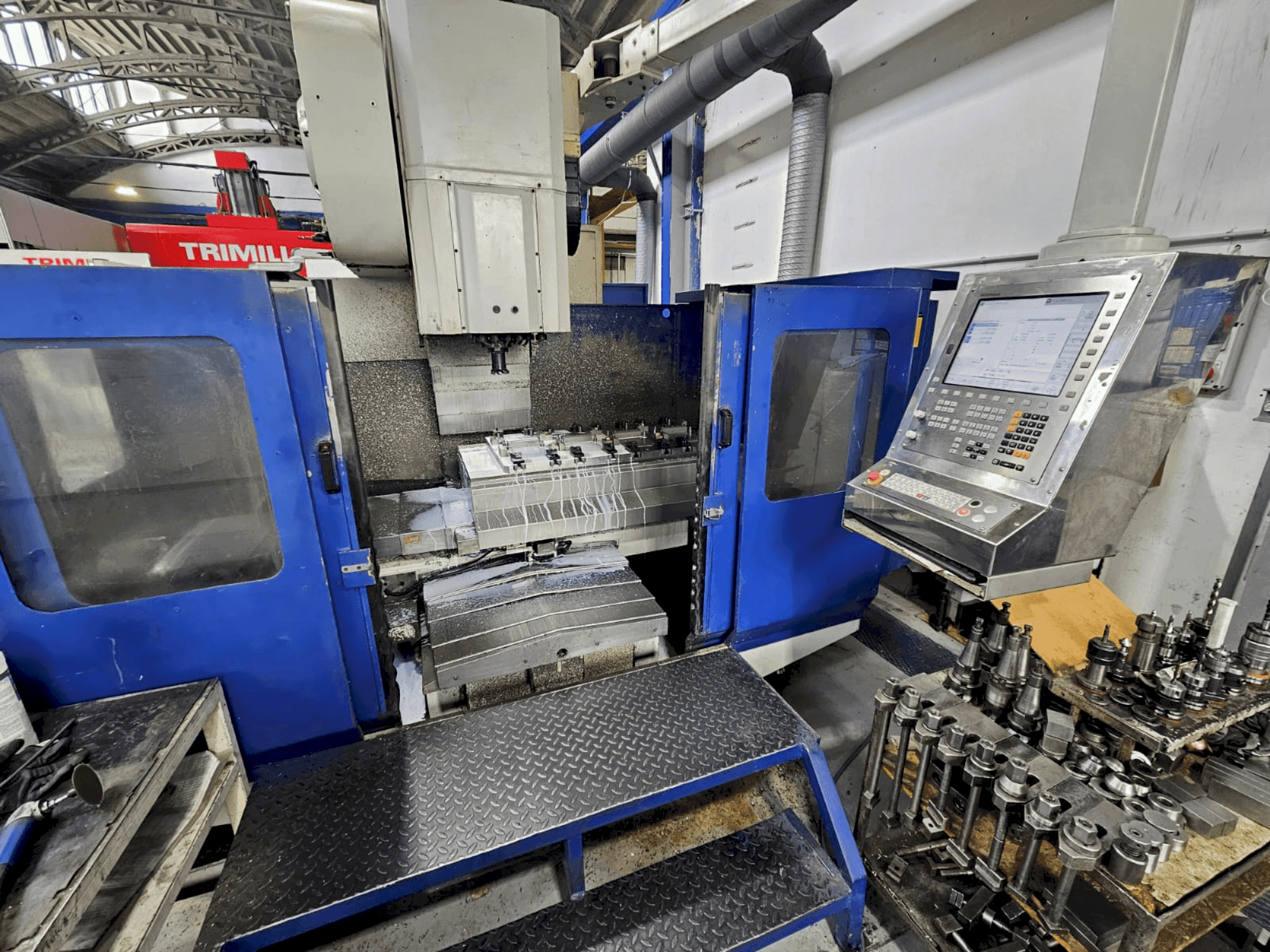

Sigma - EK 110/50HR-MIL-SIG-1985-00001

Additional equipment

• Tool Magazine: Type: Random with Fixed Position Double Clamps ISO 50 DIN 69871-A
• Tool Capacity: 40 tools
• Max Tool Diameter (with adjacent tools): 120 mm / Max Tool Length: 200 mm / Max Tool Weight: 20 kg
• Tool Change Time: Tool-to-Tool Time: 5 sec / Chip-to-Chip Time: 11 sec
• Connected Load: 36 kW / Coolant Pump Capacity: 250 l/min / Coolant Tank Capacity: 320 l
• Hydraulic Tank Capacity: 80 l / Compressed Air Consumption: 0.1 m³/h / Compressed Air Connection: 0.50-0.60 Mpa
• Spindle and Drive: Spindle Nose/Table Distance (min/max): 770 mm / Spindle Axis/Guides Distance (with telescopic cover): 715 mm

Machine Benefits

Qualitative Machine Benefits

• High precision and accuracy due to advanced optical measurement system and siemens controllers.

Technical Machine Benefits

• Cutting performance: material: steel 60-70 kg/mm² / maximum drilling diameter: 50 mm / maximum thread diameter: m40 / maximum chip removal rate (milling performance): 1000 cm³/min
• Measuring system: optical measurement system (heidenhain)
• T-slots: 5 x 18 x 125 mm, h12, medium h7
• Working feed (x/y/z axis): 0-10000 mm/min
• Rapid feed (x/y/z axis): 15000 mm/min
• Positioning accuracy: 0. 013 mm (x/y/z) / repetition accuracy: 0. 005 mm (x/y/z) / reverse error: 0. 002 mm (x/y/z)
• This machine was fully refurbished in 2015. It includes the itn 320 system, linear scales on all axes, and siemens controllers.
