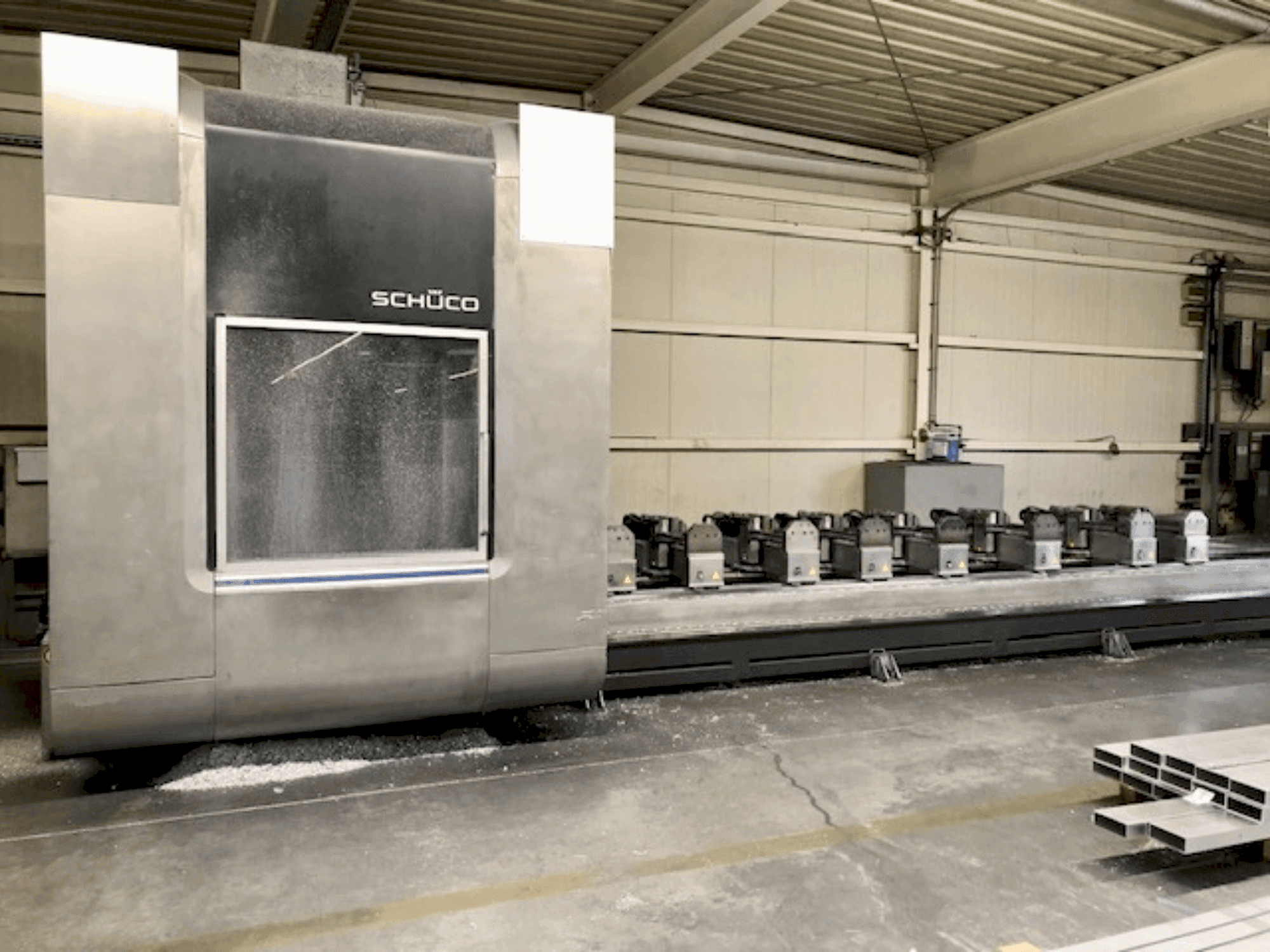

SCHÜCO - MFM DC 500DE-MIL-SCH-2009-00001

Additional equipment

• Automatic central lubrication: SPC driven
• Air conditioning unit
• Control panel: 19” touch TFT colour display
• Software: SchüCam
• 500 mm saw blade in a 5-axis spindle"
• also suitable for PVC profiles

Machine Benefits

Qualitative Machine Benefits

• Profile supports with quick release system
• Max. Cross section (w x h) / length – single bar processing: 400 x 300 / 7500 mm (for 200 mm tool length)
• Min. Cross section (w x h) / length – single bar processing: 30 x 30 / 300 mm (for 200 mm tool length)
• Max. Number of profiles per machine: up to 8 bars (depending on individual bar lengths)
• Number of fixed profile stops: 1
• Changing the clamps in 2 operations: automatic
• Finish: ral 9006 (white aluminium), ral 7016 (anthracite grey)
• A saw is integrated and each part can also be cut to size after processing.

Technical Machine Benefits

• Number of controlled nc axes: 14
• Processing length: 7500 mm
• Rotation of a axis: continuously from +110° to -110°
• Rotation of c axis: continuously from +220° to -220°
• Number of spaces in moving tool magazine: 16
• Number of special positions for tools: 2
• Automatic clamping
• Number of clamps: 8 - 12
• High-speed processing with a maximum speed of 24,000 rpm
• Capable of processing steel up to a wall thickness of 5 mm

Extra Information

Machine still under power
