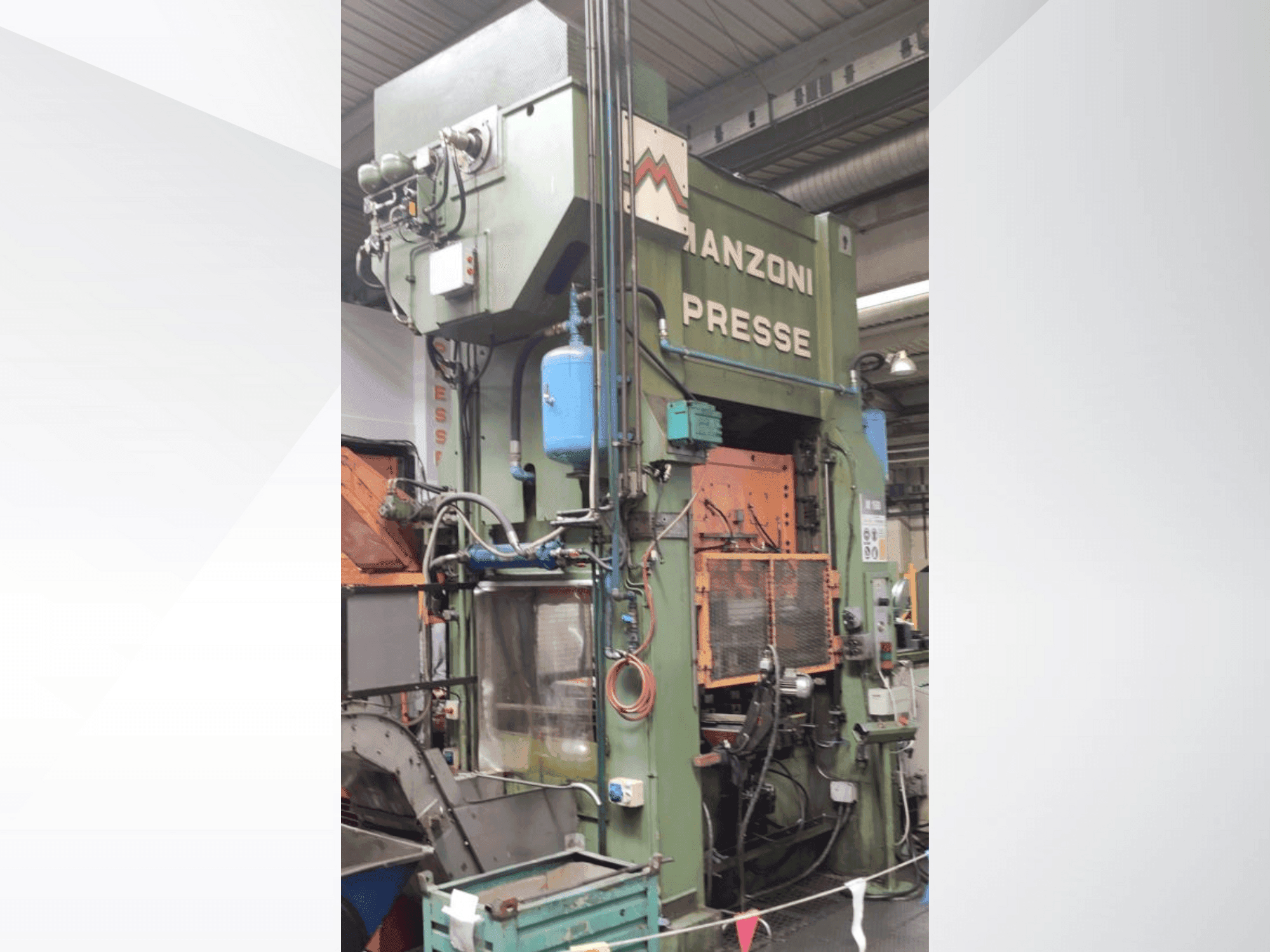

RAVNE PRESSES - Manzoni 160SI-STA-RAV-1992-00002
Haben Sie weitere Fragen? Kontaktieren Sie uns!
Philipp Gubisch
+49 162 402 75 81
p.gubisch@gindumac.com
- GINDUMAC
- Produkte
- Blechbearbeitungsmaschinen
- ➤ Used RAVNE PRESSES Manzoni 160 For Sale | gindumac.com
This stamping machine was manufactured in 1992. It features a robust Eccentric H-frame, monoblock design with a press force of 1600 kN and a fixed stroke of 160 mm. The machine includes a magnetic conveyor for scraps, a quick die cart system, and a millutensil oiling system. Ideal for high-quality stamping capabilities, consider the RAVNE PRESSES Manzoni 160 machine we have for sale. Contact us for more information about this machine.
Übersicht
- Hersteller: RAVNE PRESSES
- jahr: 1992
- MODELL: Manzoni 160
- anwendungstyp: Stanzen
- Standort: Slowenien
- maschinentyp: Mechanische Stanzpresse
Technische Daten - RAVNE PRESSES Manzoni 160
Technische Spezifikation
- Max. Blechdicke: 4 mm
- Max. Hub: 160 mm
- Presskraft: 1600 Kn
Zusätzliche Informationen
Additional equipment
- Complete press line included
- Magnetic conveyor for scraps
- Quick die cart system
- Scissors for sheet cutting
- Millutensil oiling system
- Documentation and drawings are included
Machine Benefits
Qualitative Machine Benefits
- Uncoiling speed: 2 - 25 m/min
- Feeding speed: 2-96 m/min
- The stamping line is disassembled.
- The stamping line is disassembled.
Technical Machine Benefits
- Stroke rate: 30 – 120 /min
- Slide adjustment: 200 mm
- Slide dimensions: 1250 x 1000 mm
- Bed dimensions: 1350 x 1000 mm
- Shut height: 400 – 600 mm
- Side opening dimension: 800 mm
- Front opening dimension: 1250 mm
- Press force: 1600 kn
- Press design: eccentric h-frame, monoblock
- Number of pressure points: 2
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
