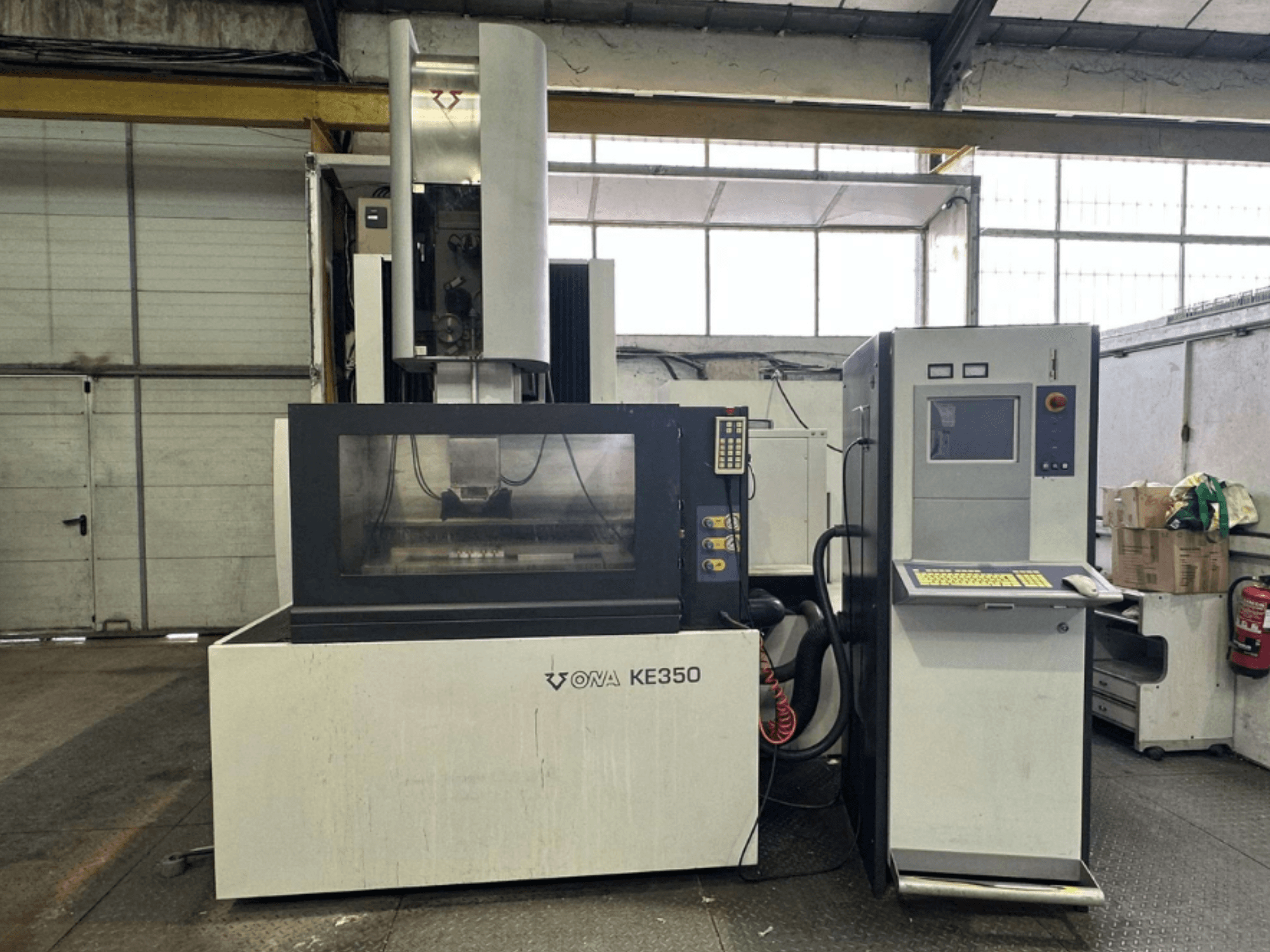

ONA - KE350ES-EDM-ONA-2002-00002

• U/V axis travel: 140 × 140 mm

• Maximum workpiece size (X, Y, Z): 1050 × 800 × 400 mm

• Maximum workpiece weight: 3,000 kg

• Taper cut angle (400 mm Z): 9° / 400 mm

• Maximum taper cut angle: 30° / 100 mm

• Wire spool types: DIN 100, DIN 125, DIN 160, DIN 200, DIN 355

• Guide type: closed diamond, high-precision, zero backlash

• Positioning resolution (X, Y, U, V): 0.001 mm

• Minimum programmable increment: 0.001 mm

• Wire cutter: yes

• Automatic wire threading: yes

Additional equipment

• Water chiller / temperature control: yes

• Water/sludge cleaning system: yes
