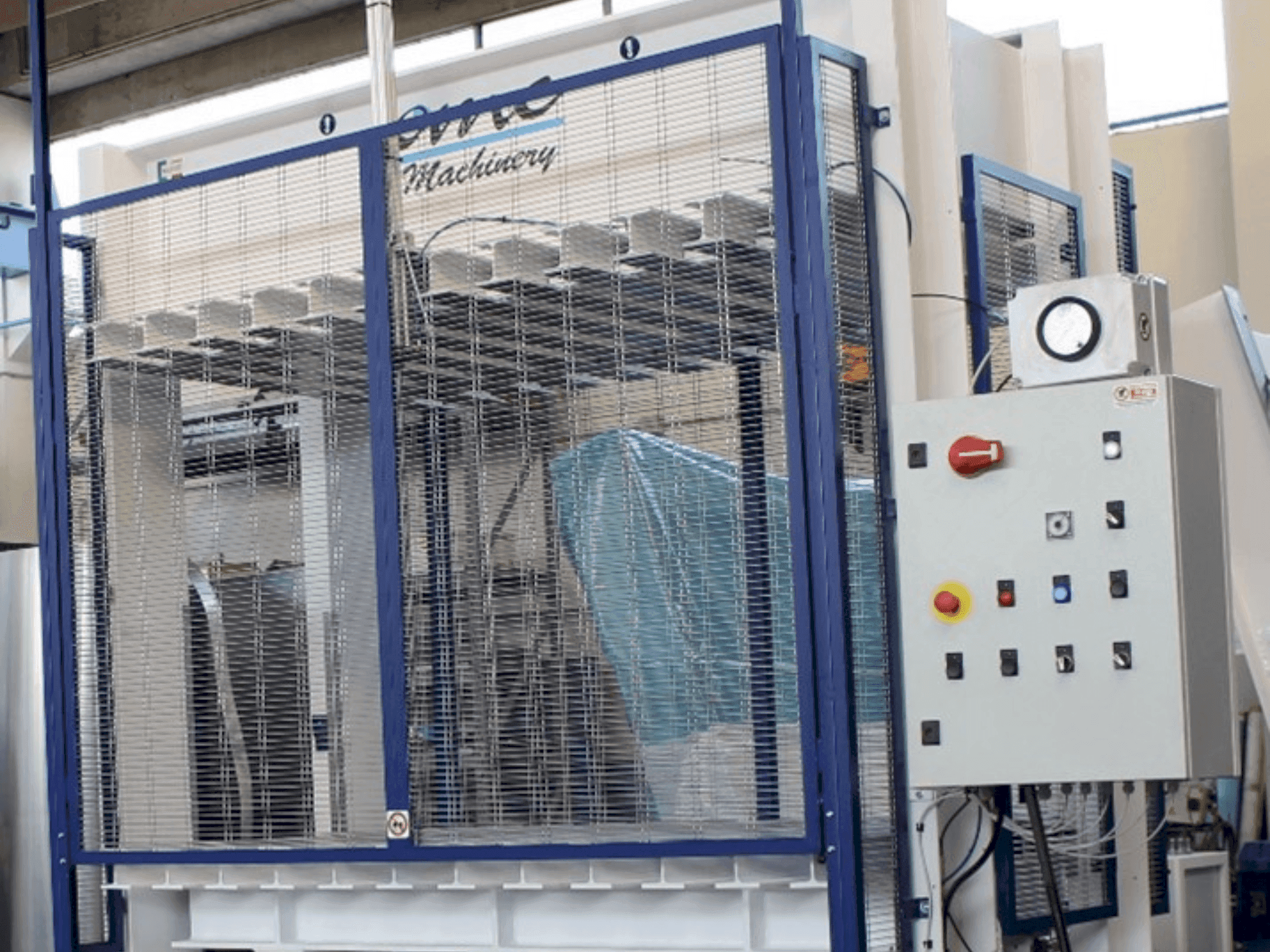

OMC - PPC/eIT-OTH-OMC-2015-00001

Machine Benefits

Technical Machine Benefits

• Plate size: 2000 x 1400 mm
• Press cylinders: 6 x Ø 85 mm
• Opening size: 1200 mm
• Stroke type: drive plate bottom (from bottom to top)
• Specific pressure: 4. 28 kg/cm²
• Connection: 400 v, 50 hz, 3 ph

Extra Information

Control Unit Control Panel: Basic equipment with electrical control module, double button, adjustable pressure gauge with pressure recovery Automatic Opening: Automatic opening with timer Protection Device Safety Features: Emergency call button Two-hand operation Manually closing guillotine guard at the front Metal protective grilles on the sides Aluminum foil connected to the generator CE Standard Compliance Press Structure Material: Assembled and welded steel structure for both fixed and moving platen Guide System: Rack and pinion guide system ensuring parallel movement during closing/opening Hydraulic System Components: Two-stage power unit with a pump for noise reduction and lubrication High flow rate pump for fast closing/opening and low flow rate press pump for high pressure Electric motor Control/Safety Valves: Maximum pressure valve Pressure retention valve (check valve) Low drain pressure valve (pre-drain valve) Oil drain magnetic valve Control Panel and Electrical System Features: Pressure gauge for setting working pressure with automatic pressure equalization system General on/off switch Automatic opening timer with switch for automatic/manual plate opening after work cycle
