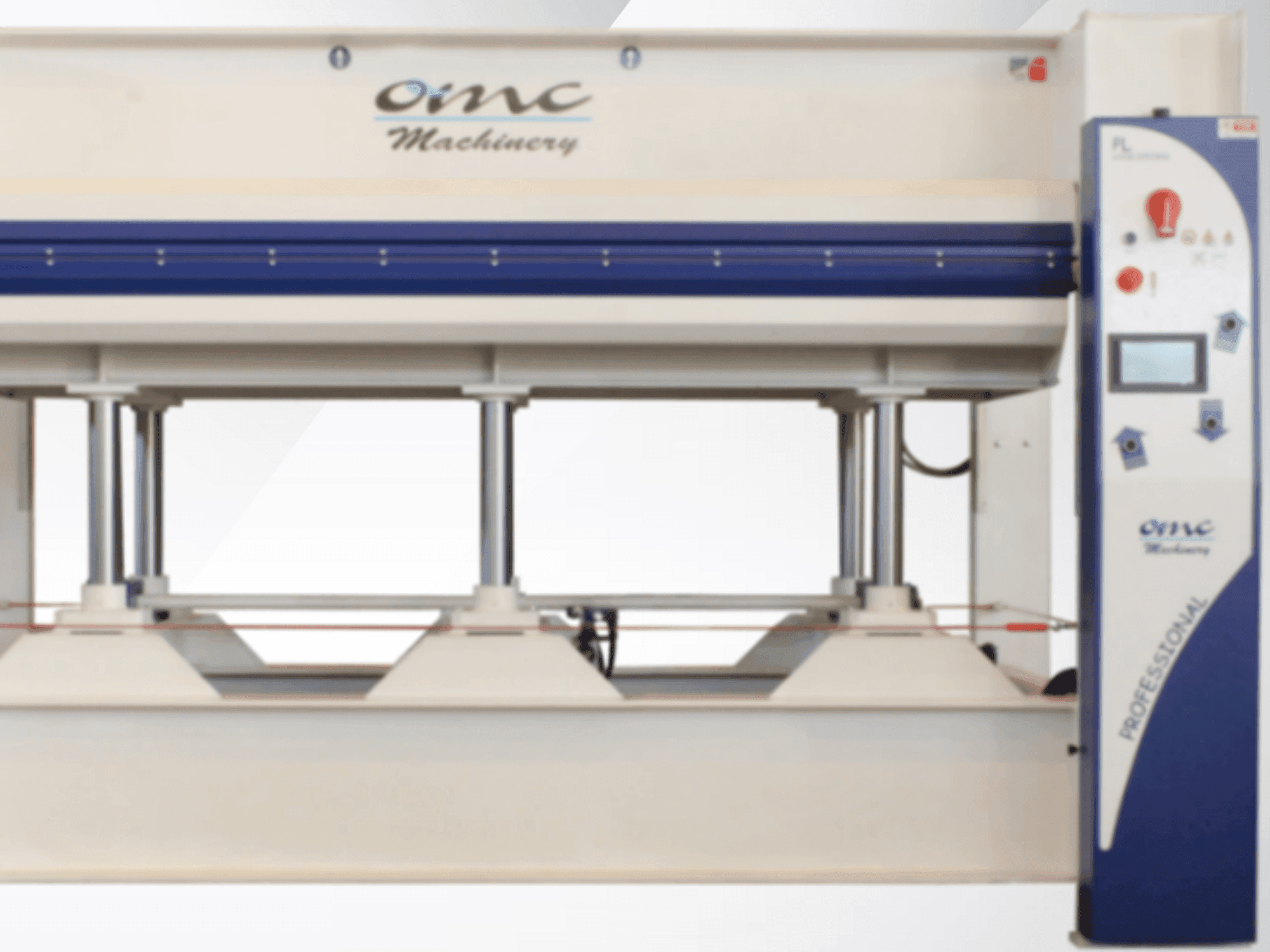

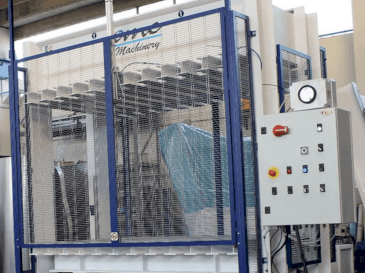

OMC - PL 90sIT-PRE-OMC-2025-00001

Machine Benefits

Technical Machine Benefits

• Plate size: 3000 x 1300 mm
• Stroke type: upward stroke (from bottom to top)
• Plate type: elkom electronic plates
• Press force: 90 tons on 80% of the surface
• Press cylinder: 6 x Ø 70 mm
• Specific pressure: 2. 05 kg/cm² on 100% of the surface, 2. 56 kg/cm² on 80% of the surface
• Loading and unloading side: 3000 mm
• Heating system: electronic 25. 4 kw, maximum temperature of 120°c
• Automatic opening with timer

Extra Information

Hydraulic System Two-stage unit with submersible pump for noise reduction and lubrication of rotating parts. Fast closing/opening pump (high flow rate - low pressure 35 l/min), press pump (low flow rate - high pressure 1.6 l/min). 2 HP Electric Motor Control/Safety Valves: Maximum pressure valve, pressure retention valve (check valve), valve for low drain pressure (pre-drain valve), and oil drain magnetic valve. Control Panel and Electrical System 2 Temperature regulators for setting the plate temperature Pressure gauge for pressure regulation with automatic pressure equalization system General on/off switch Two manual safety buttons for closing the press Timer for automatic opening Switch to select manual or automatic opening of the platens after the work cycle Off/on switch for upper and lower platen resistance Safety Systems Timed bimanual control for closing the press Safety rope on all four sides of the press Platen lock for maintenance Protective guards for the pinion and rack units Safety stickers and warning notices Operating and maintenance manual Complies with CE standards Press Structure Made of composite and welded steel Equipped with a rack and pinion guide system for perfect parallel movement during closing/opening of the plates. Elkom Heating Plate Electric plates with electric resistors Consist of a chipboard with an aluminum sheet mounting electric resistors Maximum Working Temperature: 120°C Maximum Thrust: 7 kg/cm²
