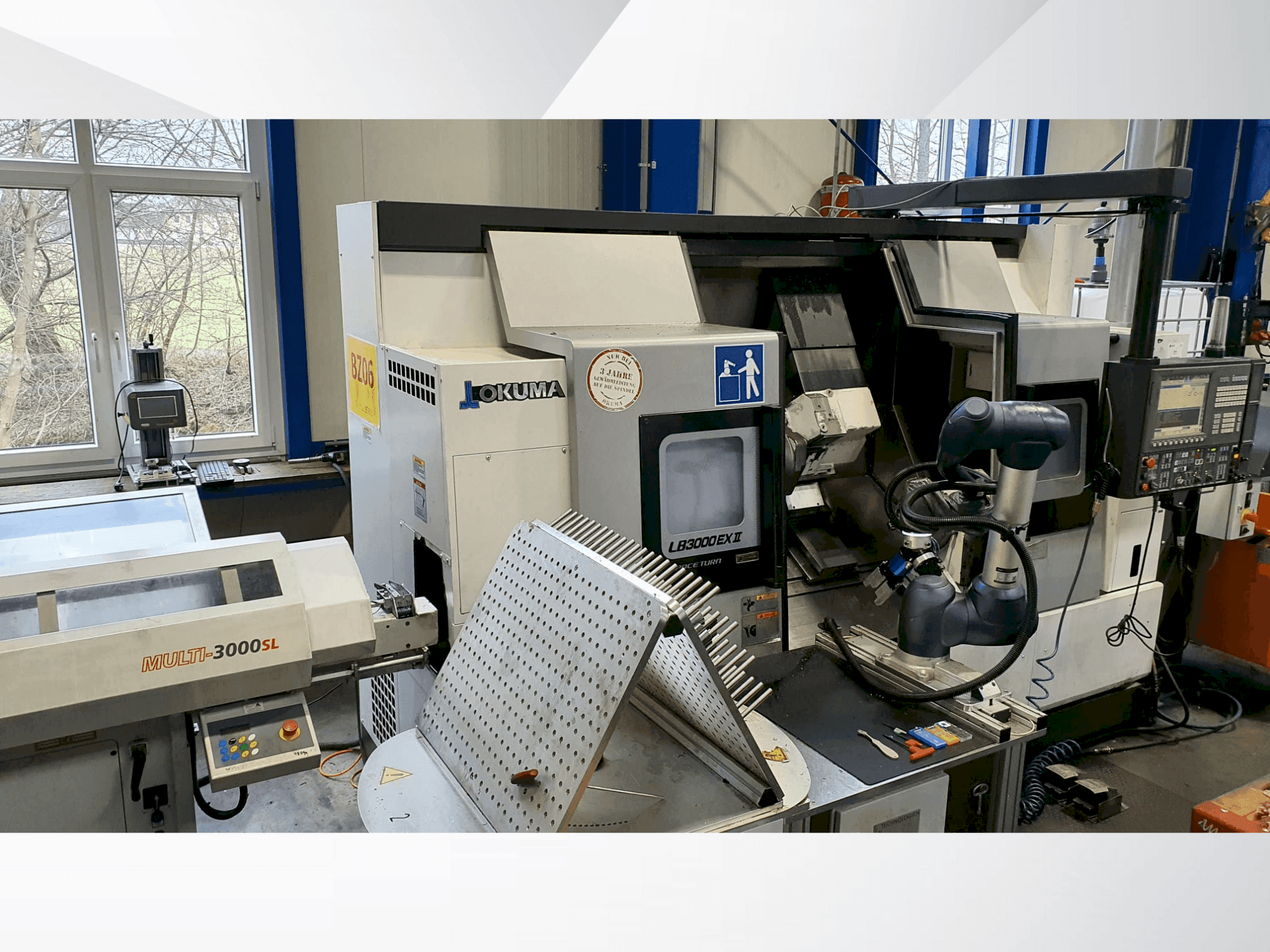

Okuma - LB3000 EX IIAT-TUR-OKU-2016-00001

Machine Benefits

Qualitative Machine Benefits

• Counter spindle (6. 000 rpm)
• Driven tools
• Y-axis (+70/-45mm)
• Bar loader included
• 26x tool holder are included, bmt 60

Technical Machine Benefits

• Dimensions without chip conveyor 3,380 x 2,040mm
• Rotation range up to 340 mm
• Swing diameter over slide / bed 470/580 mm
• Distance between centers or spindle noses w 1085mm
• Rapid traverse c-axis 200 min-1
• C-axis resolution 0. 001°
• W-axis travel 825mm
• Torque 350/ 700 nm
• Speed (min-1) 45-5,000 / 42-4,200
• Speed levels: 2 frequency-controlled

Extra Information

Machine still under power // robot is not included and also not for sale
