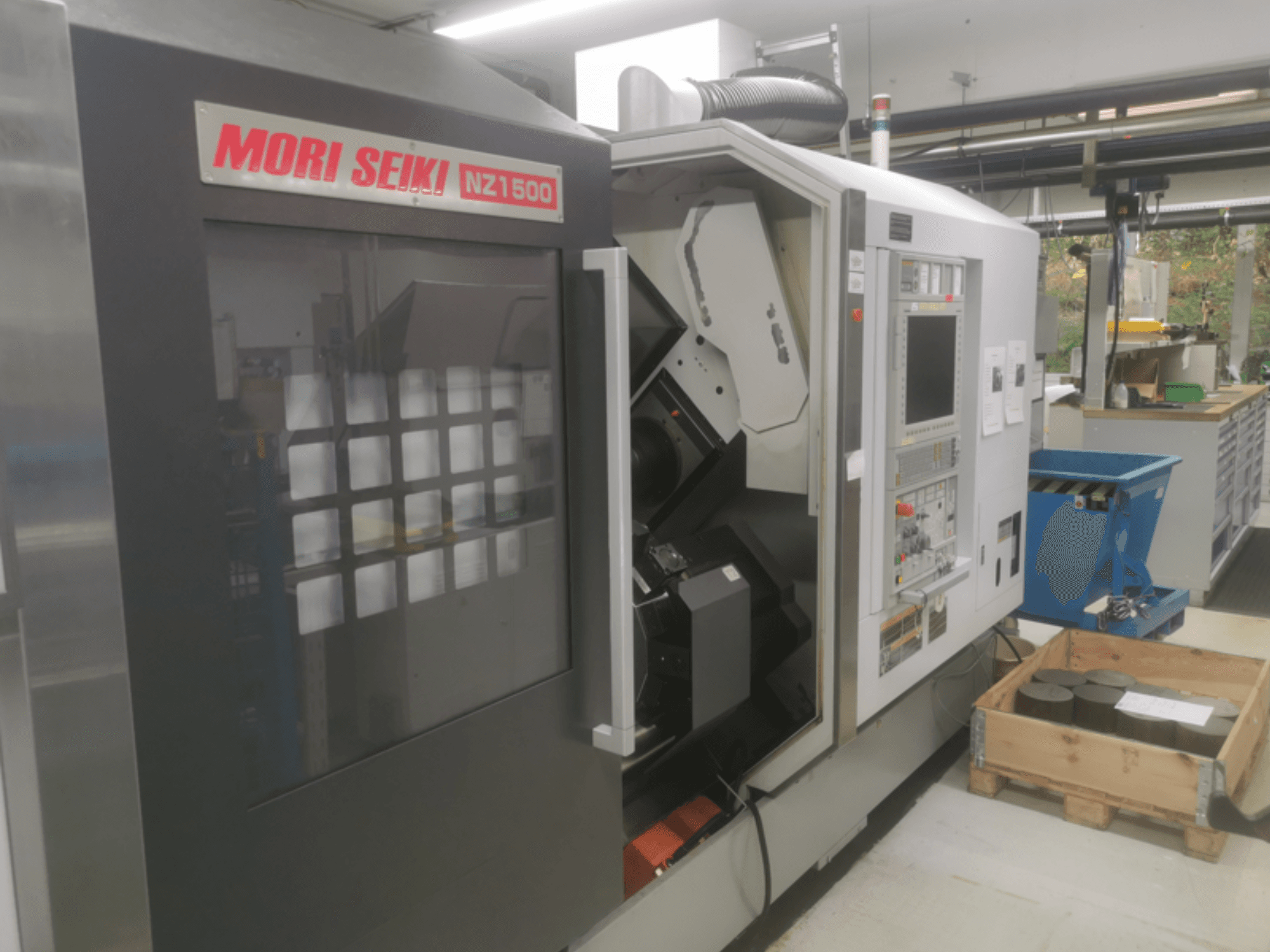

This MORI SEIKI NZ1500 was manufactured in 2010. It features an MSX-701 IV control system, dual spindles with a maximum speed of 6000 rpm, and two turrets with capacities of 16 positions each. The machine includes a bar feeder for materials up to 1200 mm and a high-pressure coolant system with a 500-liter tank. Consider the opportunity to buy this MORI SEIKI NZ1500 turn-mill centre. Contact us for more information about this machine.
Übersicht
- Hersteller: MORI SEIKI
- jahr: 2010
- MODELL: NZ1500
- Produktionsstunden: 7000
- anwendungstyp: Drehen
- Standort: Deutschland
- maschinentyp: Dreh-Fräszentrum
- Marke Steuergerät: FANUC
Technische Daten - MORI SEIKI NZ1500
Steuerung
- Steuerungsmarke: FANUC
- Steuerungsmodell: MSX-701 IV
Zusätzliche Informationen
Additional information
MSX-701 IV (Fanuc)
Programming via Mapps dialog and 3D monitoring
Main spindle and counter spindle max. speed 6000 rpm
Positions per turret: 16
Driven tools Turret 1: 6000-12000 rpm
Driven tools Turret 2: 6000 rpm
External tool holders BMT:
17x longitudinal and facing tool holders
1x double tool holder
1x special end tool holder
2x modular parting tool holders
1x angle tool holder
Bay bar holders BMT:
11x standard boring bar holders
1x double boring bar holder
1x boring bar blank holder
1x double boring bar holder left/right
Driven tool holders BMT:
6x Angle Drilling and Milling Attachment
8x Straight Drilling and Milling Attachments
Bar Feeder:
Max. Raw Material Length for Loading: 1200 mm
Material Reduction: 6 mm - 44 mm Diameter
Matching Rams in 4 Sizes
Steady Bezel for Mounting on the Turret: 4 mm - 64 mm Diameter
Measuring System:
Manual Tool Presetter, Main Spindle
Manual Tool Presetter, Sub-Spindle
Chip Removal: Chip Conveyor, Ejection on the Right
Clamping Device:
Kitagawa BB206A521 + SS1453K21 Clamping Device for Main or Sub-Spindle
Hainbuch Combination Collet Nova Axfix 52 without Collets
Coolant Supply:
Coolant System: 70 bar, 500 l Coolant Tank with 7 Different Pressure Stages, Belt Filter
Extraction System: Oil Mist Separator
Integrated, movable workpiece unloading system with gripper counter spindle
Weight: Approx. 8100 kg
*Es kann zu Abweichungen zwischen den angegebenen Daten und den tatsächlichen Werten kommen, diese müssen vom Vertriebsmitarbeiter bestätigt werden.
